Datavideo PTC-145

€2,214.00
€1,644.00 -26%
Tax included
Lowest price within the last 30 days: €1,644.00

AI tracking PTZ camera, 1/2.8 CMOS sensor, 20x optical zoom, 8x digital zoom, HDMI, 3G-SDI and streaming outputs, 3.5 mm microphone input, simultaneous streaming to two platforms

Out of Stock

Free shipping

Compare

wishlist

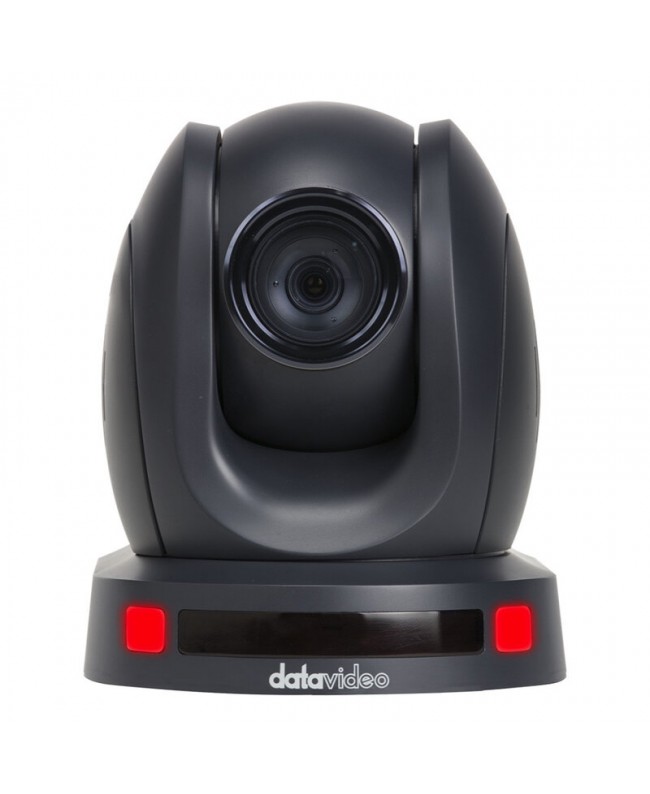

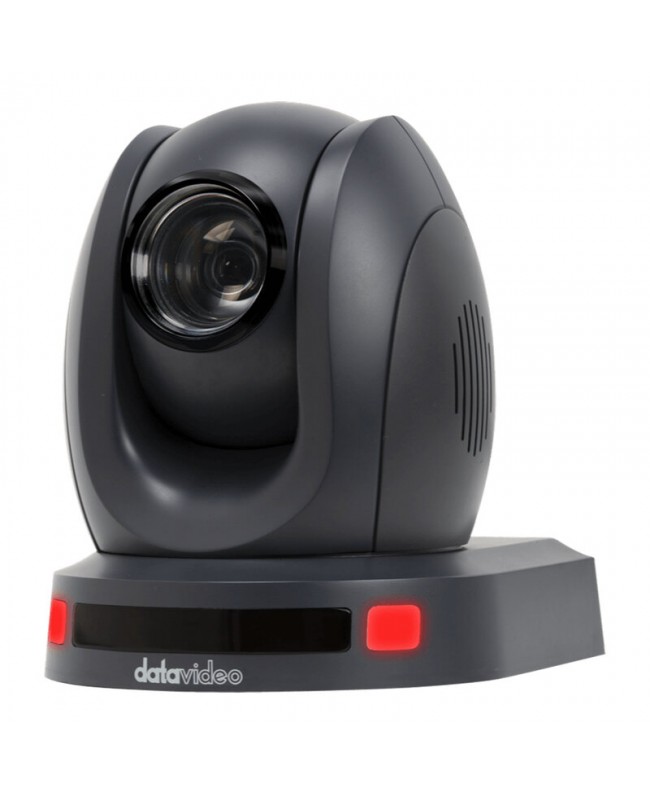

Datavideo PTC-145



PTZ camera equipped with AI autotracking, high quality 1/2.8 and #34; HD CMOS sensor, Full HD resolution 1920 x 1080 pixels 60 fps, HDMI, 3G-SDI and RJ-45 outputs with Po. E to easily connect to various devices. Note that all of these output options can be activated simultaneously, ensuring seamless integration into your setup.

The PTC-145 and #039;s 20x optical zoom and 8x digital zoom allow you to mount it close to or far from your subject and still get great, sharp shots. It supports advanced 3D digital noise reduction, even in less than perfect lighting conditions to always be able to shoot with adequate quality.

One of the most important features of this camera is its customized automatic tracking. If you are recording multiple people, you can designate one for automatic detection. Once connected to the camera, only the latter will be tracked, thus avoiding interference such as desks, people coming and going, large objects, etc. The integrated PID algorithm can detect the movement speed of the identified subject and automatically adjust the corresponding Pan, Tilt and Zoom speeds of the camera so that the movement of the lens is smooth, avoiding jerky movements or unexpected stops. There is also quick selection of full body / half body / close-up (via RMC-1AT remote control) and the S-shaped speed curve to make the camera and #039;s PTZ functions work smoothly and uninterruptedly offering an experience unprecedented visual.

With H.264/H.265 video compression and a built-in streaming encoder, the PTC-145 can encode up to two simultaneous streams to any cloud service. Furthermore, it is perfectly compatible with Datavideo and #039;s DVCloud service. This subscription service gives you the ability to send your stream to multiple destinations at the same time without having to have multiple hardware encoders. You can also record your production on the DVCloud platform in H.264 format and directly use this recording to upload it to your favorite content platform.

The audio compartment includes a line-in input and 3.5 mm microphone inputs for exceptional audio quality.

Finally, the PTC-145 can be controlled by RMC-180 MARK II and RMC-300A (up to 24) and via Web user interface.

  • Technical characteristics
  • Video format / resolution: 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25, 1080i 60 / 59.94 / 50, 720p 60 / 59.94 / 50
  • Image sensor: 1 / 2.8 high quality HD CMOS sensor
  • Focal length: f = 5.05 mm (wide) to 91.49 mm (tele)
  • F1.8 (wide) - F2.9 (tele)
  • Effective pixels (approx.): 2.07 Mpixels
  • S/N ratio: min. 50 dB
  • Min. illumination: 0.5 lux at (F1.8, AGC ON)
  • Electronic shutter: 1/30 s - 1/10,000 s
  • Zoom ratio: 20x optical zoom, 8x digital zoom
  • Iris control: auto / manual
  • Digital noise reductions: 3D
  • On-Screen Display (OSD): english, simplified chinese
  • White balance: auto, indoor, outdoor, manual, one push
  • AGC / gain control: yes
  • Mirror / flip image: yes
  • Focus mode: auto / manual
  • Panning / Tilting range: Pan 340°, Tilt +90° to -30°
  • Panning / tilting speed: Pan 0.1 - 60° /sec, Tilt 0.1 - 30° /sec
  • Preset: 255 positions
  • Field of view (horizontal, wide): 60°
  • Image compensation: backlight compensation

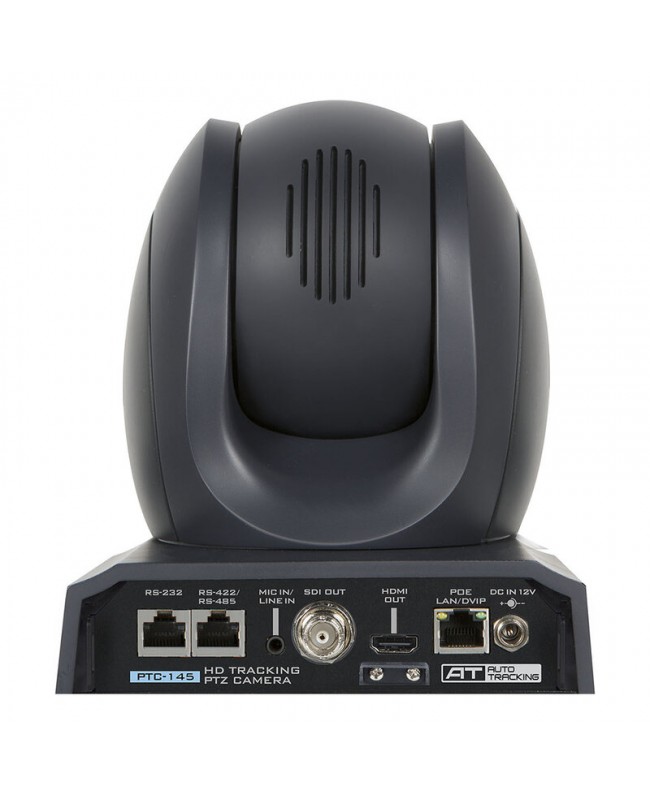

  • Video output: HDMI x 1, 3G-SDI x 1, RJ-45 PoE x1
  • Audio input: 3.5 mm line in
  • Tally LED: dual color (red, green)
  • Lens filter: M52.0 x 0.75 thread with UV protection
  • Remote control interface: IR, Web GUI, RS-422 / RS-232 / RS-485 (RJ45)
  • Video compression format: H.264 / H.265 / MJPEG
  • Audio compression format: AAC, G711
  • Audio bitrate: 96 kbps, 128 kbps, 256 kbps
  • HD IP interface: 10/100/1000M (RJ45)
  • Streaming protocols: RTSP, RTMP(S), ONVIF, SRT(caller and listener), multicast
  • First stream supported resolution: 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360
  • Second stream supported resolution: 720 x 480,640 x 480, 640 x 360, 320 x 240
  • Video bitrate: 32 kbps - 50 Mbps (single stream)
  • Encoding frame rate: 50 Hz 1 - 50 fps, 60 Hz 1 - 60 fps
  • Video bitrate mode: VBR, CBR
  • PoE: IEEE 802.3af
  • Control protocol: Pelco-D, Peldo-P, VISCA, VISCA over IP, DVIP, ONVIF
  • F/W update: via web UI
  • IR control: yes
  • Operating temp. range: 0 - 40 °C
  • Power: 12 VDC
  • Camera control unit: RMC-180 series / RMC-300 series / PTZ View Assist APP
  • Tripod mount: 1 / 4-20 UNC
  • Optional accessories: WM-1 / WM-10 / WM-11
  • Color: dark blue / white
  • Dimension (L x W x H): 156 x 184 x 186 mm
  • Weight: 1.6 kg

What's in the box

  • 1 X PTC-145 unit
  • 1 X IR remote controller
  • 1 X ceiling mount bracket-A
  • 1 X ceiling mount bracket -B
  • 6 X ceiling mount bracket screw M3*4mm
  • 1 X 12 VDC power adaptor
  • 1 X power cord
  • 1 X safety cable

DTV-7000-3070
