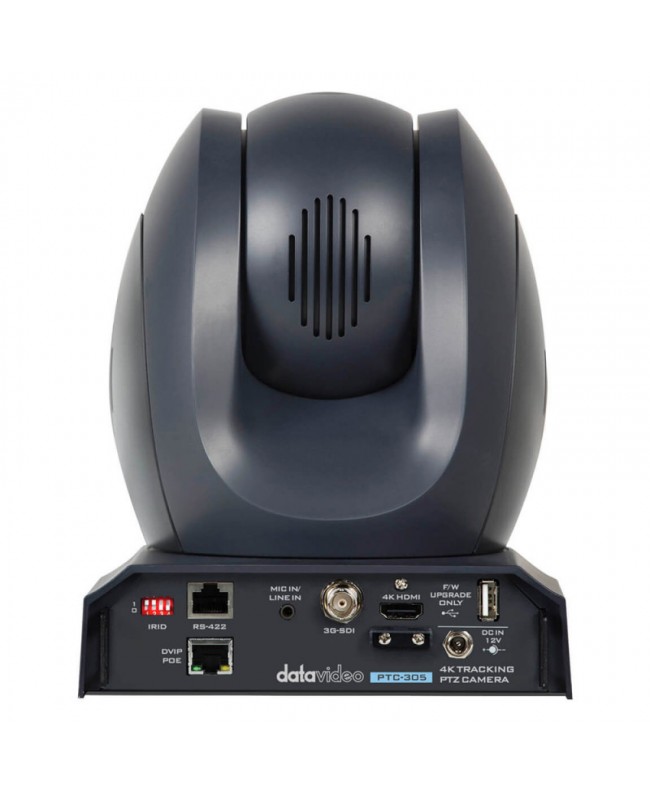

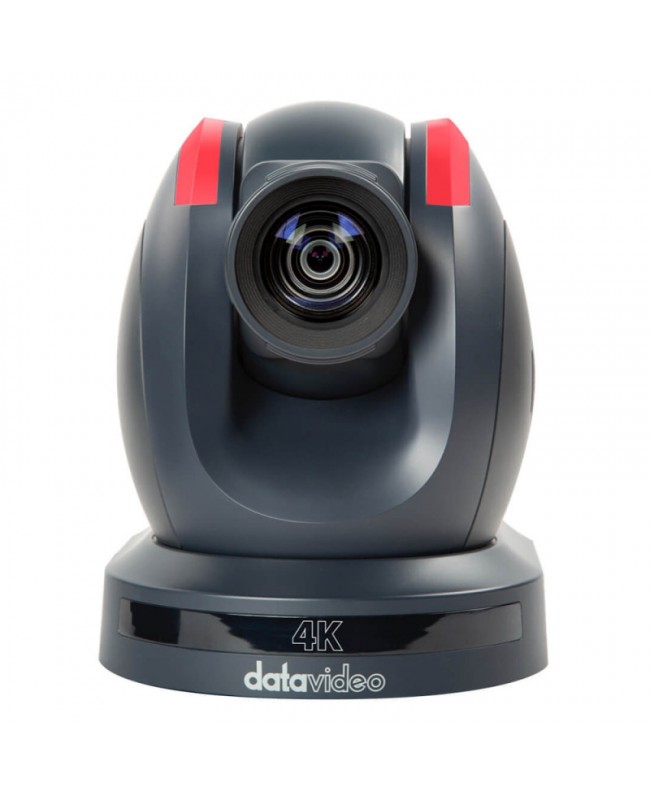

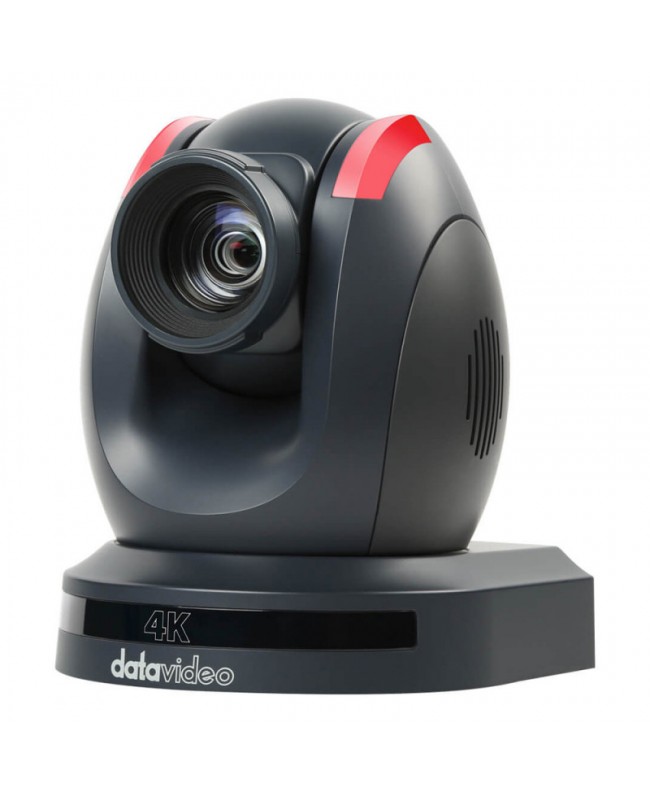

Datavideo PTC-305

Datavideo is introducing the 4K50/60p Auto tracking PTZ camera, PTC-305 can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), You. Tube and dv. Cloud.

You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1AT remote control and DVIP controllers (RMC-300A, RMC-180 MARK II and PTC View Assist).

In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include KMU-200, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Hybrid Video Production Solution.

If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

All of the PTC-305 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.

Support compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 1280x720p with 30fps compression. AAC, MP3 and PCM audio compression also supported.

The PTC-305 supports Po. E for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT-6 cable to power your PTC-305.

Control real-time pan, tilt, and zoom camera movements with Datavideo SHOWCAST 100, PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.

The PTC-305 is available in dark gray or white to remain inconspicuous in permanent setups.

• PTC-305 4K PTZ Camera with Auto Tracking
• Datavideo also provides extended models such as PTC-305T 4K HDBase. T and PTC-305NDI to meet the needs of different workflows.
• Simultaneous Outputs
• Connect your PTC-305 to multiple devices in your workflow for flexibility. All the outputs are active at the same time.
• Quick Access to Camera's Auto Tracking
• Custom Auto Object Tracking
• Smart PTZ Speed Adaptation
• Quick Access to Framing Options
• Simply Enable Auto Tracking with Your IR Remote Control
• RMC-1AT PTZ Controller. All you need is a remote control to set and control all four cameras and save the four presets.
• Broadcast Quality 4K Resolution
• With built-in 1/1.8 CMOS sensor, supports resolution up to 2160p 50/60.
• Superior Optical Performance
• The PTC-305 camera has 20x Optical Zoom and 16x Digital Zoom with the f1.58 and nbsp;wide open aperture.
• Low Noise in Low Light
• Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
• Multiple Simultaneous Video Outputs
• Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.
• Multiple Network Protocol with Dual Stream Function
• Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dv. Cloud as well.
• Supports H.264/H.265 Video Compression
• Power over Ethernet
• Tally Light
• Green and red lights tally to show the preview and program status for broadcast applications.
• Compatible with Various Controller
• RS-422, DVIP and Ethernet Camera Control
• RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.
• Dark or Light Body
