Datavideo PTC-600 PTZ Cameras
  • -26%
  • New

Datavideo PTC-600

€5,147.00
€3,830.00 -26%
Tax included
Lowest price within the last 30 days: €3,830.00

4K AI-powered PTZ camera, 30x optical zoom, auto-tracking, multiple output options, NDI | Hx3, advanced connectivity, FreeD function, 2 x XLR audio line inputs, black

Out of Stock

Free shipping

Compare

wishlist

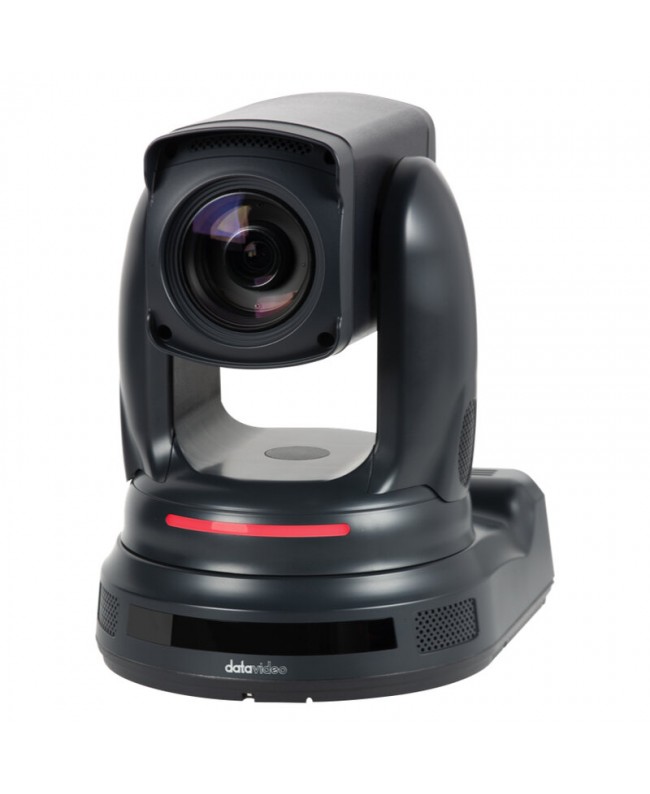

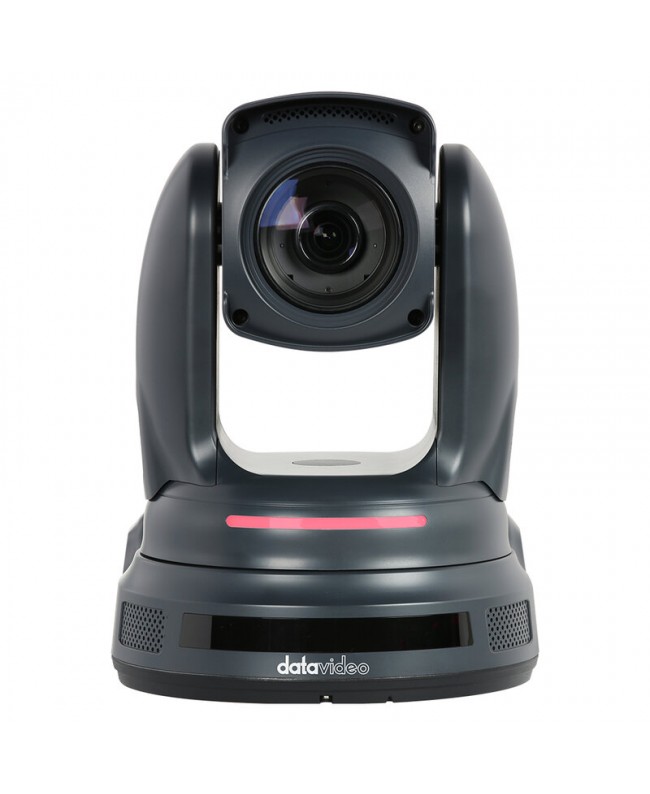

Datavideo PTC-600



Datavideo PTC-600 is a 4K PTZ camera with 30x optical zoom and AI-based auto-tracking that enables smooth movements and natural framing, improving the quality of live video productions without the need for manual intervention. Its elegant design and robustness make it ideal for professional use, where it guarantees high image quality even in low light conditions thanks to the 1/1.8 and #34; Sony CMOS sensor and noise reduction algorithms. Tilt movements range from -20° to 105° and Pan movements are on 340°.

PTC-600 supports simultaneous outputs, allowing connection to multiple devices at the same time via HDMI, 3G-SDI, RJ-45 (with Po. E) and USB-C interfaces. Its versatility makes it perfect for integration into complex workflows. In addition, it offers 2 XLR audio inputs and 3.5 mm mini-jack.

Remote control is possible via Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP and ONVIF protocols.

The PTZ is compatible with streaming protocols such as RTSP, RTMP(S), ONVIF, Multicast, SRT and NDI | Hx3, making it ideal for broadcasts live broadcast. Support for Po. E and #43; and #43; simplifies power supply, reducing cabling.

With a range of advanced features and superior image quality, the PTC-600 is a professional solution for high-end video production.

  • User benefits
  • Image quality
  • 30X optical zoom to capture distant subjects without loss of quality
  • Free. D function to improve compatibility with 3D rendering engines, making it easier to integrate the camera into virtual production environments
  • Auto-tracking based on AI algorithms
  • Supports HDMI, 3G-SDI, RJ-45 and USB-C
  • Supports NDI | Hx3 as streaming protocol
  • Professional XLR audio inputs
  • Po. E and #43; and #43; support
  • Areas of use
  • Large-scale events
  • Live performances (theatrical performances, etc.)
  • Corporate conferences
  • Seminars
  • Sports broadcasts
  • Technical characteristics
  • Video format / resolution

HDMI

  • 2160P 60 / 59.94 / 50 / 30 / 29.97 / 25 (2160p 60 / 59.94 / 50 YUV 4:2:2)
  • 1080P 60 / 59.94 / 50 / 30 / 29.97 / 25
  • 1080I 60 / 59.94 / 50
  • 720P 60 / 59.94 / 50

SDI

  • 1080P 60 / 59.94 / 50 / 30 / 29.97 / 25
  • 720P 60 / 59.94 / 50
  • Image sensor: Sony 1/1.8 CMOS
  • Effective pixels (approx.): 8.42 Mpixel
  • SNR: min. 55 dB
  • Min. illumination: 0.5 lux at (F1.8, AGC ON)
  • Electronic shutter: 1/30 s - 1/10,000 s
  • Zoom ratio: 30x optical, 4x digital zoom
  • Effective zoom ratio: 31.06x
  • Iris control: auto / manual
  • Digital noise reductions: 2D / 3D
  • On-screen display (OSD): English / simplified Chinese / traditional Chinese
  • White balance: auto, indoor, outdoor, OnePush, manual
  • AGC / gain control: yes
  • Mirror / flip image: yes
  • Focus mode: auto / manual / One Push
  • Panning / tilting range: Pan 340°, Tilt +105° to -20°
  • Preset: 255
  • Focal length: 30x, f = 6.91 - 214.64 mm, F1.35 - F4.6
  • Field of view (horizontal, wide): 60°
  • Image compensation: back light compensation

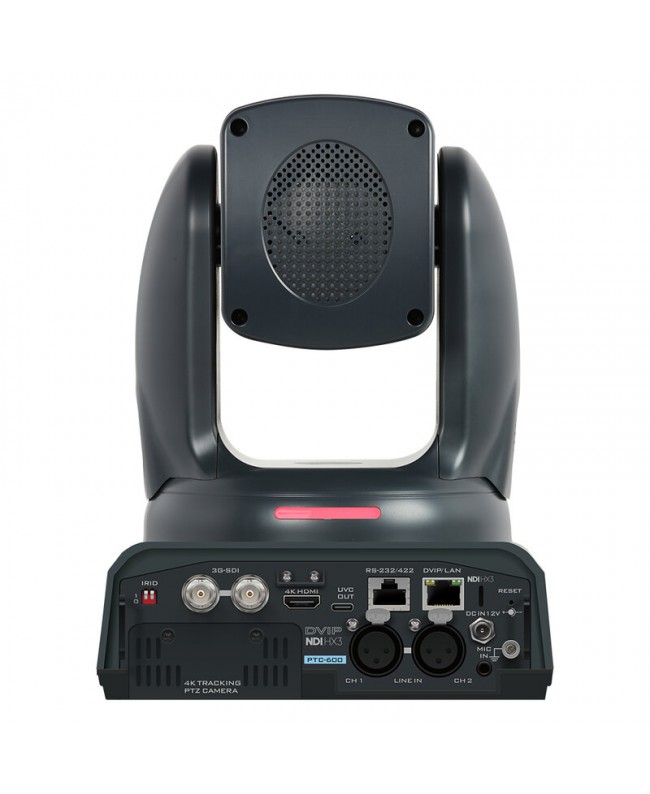

Video output

  • 1 X HDMI 2.0
  • 1 X 3G-SDI
  • 1 X 10/100/1000M RJ45 (802.3bt, PoE++)
  • 1 X UVC out (USB type C)
  • Audio input: 2 x XLR (line IN), 1 x 3.5 mm (MIC in)
  • Tally LED: yes
  • Control protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI
  • Remote control interface: IR, Web GUI, RS-422/RS-232, DVIP, NDI
  • Video compression format: H.264 / H.265 / MJPEG
  • Audio compression format: AAC
  • Audio bitrate: 96 kbps, 128 kbps, 256 kbps
  • Streaming protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3
  • First stream supported resolution: 3840 x 2160, 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360
  • Second stream supported resolution: 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 720 x 408, 640 x 360, 480 x 270, 320 x 240
  • Video bitrate: 32 kbps - 50 Mbps (single stream)
  • Video bitrate mode: VBR, CBR
  • Encoding frame rate: 50 Hz 1 - 50 fps, 60 Hz 1 - 60 fps
  • PoE: PoE++
  • F/W update: via Web UI or USB 3.0 (type C)
  • IR control: yes
  • Camera control unit: RMC-2P, RMC-180 series, RMC-300 series, PTZ View Assist APP
  • Tripod mount: 1/4-20 UNC
  • Operating temp. range: 0 - 40 °C
  • Power: 12 VDC
  • Color: black
  • Dimension (W x H x D): 18.7 x 25.3 x 23.3 cm
  • Weight: 3 kg

DTV-7000-3110
