Datavideo PTC-305GW PTZ Cameras
  • -26%
  • New

Datavideo PTC-305GW

€4,349.00
€3,235.00 -26%
Tax included
Lowest price within the last 30 days: €3,235.00

4K PTZ camera, 20x optical zoom and16x digital zoom, auto tracking, HDMI 2.0, 3G-SDI, 12G-SDI and RJ45 video outputs, white

Out of Stock

Free shipping

Compare

wishlist

Datavideo PTC-305GW

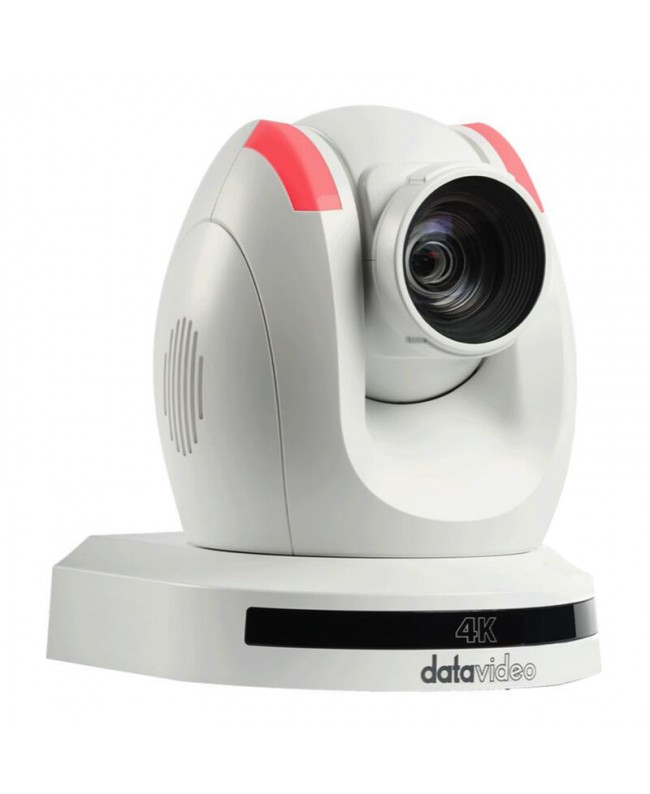

Datavideo PTC-305GW is a 4K PTZ camera designed for professional applications in the broadcasting and video production sector.

Thanks to the 1/1.8 and #34; Sony CMOS sensor and 8.42 Mpixel, it is able to return high-quality and very smooth images, even in low-light conditions. The zoom range includes 20x optical and 16x digital, with a 60° field of view in wide-angle mode. The video resolution reaches 4K at 60p with support for 12G-SDI and HDMI. The intelligent auto-tracking system automatically follows the moving subject, which is particularly useful for conferences and live events.

The camera also supports simultaneous streaming with RTMP(S), SRT, ONVIF and NDI protocols, facilitating transmission on platforms such as You. Tube and Facebook. Compatibility with ONVIF Profile S ensures interoperability with video surveillance and production systems. Advanced remote control is possible via IR, Web GUI, RS-422 / RS-232, DVIP and NDI. Po. E power supply reduces the number of cables required for installation, simplifying the setup.

Video outputs include HDMI 2.0, 3G-SDI, 12G-SDI and RJ45. Audio inputs include a 3.5 mm mini-jack with selection between MIC in and line in via Web UI. Supported control protocols are Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF and NDI. The camera allows streaming in H.264, H.265 and MJPEG with bitrates up to 50 Mbps.

Finally, the power supply is 12 VDC 3A with consumption of 26 W.

In essence, this camera represents a versatile and powerful solution for those looking for quality, reliability and automation in a single platform.

  • User benefits
  • 20X optical zoom, to capture details even from long distances
  • 1/1.8 and #34; Sony CMOS sensor that ensures quality images even in low-light conditions
  • Intelligent auto-tracking
  • Streaming simultaneous
  • ONVIF Profile S compatibility for integration with video surveillance systems
  • Versatile remote control
  • HDMI 2.0, 3G-SDI, 12G-SDI and RJ45 video outputs
  • Support for H.264, H.265 and MJPEG streaming
  • Areas of use
  • TV studios
  • Live events
  • Film productions
  • Technical characteristics
  • Video format / resolution

HDMI

  • 2160P 60 / 59.94 / 50 / 30 / 29.97 / 25
  • 1080P 60 / 59.94 / 50 / 30 / 29.97 / 25
  • 1080I 60 / 59.94 / 50
  • 720P 60 / 59.94 / 50
  • *2160P 60 / 59.94 / 50 YUV 4:2:2

SDI

  • 2160P 60 / 59.94 / 50 / 30 / 29.97 / 25
  • 1080P 60 / 59.94 / 50 / 30 / 29.97 / 25
  • 1080I 60 / 59.94 / 50
  • 720P 60 / 59.94 / 50
  • Image sensor: Sony 1/1.8 CMOS
  • Effective pixels (approx.): 8.42 Mpixel
  • SNR: min. 55 dB
  • Min. illumination: 0.5 lux at (F1.8, AGC ON)
  • Electronic shutter: 1/30 s - 1/10,000 s
  • Zoom ratio: 20x optical, 16x digital zoom
  • Effective zoom ratio: 18.66x
  • Iris control: auto / manual
  • Digital noise reductions: 3D
  • On-screen display (OSD): English / simplified Chinese / traditional Chinese
  • White balance: auto, indoor, outdoor, OnePush, manual, VAR
  • AGC / gain control: yes
  • Mirror / flip image: yes
  • Focus mode: auto / manual
  • Panning / tilting range: Pan 300°, Tilt +130° to -15°
  • Panning / tilting speed: Pan 0.876°/s - 43°/s, Tilt 0.693°/s - 21.32°/s
  • Preset: 255
  • Focal length: 20x, f = 6.7 - 125 mm, F1.58 - F3.95
  • Field of view (horizontal, wide): 60°
  • Image compensation: back light compensation

Video output

  • 1 X HDMI 2.0
  • 1 X 3G-SDI
  • 1 X 12G-SDI
  • 1 X 10/100/1000M RJ45 (PoE)
  • Audio input: 3.5 mm x 1 (MIC / line IN), switch from Web UI
  • Tally LED: yes
  • Control protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI
  • Remote control interface: IR, Web GUI, RS-422/RS-232, DVIP, NDI
  • Video compression format: H.264 / H.265 / MJPEG
  • Audio compression format: AAC, G711
  • Audio bitrate: 96 kbps, 128 kbps, 256 kbps
  • Streaming protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3 (1080p)
  • First stream supported resolution: 3840 x 2160, 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360
  • Second stream supported resolution: 720 x 480, 640 x 360, 480 x 270, 320 x 240
  • Video bitrate: 32 kbps - 50 Mbps (single stream)
  • Video bitrate mode: VBR, CBR
  • Encoding frame rate: 50 Hz 1 - 50 fps, 60 Hz 1 - 60 fps
  • PoE: IEEE 802.3at
  • F/W update: via Web UI or USB 2.0
  • IR control: yes
  • Camera control unit: RMC-2P, RMC-180 series, RMC-300 series, PTZ View Assist APP
  • Tripod mount: 1/4-20 UNC
  • Optional accessories: WM-1 / WM-10 / WM-11
  • Operating temp. range: 0 - 40 °C
  • Power: 12 VDC / 3 A (26 W)
  • Color: white
  • Dimension (W x H x D): 17.3 x 21.9 x 18.9 cm
  • Weight: 2.6 kg

What's in the box

  • 1 X PTC-305GW
  • 1 X IR remote controller
  • 1 X ceiling mount bracket-A
  • 1 X ceiling mount bracket -B
  • 6 X ceiling mount bracket screw M3 x 4 mm
  • 1 X 12 VDC power adaptor
  • 1 X safety cable

DTV-7000-3196
