Datavideo BDL-1601


€15,761.00
€11,727.00 -26%
Tax included
Lowest price within the last 30 days: €11,727.00

Bundle with HS-1600T, 3x PTC-140T and a sturdy rolling case for transport


Out of Stock

Free shipping


wishlist

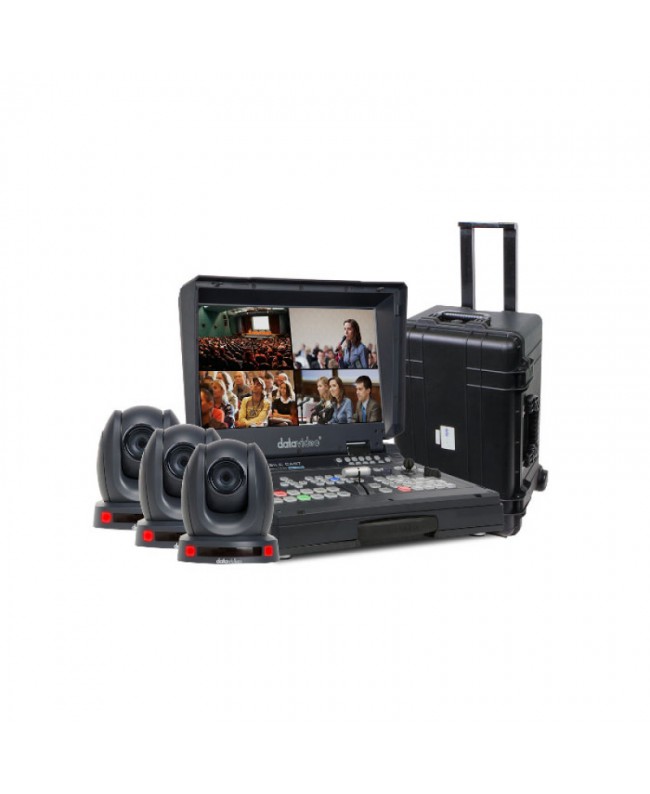

Datavideo BDL-1601



BDL-1601 is a complete production ready bundle with three cameras. The beating heart of this bundle is the HS-1600T, our Mobile. Cast workstation with built in streaming and recording. Three PTC-140T's are included and are perfect for any small to medium sized production. HC-800 is the carrying solution for this bundle, with room for three cameras, extra space for cables (not included) and the HS-1600T power supply. The HS-1600T brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable briefcase design and HDBase. T Technology. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like You. Tube and Facebook in no time. Camera connections typically require one cable for video, a second cable for power, and a third one for control. However, the HS-1600T is able to do all of the above using only one Ethernet cable for each camera with lengths up to 75 meters. This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations (like spots without nearby power outlets). The PTC-140T features 1/2.8 inch CMOS sensor, 1920 x 1080px Full HD resolution up to 60fps. The PTC-140T's 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots. Heavy duty case made from super strong polypropylene. Shock proof, vibration proof, dust proof and rust proof. Sealed for moisture protection. Handy pull-out handle and wheels for easy transporting. Laser cut foam inlay that precisely fits three PTC-140T cameras including cables and the HS-1600T power supply.

  • Video Standard: HD and SD
  • Video Format: 1080p 50/59.94/60 Hz
  • 1080I 50/59.94/60 Hz
  • 720P 50/59.94/60 Hz
  • 576I/p 50 Hz
  • 480I/p 59.94 Hz
  • Video Input: 3 x HDBaseT
  • 1 X HDMI
  • Computer Graphics Interface: 1 via HDMI (Lumakey)
  • Down-converted output: Yes
  • Video output: 3 x HDMI PGM
  • 1 X STREAM (RJ-45)
  • Audio input: 2x Balanced XLR
  • 1X Stereo RCA (L/R)
  • De-embedded Digital Audio
  • Audio output: 1x Stereo headphone
  • Embedded audio support: Support for 2 channels of embedded audio
  • Audio delay calibration: N/A
  • A+V switching: N/A
  • USK/DSK: 1x USK Lumakey
  • Picture in Picture (PiP): 1
  • Logo insertion: N/A
  • Built-in audio mixer: Master audio output control
  • Built-in monitor display: 17.3 HD TFT LED backlit, 1920 x 1080 pix
  • Built in intercom/tally: tallyto connected cameras
  • Streaming audio/video encoding: H.264 / AVC, Main/ High Profile
  • Configurable Bit-rate up to 10Mbps
  • AAC-LC
  • Configurable bit rate range from 32Kbps to 384Kbps
  • Sample rate: 48 kHz, 16bit
  • Streaming protocol: TS over TCP/UDP (unicast and multicast)
  • RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
  • RTMP/RTMPS (Publish)
  • Streaming settings control: Web browser UI for configuration and control Socket commands
  • Recording file system: FAT, exFAT, NTFS
  • Recording file format: MP4
  • Recording settings control: Web UI for system configuration and control
  • Special features: Built-in camera controller
  • Dimensions (L x W x H): 455 x 355 x 134 mm
  • Weight: 17.2 Lbs (7.8 kg), Reinforce Plastic Case
  • Power: DC 48V, 4.16A
  • Operating temp. range: 0~40 °C
  • Options: CB-60/61/62

DTV-9900-1601
