Relacart UR-222D 2-channel UHF Receiver 823-832 + 863-865 MHz Home
  • New

Relacart UR-222D 2-channel UHF Receiver 823-832 + 863-865 MHz

€202.00
Tax included

2-Channel multifrequency wireless receiver with high-quality diversity reception

Qty

Available upon request

Free shipping

Compare

wishlist

Relacart UR-222D 2-channel UHF Receiver 823-832 + 863-865 MHz



The UR-222D is an affordable and reliable UHF system for everyday use. The device works with 90 channel presets in 10 groups. 9 channels can be operated in parallel. True diversity receiver technology, pilot tone and adjustable noise squelch guarantee reliable transmission. Setup is quick and easy using auto-scan and infrared sync.

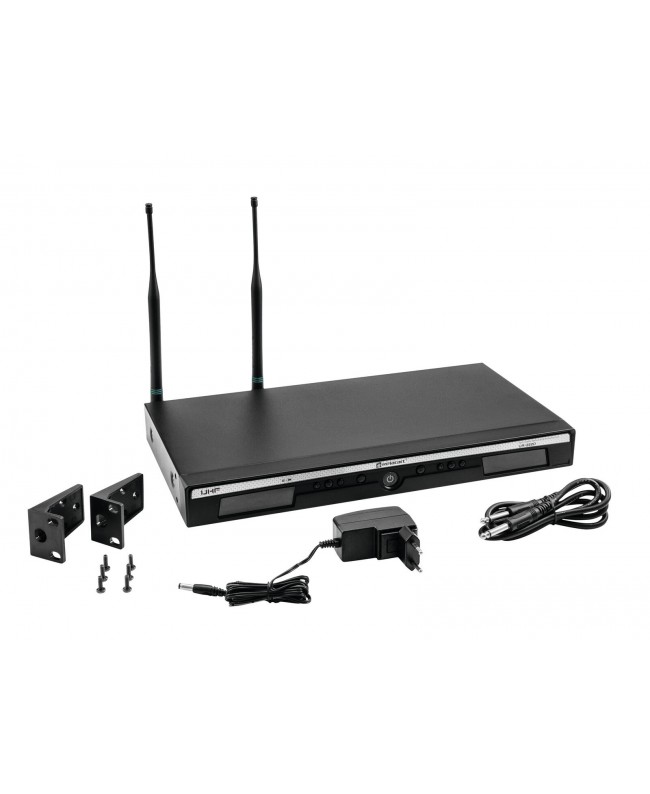

Scope of delivery

  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Pilot frequency squelch technology delete wireless RF interference
  • Automatic frequency scan (AFS) finds interference-free channels
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • 2 detachable BNC antennas allow for use with the R-14D antenna divider
  • Rugged metal housing
  • (19) 48.3 cm rack installation possible 1 U
  • Operating range up to 80m with line-of-sight
  • UHF 863 - 865 MHz License-free and approved in Europe
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • Up to 9 transmitters can be operated in parallel without interference
  • Multicolor LCD display
  • Charge status indicator
  • Desktop console housing
  • 1 x receiver
  • 1 x external mains adapter
  • 2 x antenna
  • 2 x mounting bracket
  • 6 x screw
  • 2 x jack cable
  • 1 x user manual
  • 1 x declaration of conformity
  • Type: Receiver
  • Power supply: 100-240 V AC, 50/60 Hz, 12V DC 1000 mA
  • Power consumption: 5 W
  • Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
  • Number of channels: 2
  • Frequency range: 45 - 18000 Hz
  • S/N ratio: 105 dB
  • Range: Range up to 80m with line-of-sight
  • Frequency band: UHF 863 - 865 MHz; UHF 823 - 832 MHz
  • Diversity: Antenna diversity
  • Switching bandwidth: 11 MHz
  • Frequency stability: +- 0.0005 %
  • Parallel mode: Max. 9 transmitter
  • Modulation: FM
  • Frequency selection: 90 switchable frequencies, In 10 groups with up to 10 preset frequencies each
  • Display type: Multicolor LCD display
  • Display: Channel , frequency , goup , RF signal level; AF audio level , antenna A/B , charge status indicator
  • Control elements: Navigation keys, menu, groundlift selector
  • Connections: Output: line via 2 x 3-pin XLR, Output: line via 2 x 6.3 mm plug (unbal.), Antenna via 2 x BNC (F) 8 V
  • Material: Metal
  • Color: Black
  • Housing design: Desktop console housing, (19) 48.3 cm rack installation possible 1 U
  • Dimensions: Width: 41 cm, Depth: 26 cm, Height: 4.6 cm
  • Weight: 2.32 kg

13055189

Data sheet

Channels
2 channels
Color
Black
