PSSO PXS TWO 2-channel True Diversity Receiver 470-510 MHz

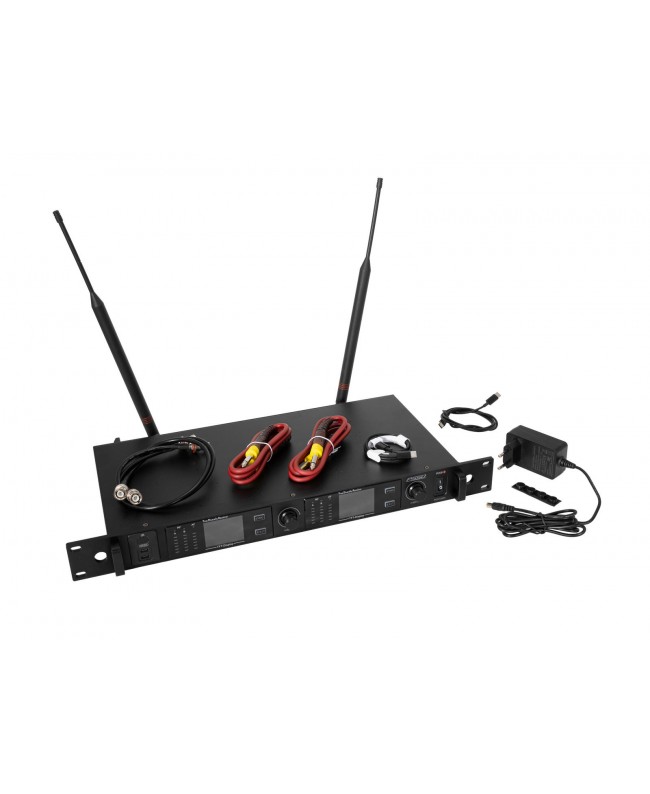

Scope of delivery

• 1 x receiver
• 2 x antenna
• 1 x external mains adapter
• 2 x USB cable
• 2 x jack cable
• 2 x BNC cable
• 4 x foot
• 1 x user manual
• 1 x declaration of conformity

• Type: Receiver
• Power supply: 100-240 V AC, 50/60 Hz, 12V DC 1500 mA
• Power consumption: 6 W
• Protection class: Protection class III
• Power connection: Mains input via coaxial power connector (M) power supply cord with AC adapter (provided)
• Number of channels: 1
• Frequency range: 30 - 19000 Hz
• S/N ratio: 112 dB
• THD: 0.5 % at 1 kHz
• Range: Range up to 200m
• Frequency band: UHF 470 - 510 MHz
• Diversity: True diversity
• Switching bandwidth: 40 MHz
• Frequency stability: +- 0.001 %
• Parallel mode: Max. 28 transmitter
• Frequency selection: Frequencies automatically scannable
• Housing color: Black
• Display type: Multicolor TFT display
• Display: Frequency , goup , channel , charge status indicator; RF signal level , AF audio level , antenna A/B , Mute
• Control elements: Power switch, encoder, exit, sync button
• Status LED: Power
• Connections: Input: antenna via 2 x BNC (F) 11.54 V, Output: antenna via 2 x BNC (F), Output: microphone via 2 x 6.3 mm plug (unbal.), Output: microphone via 2 x 3-pin XLR (M) mounting version
• Equalizer: 3-band tone control
• USB port: 2 x type C
• Material: Metal
• Mounting dimensions: 27 cm x
• Housing design: (19) 48.3 cm rack installation 1 U
• Dimensions: Width: 48.1 cm, Depth: 27 cm, Height: 4.5 cm
• Weight: 2.88 kg
• Dimensions: Length: 100 cm
