Antari DFX-PD4E-MKII Remotes for Effect Machines
  • -26%
  • New

Antari DFX-PD4E-MKII

€469.00
€349.00 -26%
Tax included
Lowest price within the last 30 days: €349.00

Versatile DMX controller for the Antari DarkFX Strip 510, Strip 510IP and Spot 510IP high-power UV fixtures, 4 output channels, RDM feature set

Out of Stock

Free shipping

Compare

wishlist

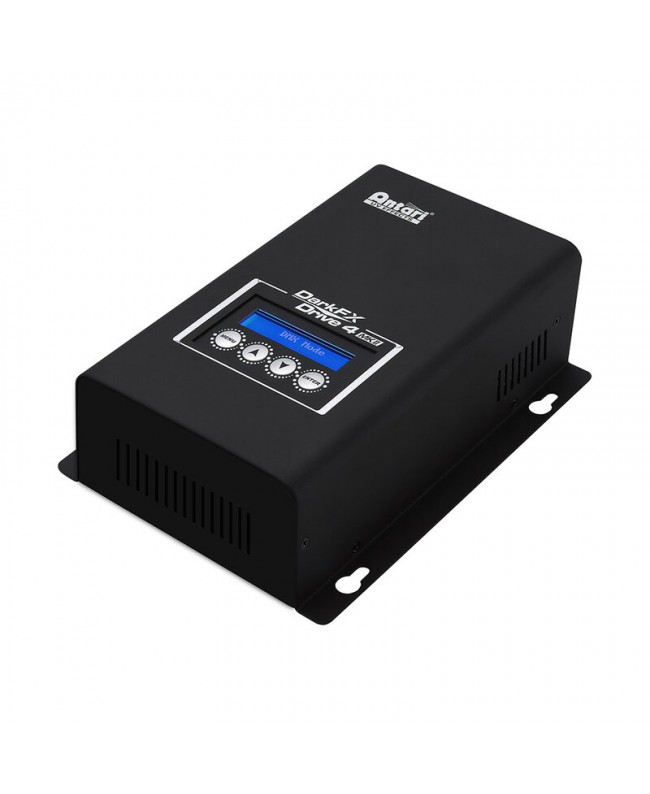

Antari DFX-PD4E-MKII



The Antari DFX-PD4E-MKII is a versatile DMX control module designed exclusively for the Antari Dark. FX Strip 510, Strip 510IP and Spot 510IP high-power UV fixtures.

It offers 4 output channels, each with the ability to be controlled individually or simultaneously, which as mentioned can support up to 4 Antari Dark. FX fixtures. It features RDM (Remote Device Management) functionality, which allows for advanced remote management and simplified configuration.

It features 2 x 5-pin DMX channels and Neutrik power. CON IN/OUT, dimmer, linear dimming curve, strobe effects, 2 x 16 digit control display with 4 buttons, metal chassis with surface mounting option and a universal multi-voltage auto-switching power supply (100 - 240 VAC 50/60 Hz).

  • IP20 protection rating.
  • Technical characteristics
  • Input voltage: 100 - 240 VAC 50/60 Hz
  • Rated power: 100 W
  • Refresh rate: 600 Hz
  • Output current: constant 500 mA max. per channel
  • Control option: RDM, DMX 512, manual
  • DMX Channels: 1, 2
  • Operation: 2 x 16 digit display with 4 buttons
  • Fixture output: 4 terminal block
  • Power connection: Neutrik powerCON IN/through
  • DMX data connection: 5-pin XLR
  • Housing: metal
  • Protection rating: IP-20 indoor use only
  • Dimensions (L x W x H): 21.1 x 16.7 x 7 cm
  • Dry weight: 1.62 kg

ANT-DFX-PD4E-MKII
