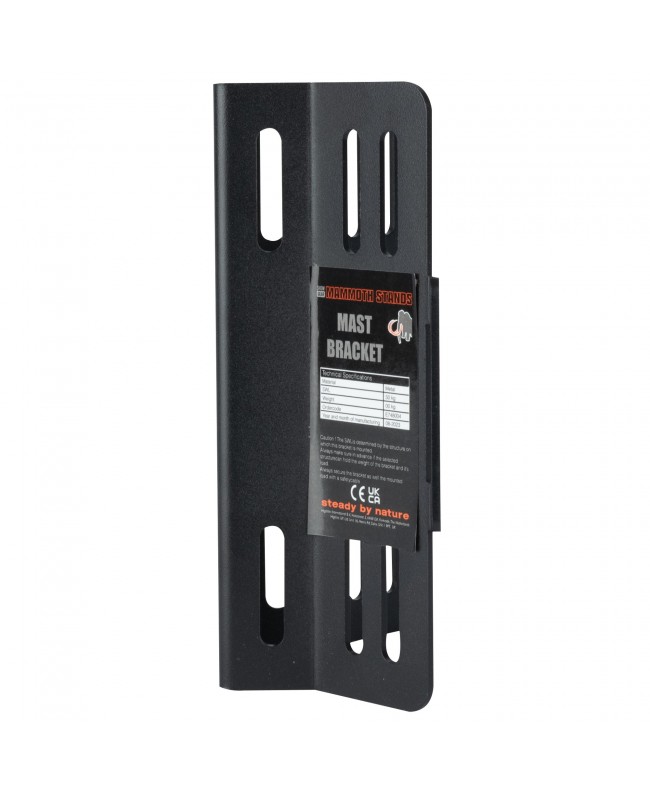

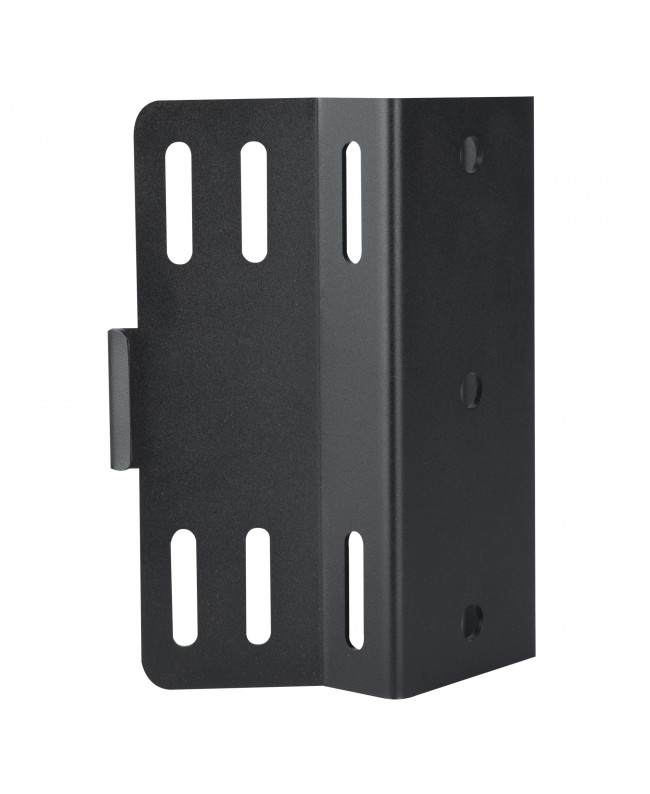

SHOWGEAR Mast Mounting Bracket Mast mounting bracket with ø 12,5 mm hole


€23.00
Tax included

Mast mounting bracket with ø 12,5 mm hole


Qty

Available upon request



wishlist

SHOWGEAR Mast Mounting Bracket Mast mounting bracket with ø 12,5 mm hole

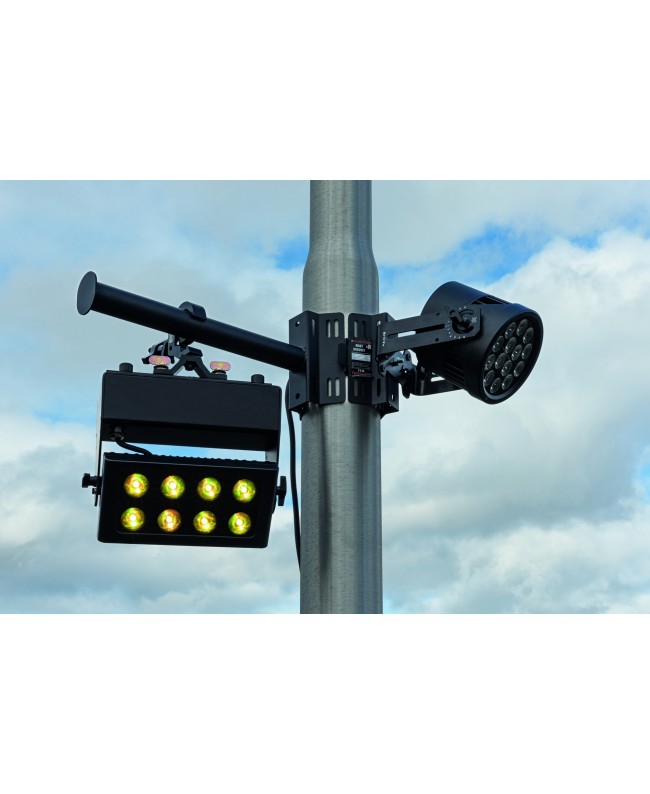

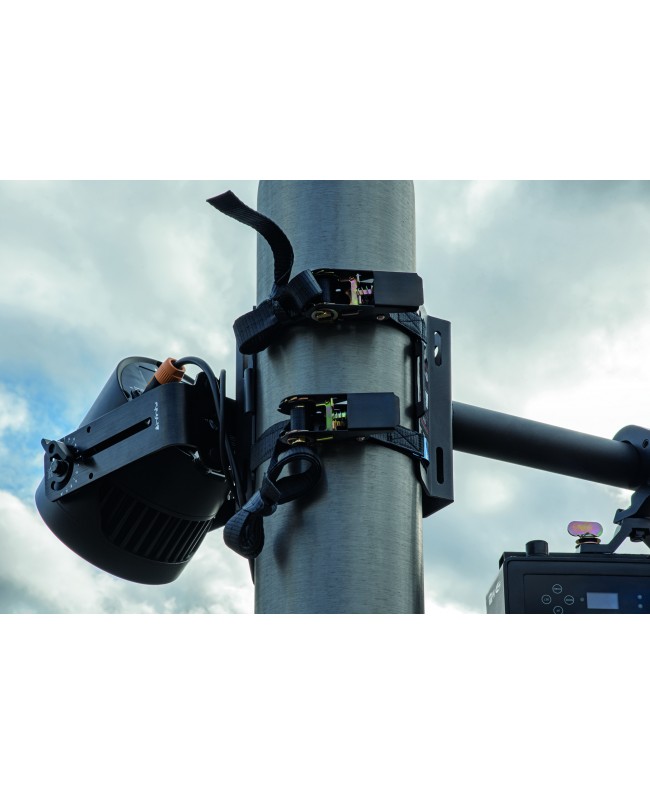

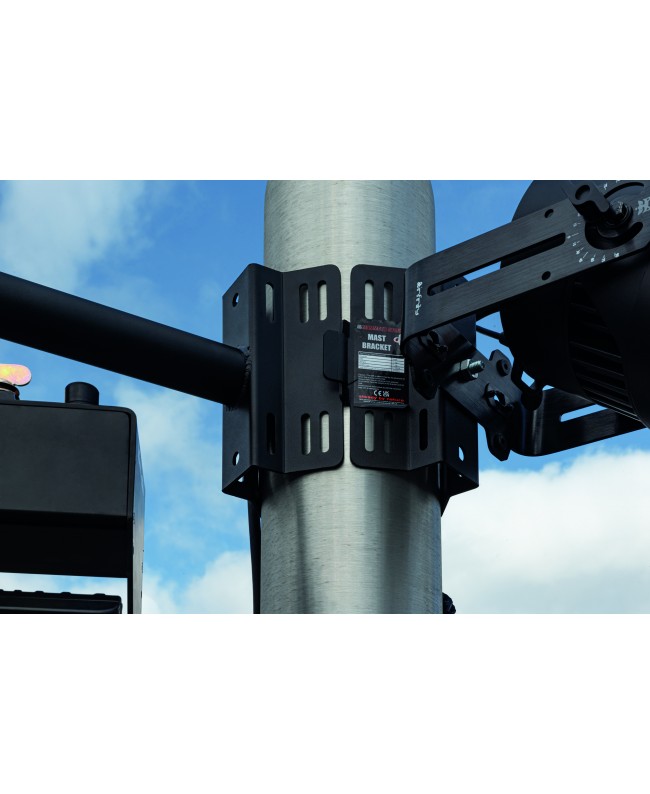

The Showgear Mast Mounting Bracket allows you to easily mount lighting fixtures against a pole or tree. This is possible with the help of two supplied 2-meter endless ratchet straps. A clamp or fixture can be attached to the ø 12,5 mm hole.

Please note that the working load limit depends on the mounting. ALWAYS check whether the object to which you attach the bracket is suitable. ALWAYS use safety cables when mounting at height, both for the bracket itself and for the fixture to be hung.

  • Suitable for mounting objects
  • Quick and easy to attach
  • Safety cable can be attached
  • Strong steel construction with loadable weight up to 50 kg
  • Including two 2-m endless ratchet straps
  • WLL (kg): 50 kg
  • Material: Steel
  • Finish: Powder Coating
  • Colour: Black
  • Length (mm): 73 mm
  • Height (mm): 200 mm
  • Width (mm): 153 mm
  • Weight: 0.91 kg
  • Safety Factor: 5:1
  • Tensile Strength: daN
  • Lashing type: Endless ratchet strap
  • Lashing capacity (LC): 800 daN
  • Standard hand force: 50 daN
  • Standard tension force (STF): 80 daN
  • Webbing material: Polyester (PES)
  • Endless ratchet strap: 2 M
  • Max. elongation: 7 %
  • Minimum Ambient Temperature: -20 °C
  • Maximum Ambient Temperature: 60 °C
  • Included Accessories: Strap Handle

E748004
