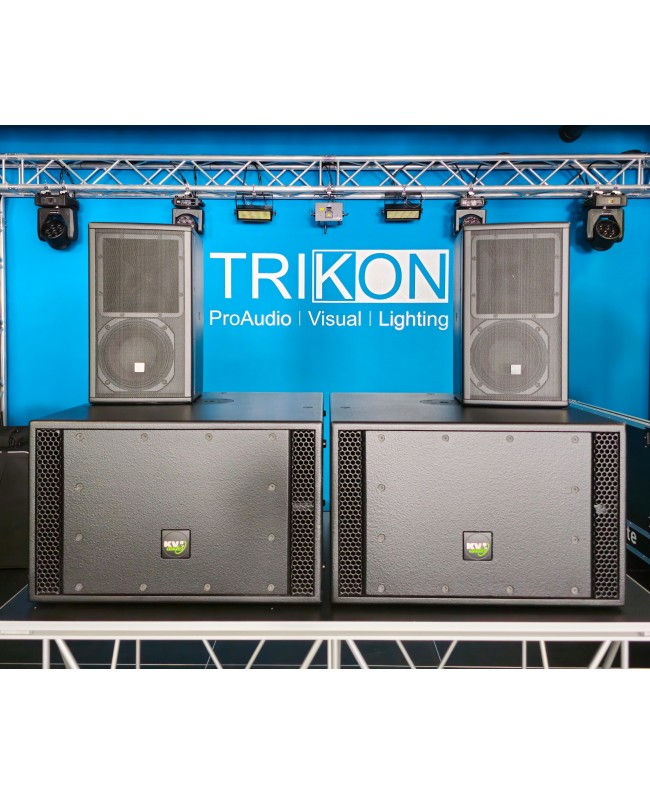

KV2 Sandro bundle

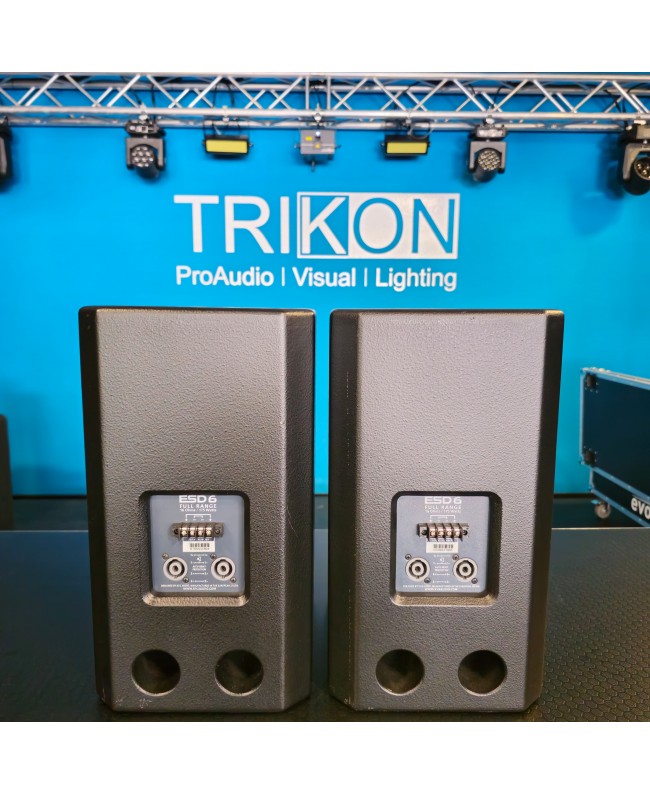

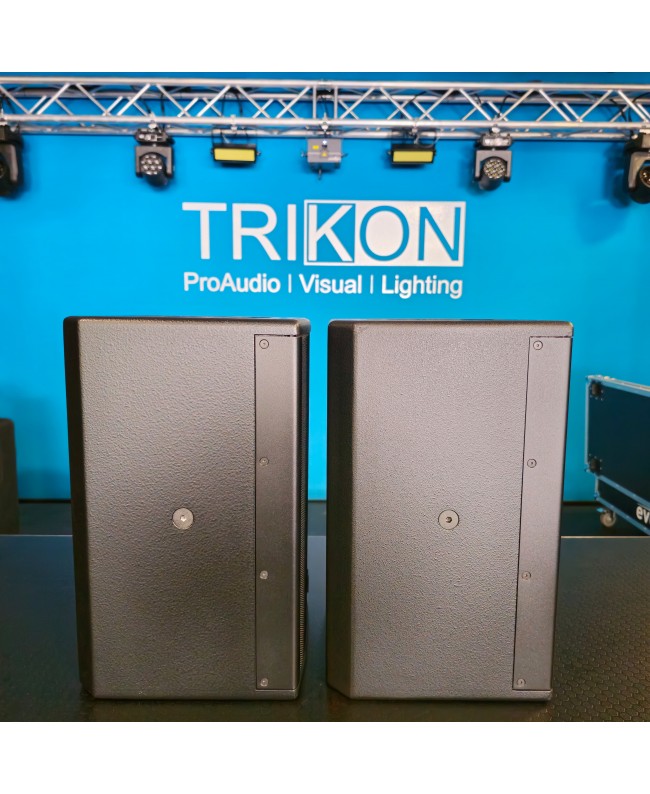

ESD6 Specs

• System Acoustic Performance
• Max SPL Long-term 117dB
• Max SPL Peak 123dB
• -3dB Response 68Hz to 20kHz
• -10dB Response 51Hz to 28kHz
• Recommended Power 175W
• Sensitivity 92dB
• Impedance 16Ω
• Crossover Point 2.0kHz
• High Frequency Section
• Acoustic Design Horn Loaded
• High Horn Coverage Horizontal / Vertical 100° x 100°
• Throat Exit Diameter / Diaphragm Size 1" / 1.75"
• Diaphragm Material Nitride Titanium
• Magnet Type Neodymium
• Protection RMS Limiter
• Low Frequency Section
• Acoustic Design Front Loaded, Bass Reflex
• Woofer Size / Voice Coil Diameter / Design 6" / 1.75"
• Magnet Type Neodymium
• Diaphragm Material
•  Epoxy Reinforced Cellulose
• Protection RMS Limiter
• Speaker Input
• Speaker Input 2x Neutrik Speakon®, Terminal Block
• Cabinet
• Cabinet Material Baltic birch
• Handles 1
• Pole Mount 35 mm
• Color "Orange peeled" Matt Black or any RAL
• Physical Dimensions
• Height 390 mm (15.35")
• Width 220 mm (8.66")
• Depth 240 mm (9.45")
• Weight 9.5 kg (20.9lbs)

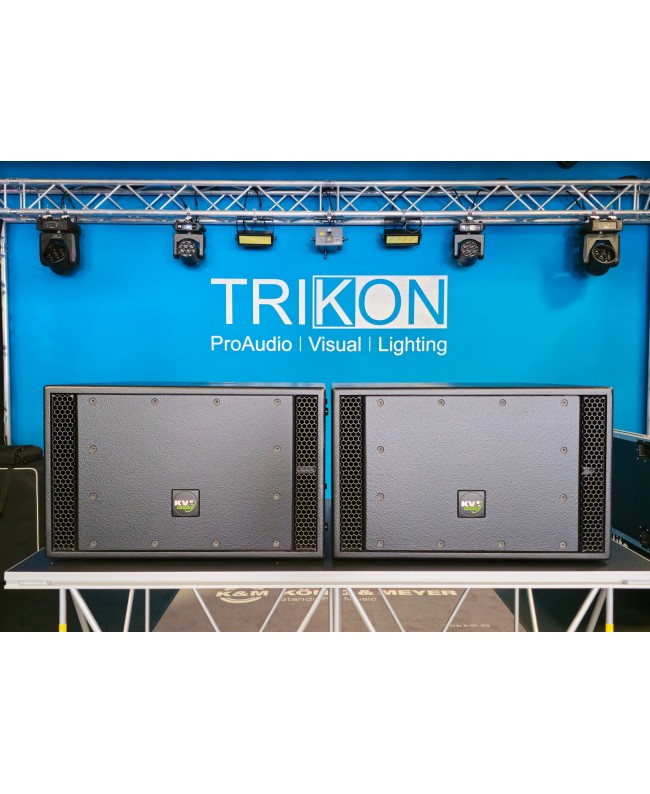

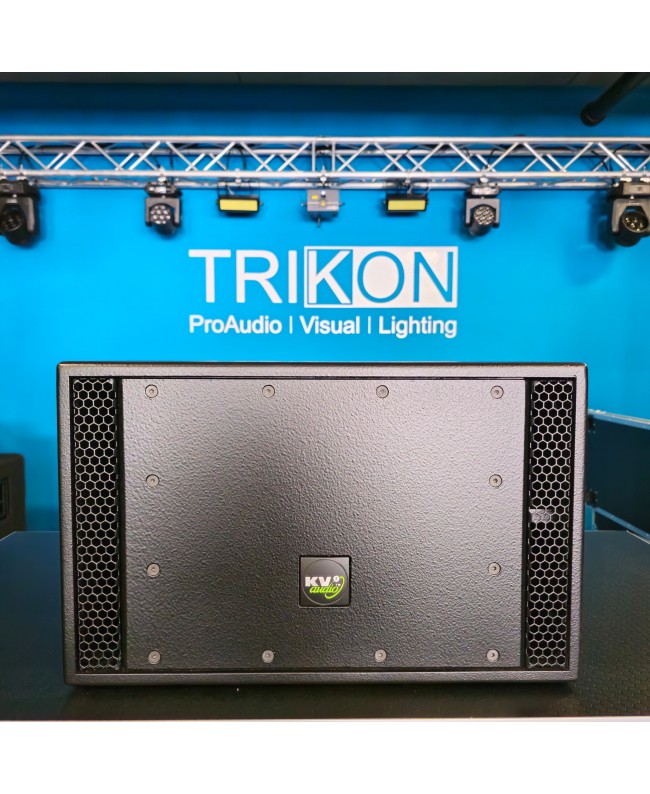

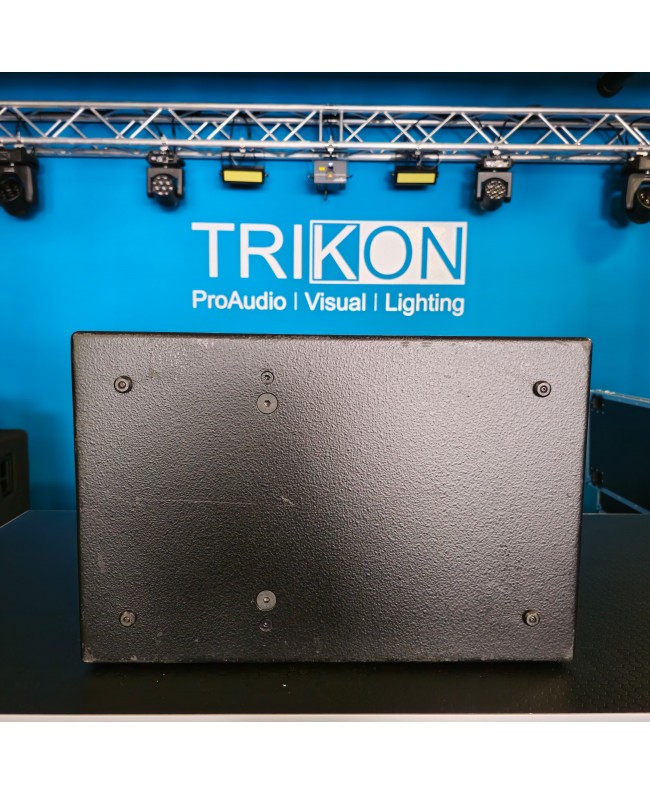

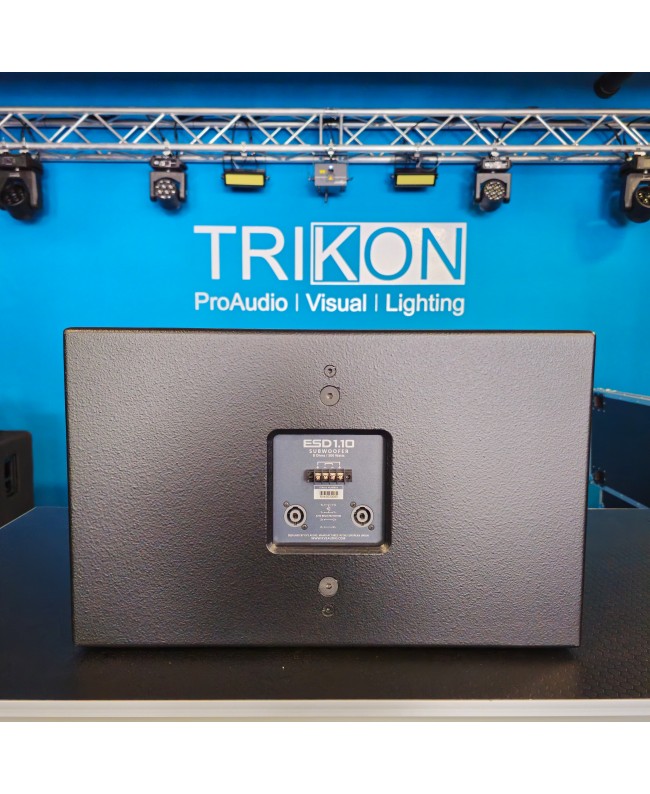

ESD1.10 Specs

• System Acoustic Performance
• Max SPL Long-term 121dB
• Max SPL Peak 127dB
• -3dB Response 40Hz - 150Hz
• -10dB Response 37Hz to 170Hz (with ESP1000 equalization)
• Recommended Power 500W
• Sensitivity 94dB
• Impedance 8Ω
• Crossover Point 80Hz to 150Hz
• Low Frequency Section
• Acoustic Design Twin Asymetrical Loading
• Number of Drivers 1
• Woofer Size / Voice Coil Diameter / Design 10" / 3" / Inside outside
• Magnet Type Neodymium
• Diaphragm Material Epoxy Reinforced Cellulose
• Protection Thermal breaker - autoreset
• Speaker Input
• Speaker Input 2x Neutrik Speakon®, Terminal Block
• Cabinet
• Cabinet Material Baltic birch
• Handles 1
• Pole Mount M20
• Color "Orange peeled" Matt Black or any RAL
• Physical Dimensions
• Height 335 mm (13.2")
• Width 530 mm (20.9")
• Depth 500 mm (19.7")
• Weight 21,3 kg (46.96 lbs)

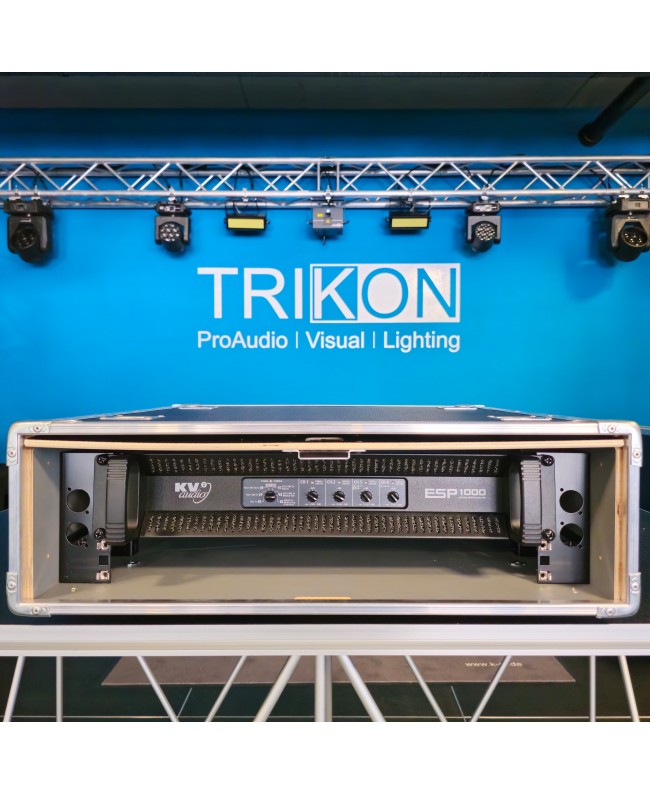

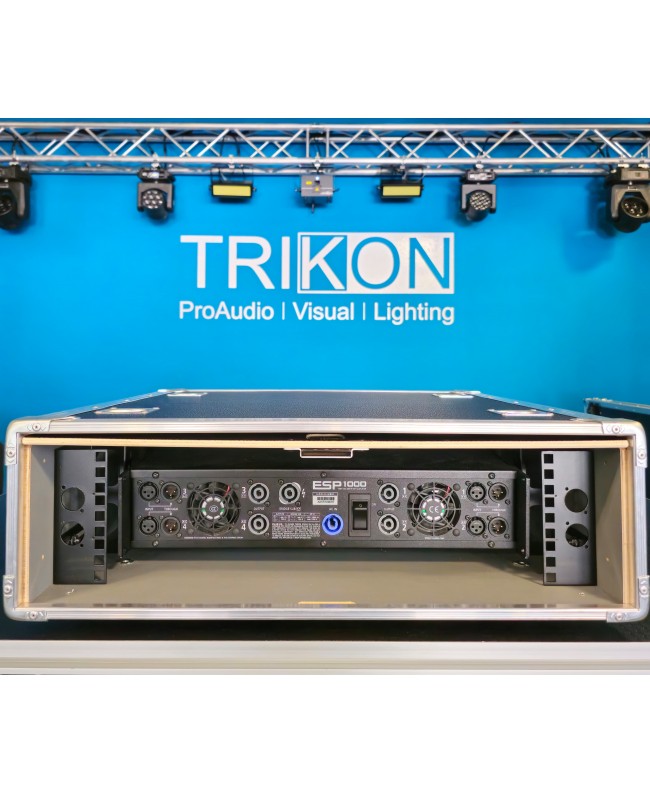

ESP1000 Specs

• System Acoustic Performance
• -1dB Response 3Hz to 50kHz / Flat Setup
• Channel Crosstalk >70dB
• Signal to Noise Ratio >115dB
• Total Harmonic Distortion <0.005% (1W) / <0.01% (clip -1dB)
• Output Channels
• Amplifier Type High Efficiency, Emitter coupled
• Number of Channels 4
• Total Output Power 1000W
• Minimum load impedance per channel 4Ω
• Out. Power 8Ω - 1 channel / 2 channels loaded 150W / 140W (RMS)
• Out. Power 4Ω - 1 channel / 2 channels loaded 250W (RMS)
• Out. Power 16Ω - bridged 300W (RMS)
• Out. Power 8Ω - bridged 500W (RMS)
• Signal Input
• Input Channels XLR
• Input Sensitivity 1.55V
• Input Impedance 20kΩ (balanced)
• Signal Output XLR Through
• Speaker Output
• Speaker Output Neutrik Speakon®
• Features
• Input Level Control -∞ to 0dB
• Equalization Flat or according to the setup
• RMS Limiter YES
• Indicators Power ON/Thermal, RMS Limiter, Signal
• Power Requirements
• Power ConnectorNeutrik PowerCon®
• Operating Voltage 115V / 230V / 250V
• Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
• Recommended Amperage 10A 115V | 5A 230V | 5A 250V
• Soft Start YES
• Protection Thermal breaker
• Cooling 2x temperature controlled fans
• Physical Dimensions
• Height 88 mm (3.5"), 2RU
• Width 483 mm (18.95")
• Depth 496 mm (19.5")
• Weight 17,8 kg (32,24 lbs)
