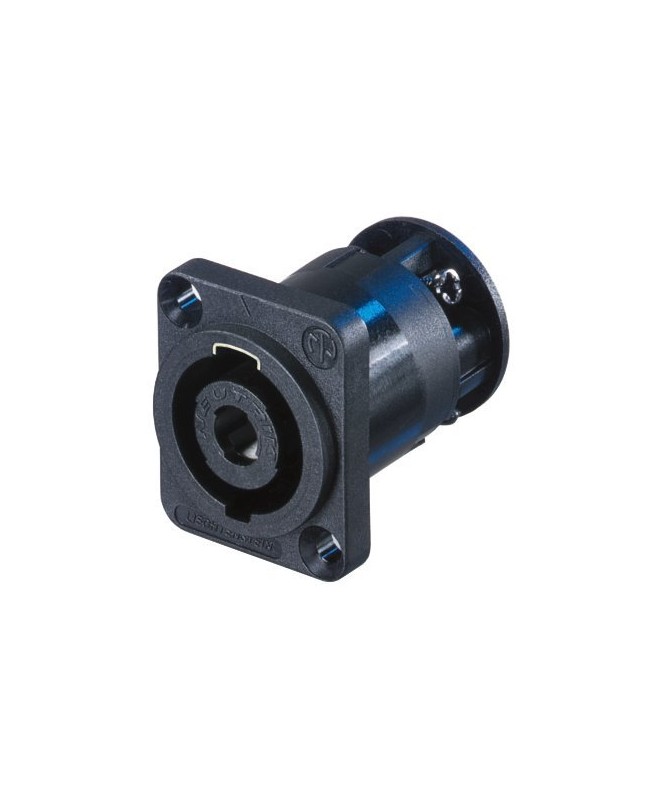

NEUTRIK NL4MP-ST Speaker Twist Chassis Connectors
  • -23%

NEUTRIK NL4MP-ST

€7.60
€5.90 -23%
Tax included
Lowest price within the last 30 days: €5.90

4 pole chassis connector, black D-size flange, countersunk thru holes, screw termination

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 03/09/2025? Order within 8 hours and 24 minutes

Compare

wishlist

NEUTRIK NL4MP-ST



4 pole chassis connector, black D-size flange, countersunk thru holes, screw termination. This chassis connector is not airtight.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features & Benefits

  • Current rating 30 A rms
  • Precise keyway for secure mating
  • Metal insert in locking area
  • Glass reinforced materials make it extremely robust and dependable
  • Accurate twist lock latching system

Electrical

  • Contact resistance: ≤ 3 mΩ (after lifetime)
  • Dielectric strength: 4 kVdc (peak)
  • Insulation resistance: > 1 GΩ (after dampheat)
  • Rated current per contact: 30 A rms continuous
  • Rated current per contact: 40 A audiosignal, duty cycle 50 %
  • Rated voltage: 250 V ac
  • Attention: speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

  • Lifetime: > 5000 mating cycles
  • Wiresize: 4 mm²
  • Wiresize: 12 AWG
  • Wiring: screw terminals
  • Locking device: Quick Lock
  • Chassis shape: D
  • Layout: standard hole position, thru holes

Material

  • Contact plating: 4 µm Ag
  • Contacts: Bronze (CuSn6)
  • Shell: Polyamide (PA 6 30 % GR) black

Environmental

  • Flammability: UL 94 HB
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C

699916

Data sheet
