ELDOLED LINEARdrive DC - 720 W


€116.50
Tax included

Constant Voltage - DALI/DMX - 4 Channels, 4 Outputs - 6 A/Ch - LIN720D3


Out of Stock

Free shipping


wishlist

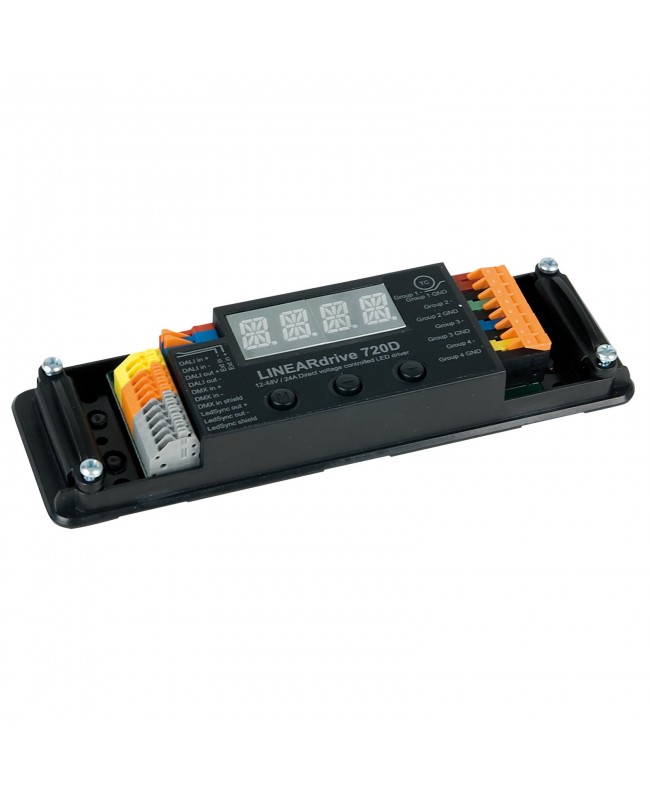

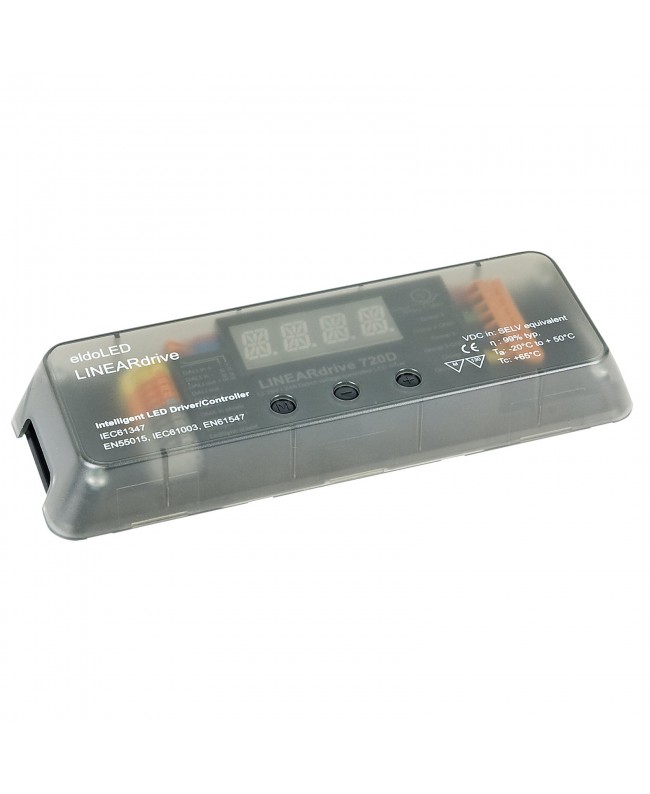

ELDOLED LINEARdrive DC - 720 W



EldoLED Lineardrivers are high-end PWM dimmers for flickerfree and smooth dimming, even in the very low ranges. The are available in 0-10 V, Dali and DMX, for single and multicolour.

  • Smooth, flicker-free dimming
  • Made for DMX/DALI environment
  • Maximum energy and operational efficiency
  • 12-48 V DC/24 A
  • Control Mode: DMX
  • DMX Channels: 4
  • Protocols: DMX
  • BT: No
  • Power Supply: 12-48 V DC
  • Output voltage: 12-48 V DC
  • Maximum Output Current (A): 24 A
  • Power Connector In: Open End
  • Power Connector Out: Open End
  • DMX Connector In: Open end
  • DMX Connector Out: Open end

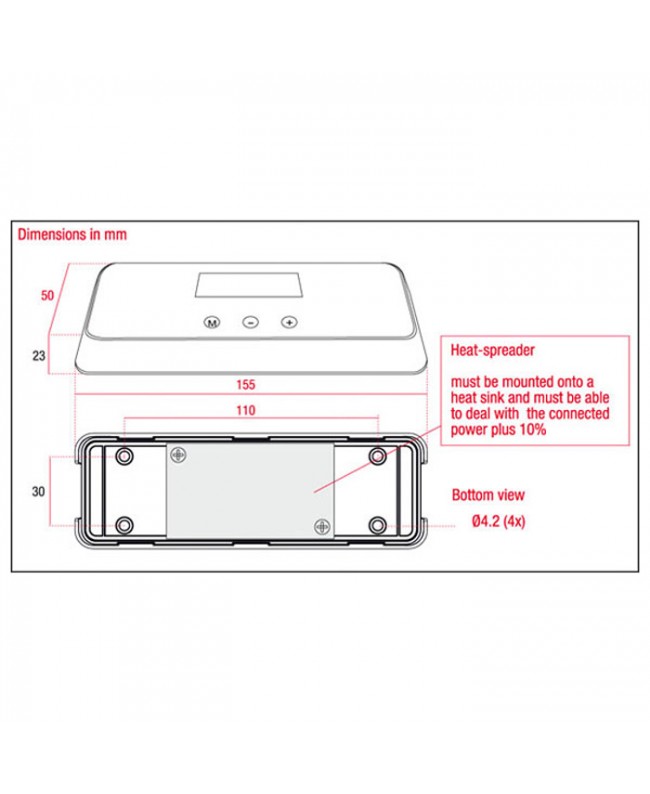

  • Length (mm): 155 mm
  • Height (mm): 23 mm
  • Width (mm): 50 mm
  • Weight: 0.144 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Plastic
  • Colour: Black
  • Minimum Ambient Temperature: -20 °C
  • Maximum Surface Temperature: 50 °C

ELDOLED
A9950051

Data sheet

Channels
4 channels
Color
Black

Specific References
