ELDOLED ECOdrive AC - 50 W
  • New

ELDOLED ECOdrive AC - 50 W


€37.20
Tax included

Constant Current - 560/S - DALI - 1 Output - ECO560/S4


Out of Stock



wishlist

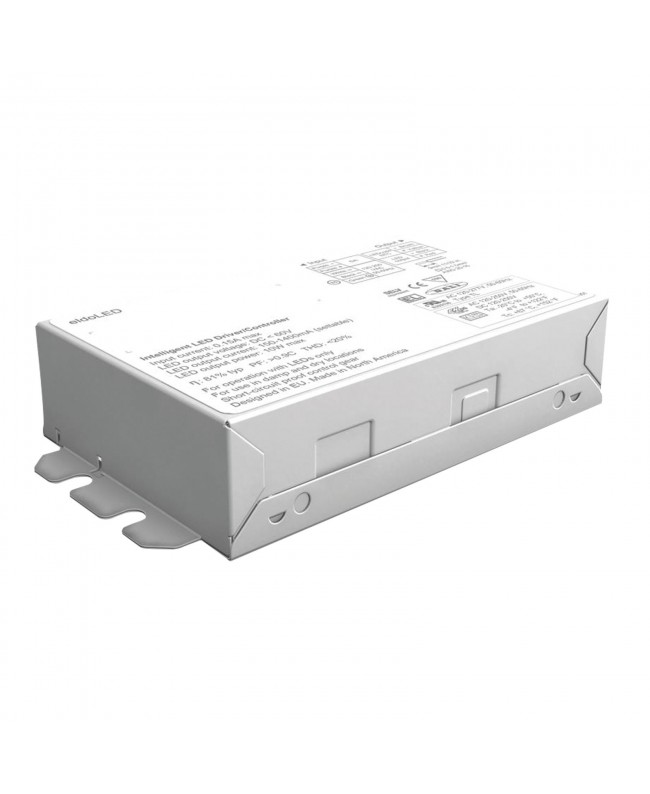

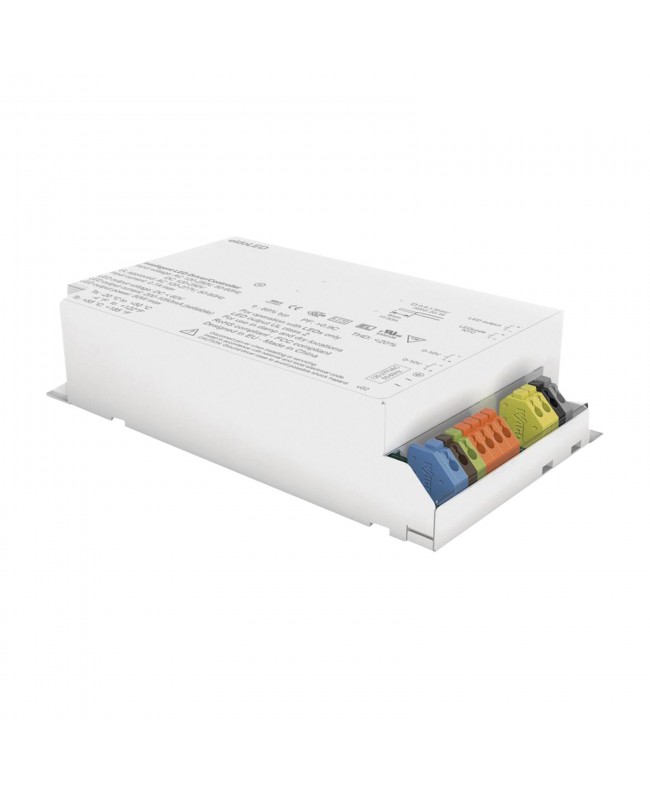

ELDOLED ECOdrive AC - 50 W



ECOdrive AC - 50 W delivers 50 W into a single output channel and is DALI-2 certified. It provides smooth, flicker-free dimming down to 1% via DALI, 0-10V and LEDcode2. It has a universal input voltage range, low inrush current and THD, high power factor and high efficiency. Its Hybrid HydraDrive technology makes it suitable for TV studios and security camera applications. Pulse dimming features allow different switching and dimming functions to be accessed by pressing and holding the mains switch.

  • Hybrid HydraDrive provides smooth, flicker-free dimming down to 1 %
  • LEDcode2 supports several digital accessories and IoT applications
  • NTC interface for robust thermal management
  • Increase performance and capability of any LED fixture
  • Trusted brand with proven track record of performance and reliability
  • Control Mode: DALI
  • DALI Ballast: 1 control channel
  • Protocols: DALI 2
  • Dimmable: Yes
  • Power Supply: 100-240 V AC 50/60 Hz
  • Output Voltage Vf/Vo Minimum: 2 V DC
  • Output Voltage Vf/Vo Maximum: 55 V DC
  • Power Consumption: 50 W
  • Minimum Output Current (mA): 150 mA
  • Maximum Output Current (mA): 1400 mA
  • Power Connector In: Open End
  • Power Connector Out: Open End
  • Data Connector In: Open End
  • Data Connector Out: Open End
  • Length (mm): 153 mm
  • Height (mm): 31 mm
  • Width (mm): 76 mm
  • Weight: 0.372 kg
  • IP Rating: IP20 (indoor use only)
  • Material: Metal
  • Housing: Metal / Plastic
  • Colour: White
  • Maximum Ambient Temperature: 50 °C
  • Minimum Ambient Temperature: -20 °C
  • Included Accessories: None
  • BT: No

ELDOLED
A9950573
