DAP EDGE EBT-1
  • -11%
  • New

DAP EDGE EBT-1


€152.00
€136.00 -11%
Tax included
Lowest price within the last 30 days: €136.00

Beltpack transmitter


Qty

In Stock

Delivery

Do You want Your order by Thursday, 30/07/2026? Order within 5 hours and 9 minutes

Free shipping


wishlist

DAP EDGE EBT-1



The DAP EDGE series offers wireless microphones and beltpacks for recording or amplifying vocals and instruments. It is a reliable, yet affordable solution with simple operation for creating a clear and pure sound without interference. Transferring frequencies between receiver and transmitter are done automatically due to the infrared sensors. In addition, you can use up to 8 wireless microphones/beltpacks simultaneously. This is usually sufficient for bands and other artists.

Microphone/beltpack recognition is easy due to the included colour coded stickers. Additional accessories are available to extend the reach or to make the handheld microphones compatible with wireless Shure cartridges. You can order each item separately or opt for a complete microphone or beltpack set with condenser headset, 19 installation rack, adapter and windscreen.

Interested in our DAP Edge series? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.

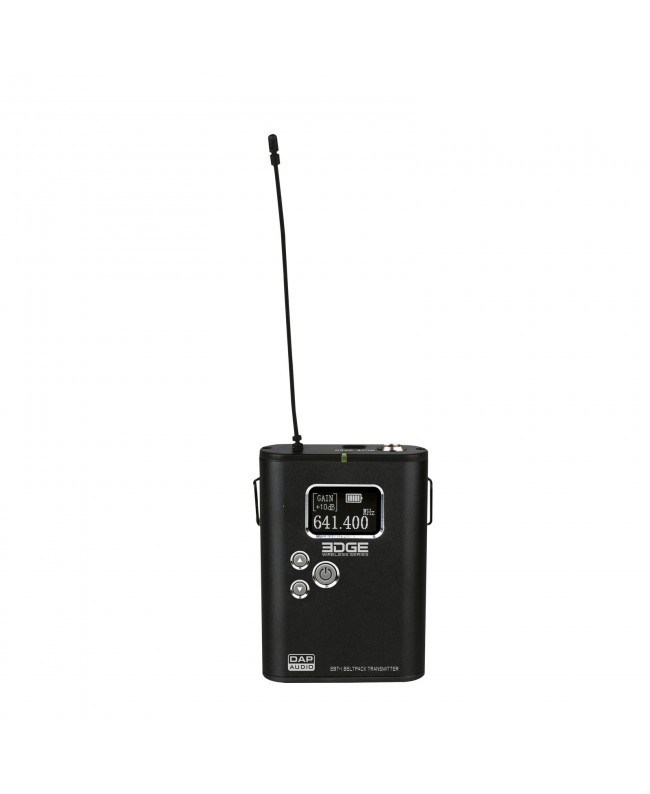

The DAP EDGE EBT-1 is a belt pack transmitter (sender) designed for ease of use and delivering a clear, reliable, interference-free signal. Used with a headset or clip-on microphone, it is an ideal solution for sports trainers, actors and dancers. Simplicity is at the heart of the EDGE series, with colour coding and name recognition on the OLED display. The EDGE EBT-1 is part of the EDGE family and is easily paired with any EDGE receiver, making it the perfect backup or replacement belt pack. It has a rugged aluminium housing and runs on two AA batteries.

  • Display for name, battery status, gain freq. and freq. group
  • Suitable for sport instructors, actors and dancers
  • Easy operation without interference
  • Wireless Audio Frequency Start: 610 MHz
  • Wireless Audio Frequency End: 670 MHz
  • RF Frequency Stability: 0.0015 %
  • RF Power: 30 mW
  • Frequency Deviation: 75 +- kHz
  • Spurious Rejection: 50 - dBC
  • RF Bandwidth: 60 MHz
  • Signal-to-noise Ratio: 100 dB
  • Max. SPL: 133 dB
  • Frequency Response Minimum: 50 Hz
  • Frequency Response Maximum: 19000 Hz
  • Phantom Power: 5 V
  • Gain Range (Transmitter): 30 dB
  • Mono Input Connector: 4-pin mini XLR
  • Mono Inputs: 1
  • Battery Type: AA
  • Battery Voltage: 1.5 V
  • Runtime Average: 10 h
  • Display: OLED
  • Transmitter Type: Beltpack
  • Height (mm): 22 mm
  • Width (mm): 65 mm
  • Length (mm): 90 mm
  • Housing: Aluminium
  • Weight: 0.11 kg
  • Colour: Black
  • Maximum Ambient Temperature: 40 °C
  • Minimum Ambient Temperature: 0 °C

D1478B

Data sheet

Color
Black
Giorni di elaborazione
3
