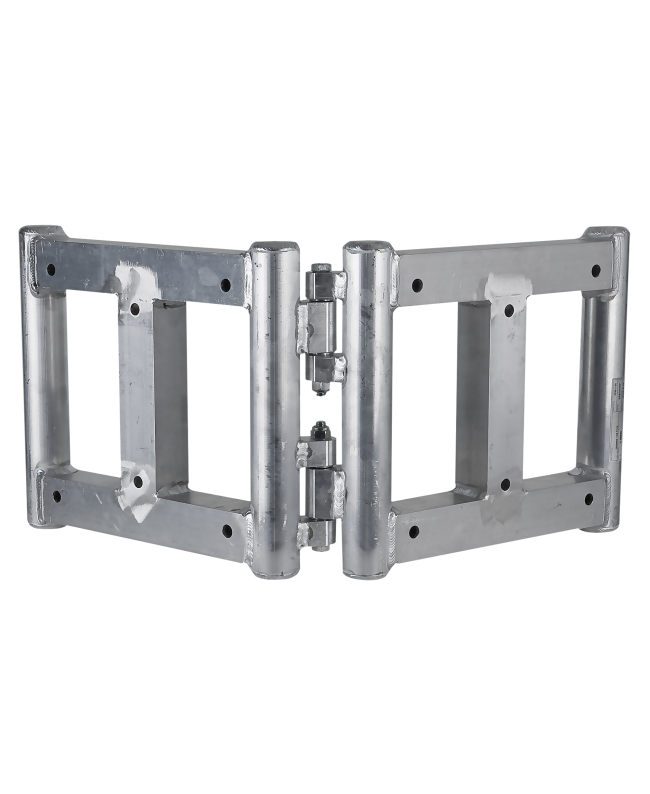

MILOS Book Corner Pro-30 Truss QBB1 - receivers or half connectors not included

Bookcorners provide system users with increased flexibility, enabling angular adjustments between 1° -180°. The corners are designed for either female receivers or male half connectors bolted through the aluminium hinge frame. The bookcorner can be used for step, triangle and square systems, female receivers. Half conical connectors are not included, but separately available for P, F and G Truss.

Note: Bookcorners are not structural components and must be supported on both sides of the frame to ensure safe operation.

The Milos PRO-30 truss is made of 50 mm alu pipe with a thickness of 2 mm and 16 mm braces. This is the most used construction system for discotheques, stages, theatres and many more applications. The PRO-30 truss is available in the following models: 2 point Step system (FS, GS, PS), 3 point triangle system (FT, GT, PT) and 4 points square system (FQ, GQ, PQ) The system elements are joined together through conical connectors and spigots. Milos offers three different coupling systems with different compatibility, shown in the overview below. All Milos PRO-30 truss systems are TÜV certified.

Each truss piece (length or cornerpiece) is always delivered including a complete connection-set (spigots, pins and R-springs) for one side. And the black truss we offer, is powder-coated with colour RAL9005.

• F-truss compatible with Prolyte systems (Ø 27.8 mm)
• G-truss compatible with Global and Euro systems (Ø 29.0 mm)
• P-truss compatible with standard Milos truss systems (Ø 29.8 mm)
