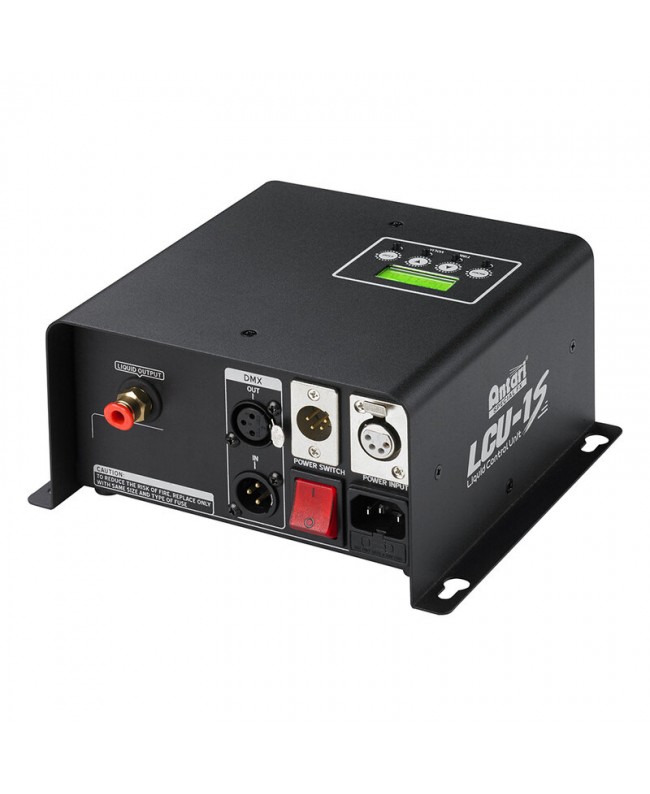

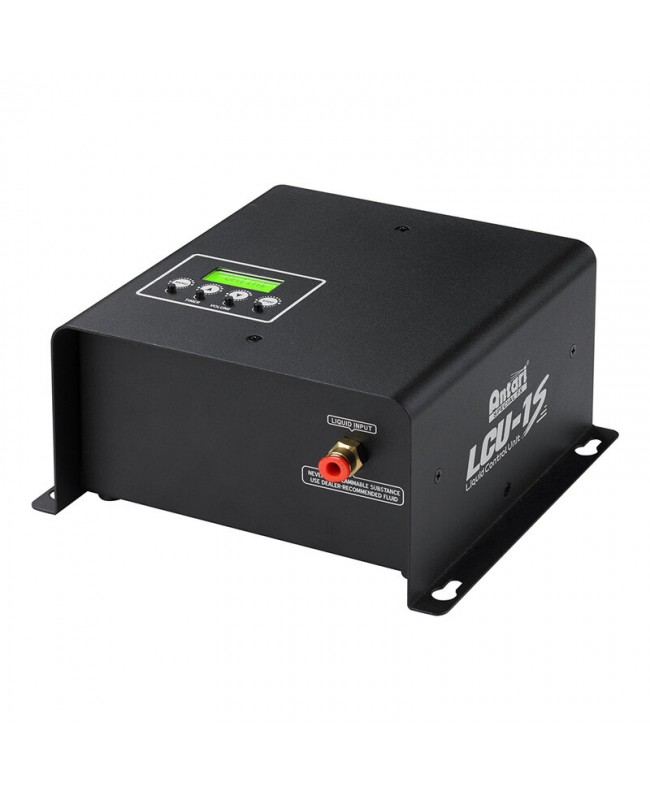

Antari LCU-1SE Smart Liquid Control Unit

Antari LCU-1S is an intelligent liquid control unit with an LCD panel that allows users to easily read and set parameters.

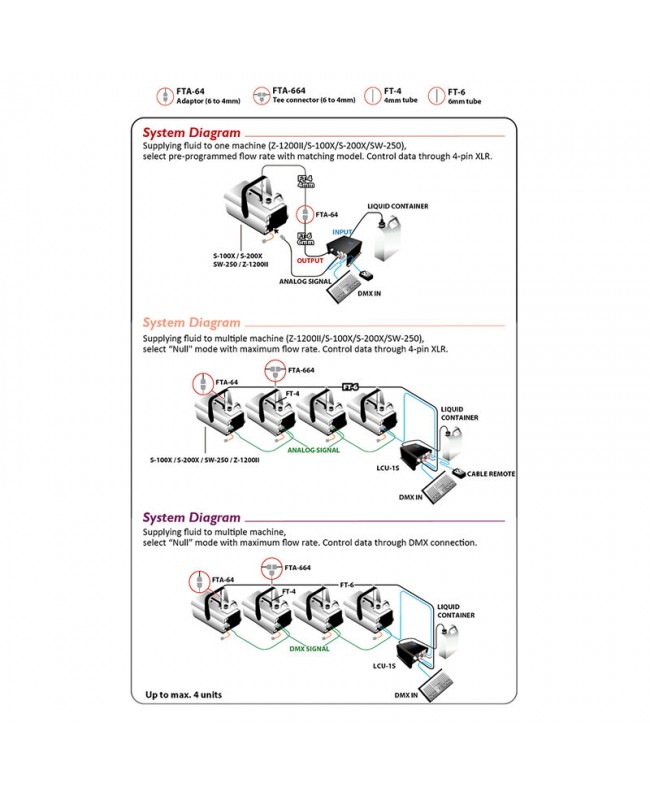

It is pre-programmed for use with the Z-1200II, S-100X, S-200X and SW-250, with a regulated flow rate to supply liquid to one unit at a time. A Null option offers versatility for use with any model, running the pump at 100% capacity and allowing up to four units to be supplied at once.

The LCU-1S can supply liquid up to a distance of 35 meters or a height of 12 meters and is designed to meet most remote liquid supply applications. The nominal power is 40 W and consumption is 400 m. L/min. It is compatible with Antari fluids and can be controlled manually, by timer or by DMX 512 using one DMX channel.

• Main features
• Can supply 4 units at the same time (max.)
• DMX control
• Supply fluid 35 m horizontal and 12 m vertical at maximum
