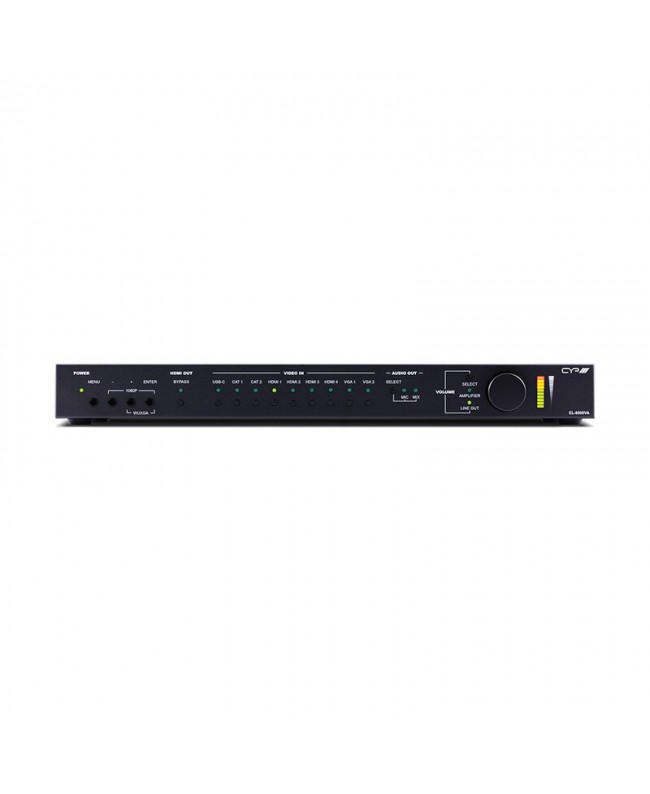

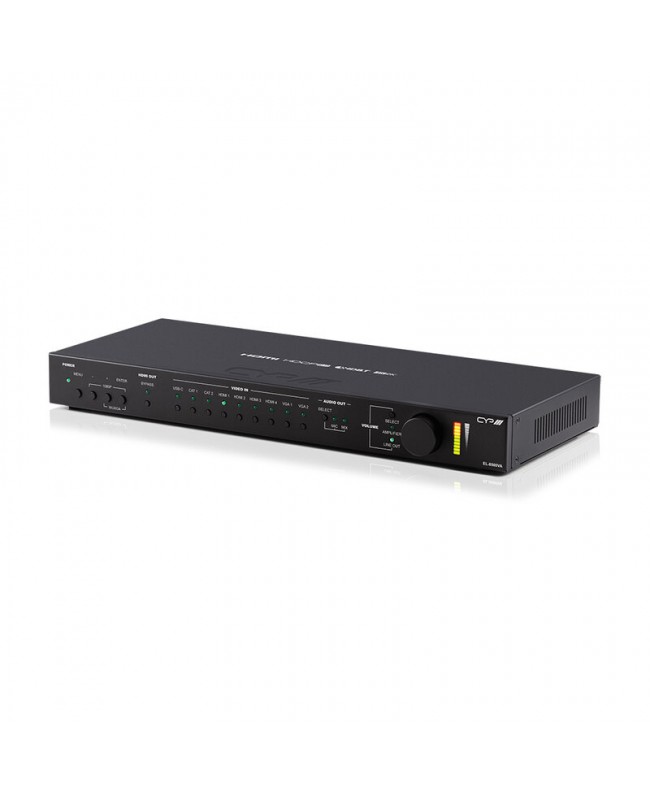

CYP EL-8500VA

The EL-8500VA is a multi-format presentation switcher with a built-in scaler, designed to handle HDMI, USB-C, HDBase. T and VGA inputs and send the signal to duplicate HDMI and HDBase. T outputs.

It supports resolutions up to 4K and #64; 60 4:4:4 on HDMI and USB-C, with automatic downconversion for HDBase. T output. It enables AV transmission up to 70 m in 4K and 100 m in 1080p over a single Cat.5e/6/7 cable, also providing Po. H to compatible receivers. It includes analog audio inputs, a microphone input, a built-in audio mixer and a 2 x 20 W stereo amplifier, offering extensive flexibility for presentations and teaching environments.

Control is available via front-panel buttons, OSD, web GUI, Telnet, RS-232, and triggers for simplified automation.

Supports up to 4K UHD video (18 Gbps, 4K and #64; 50/60 Hz 4:4:4, 8-bit) input and output. N.B. HDBase. T output automatically downconverts 4K and #64; 50/60 (4:4:4) sources to 4K and #64; 50/60 (4:2:0) to maintain compatibility

• Main features
• Switching and scaling of all AV inputs for display on duplicated HDMI and HDBase. T outputs
• HDBase. T output transmits video and audio over a single Cat. 5e/6/7 cable up to 100 m at 1080p and 70 m at 4K
• Supports pass-through of many audio formats, including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
• Audio mixer function allows audio from any analog input to be mixed with the microphone input
• Built-in 2 x 20 W audio amplifier
• Trigger Control Keypad support for easy one-button activation of functions (optional)
• Supports standard Po. H from HDBase. T output (PSE) to a connected HDBase. T receiver (PD) (compatible receivers only)
• Full EDID and HDCP management (HDCP 2.2)
• Controlled via front buttons with OSD, RS-232, Telnet, Web GUI, and triggers
• USB for service/firmware updates
• User benefits
• Simplified integration of heterogeneous sources in conference rooms and classroom environments
• Consistently optimized video quality thanks to automatic source scaling
• Reduced cabling and increased reliability with long-distance AV transmission via HDBase. T
• Microphone/line input mixing
• Ability to directly drive passive speakers without the need for external amplifiers
• Intuitive control thanks to multiple management interfaces
• Simple automation via triggers for single-button scenarios
• Areas of use
• Conference rooms and meeting rooms
• Classrooms and educational environments
• Multi-format corporate installations
• Professional presentation spaces
• Long-distance AV systems
