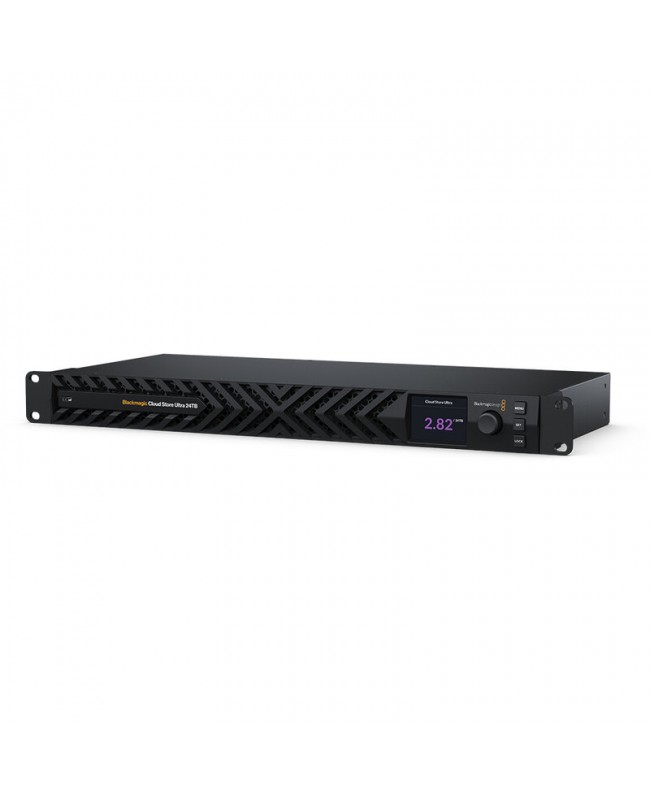

Blackmagic Cloud Store Ultra 24TB is a high performance network storage system designed for video workflows with multiple users accessing it simultaneously. Featuring 12 internal M.2 NVMe SSD drives in a RAID 0 configuration, it offers incredibly fast speeds and virtually zero latency, making it ideal for multi-camera editing, color grading and managing large RAW files.
The system features two completely independent 100G Ethernet ports for incredible throughput and supports extremely high bandwidth workflows, such as multi-camera ISO recording with Hyper. Deck Extreme ISO and instant file sharing over a local network.
Blackmagic Cloud synchronization lets you automatically distribute files worldwide, keeping local copies always up to date in multiple locations and enabling global collaboration without the need for manual file transfers.
The 1RU rack-mount design with front-to-back cooling ensures quiet and reliable operation even under heavy load. The built-in HDMI output lets you monitor activity, transfer speed, connected users and core memory status in real time.
Designed for mission-critical environments, Cloud Store Ultra includes redundant power supplies, RAID 5 support for data protection, and advanced management via a dedicated utility, with no subscription or licensing fees.
User benefits
Instant collaboration between multiple users thanks to the high performance of dual 100G Ethernet ports
Near-zero latency file access
Global content synchronization via Blackmagic Cloud so you can work from multiple locations without having to manually transfer files
Data protection with RAID 5 support
Redundant power supplies for continuous operation
Real-time monitoring via HDMI output with activity, speed and memory status graphs
Consistent performance even under heavy loads
Reliability in professional environments thanks to the 1RU design with front-to-back cooling
Complete control of your data without subscriptions or recurring costs
Areas of use
Post-production with local and remote teams requiring simultaneous access to files
High-bandwidth multi-camera editing with Hyper. Deck and Da. Vinci Resolve
Film and television production
Broadcast infrastructure with 100G networks and mission-critical workflows
Archiving and distribution of large multimedia libraries with immediate access from multiple locations
Technical characteristics

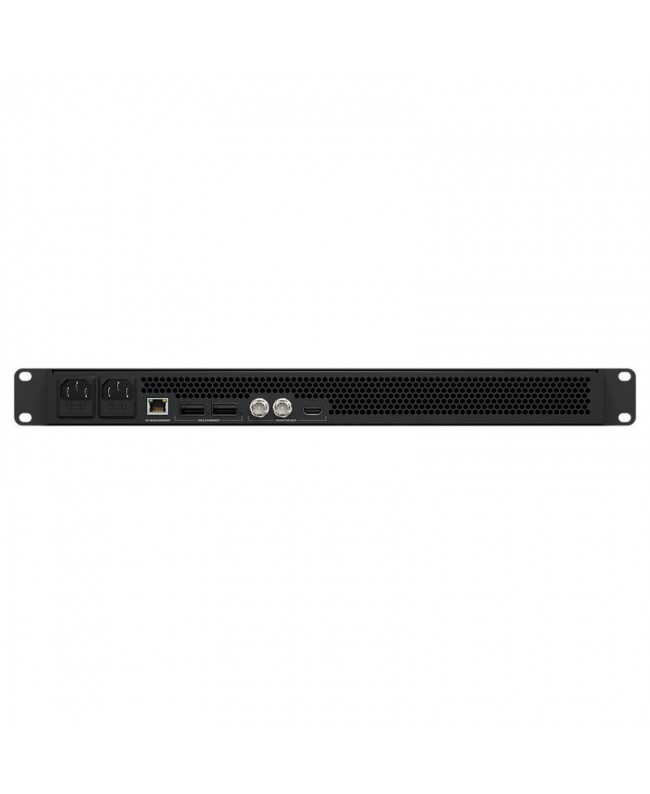

Connections
100G ethernet networks: 2 x 100G QSFP28 connections. Each 100G port can be assigned an independent IP address and subnet mask for up to 200G bandwidth and load balancing when used with a managed switch
1G management: 1 x RJ45 Ethernet supports 10/100/1000 BASE-T for Cloud Store Setup utility and software updates
SDI monitor outputs: 2
HDMI monitor outputs: 1
SDI rates: 1.5G, 3G
Computer interface: 1 x USB-C for Cloud Store Setup utility and software updates
Power: 2 x IEC C14 power inputs
File sharing protocol
Protocol: NFS, SMB
Computer connections: 200 max.
Cloud synchronization
Blackmagic Cloud
Storage
Storage type: M.2 NVMe SSD
Total capacity: 24 TB
Displays

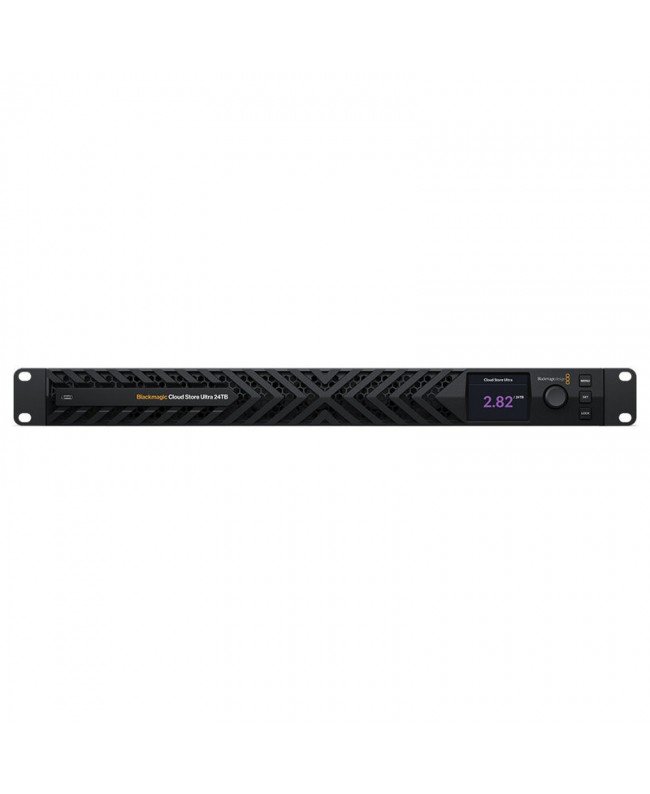

Front panel display: built in 2.2 LCD for settings plus storage name, capacity and use
Monitor out displays: device name, storage capacity and use, Cloud Sync status, user activity, hardware status, storage map, network data rate graph
SDI monitor out standards: 1080p 50, 1080p 59.94, 1080p 60
HDMI monitor out standards: 1080p 50, 1080p 59.94, 1080p 60
Control
Built in control panel: 3 buttons, 2.2 color display and spin knob for menu settings
External control: USB-C or Ethernet for configuration and software updates
Software
Software included: Blackmagic Cloud Setup Utility
Blackmagic Proxy Generator Lite: internal software upgrade via Blackmagic Cloud Setup using USB-C or 1G Management port
Operating systems
Mac os support: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later
Windows support: Windows 11
Power requirements
Power supply: 2 x 100 - 240 VAC 50/60 Hz internal power supplies
