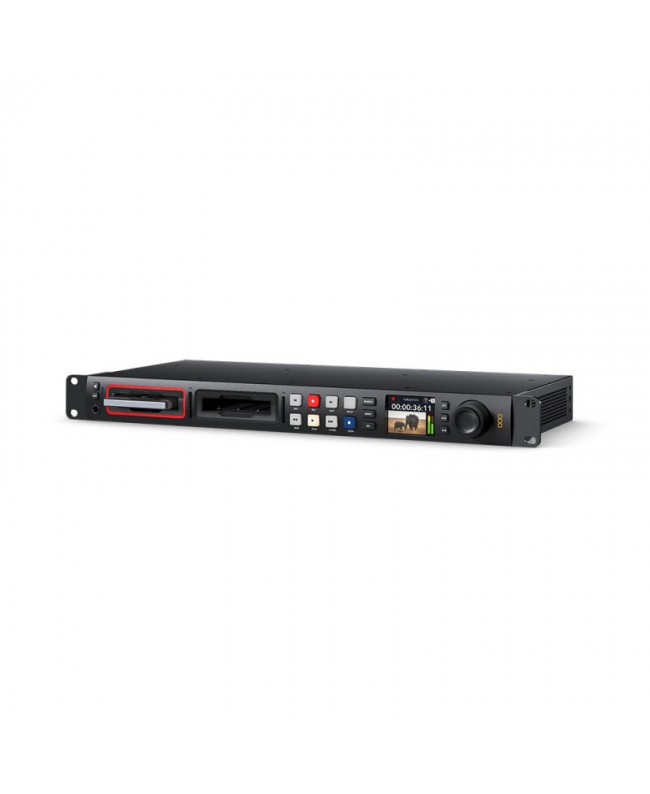

Hyper. Deck Studio HD Pro is a rackmount digital deck that records and plays back Pro. Res, DNx, and H.264 files to SSDs, SD cards, or USB-C drives, with studio-grade controls and full connectivity.

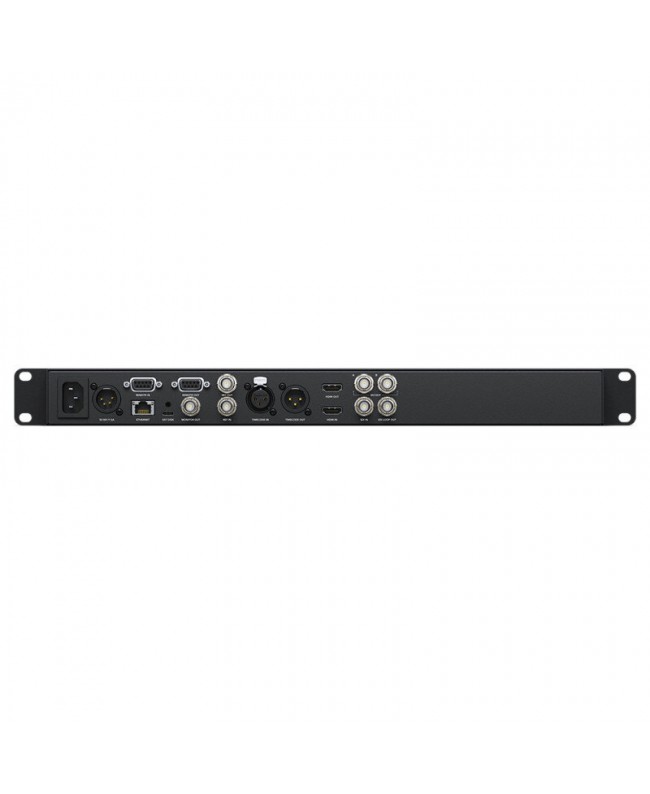

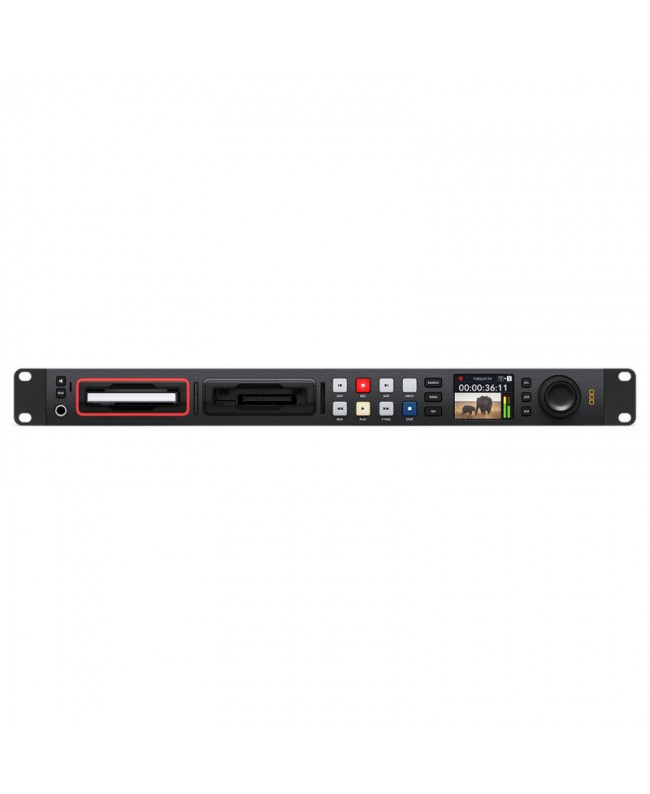

With a larger 19 and #34; rack-mount design, Hyper. Deck Studio HD Pro offers the same features as the Plus version and more. In addition to the two SD card slots found on the smaller models, it also features two SSD slots, allowing you to move media between Hyper. Deck Studio decks. It features convenient transport buttons and a machined metal dial with electronic clutch to limit rotation in shuttle mode. There are buttons for selecting jog, shuttle, or scroll mode, and the rear panel features new XLR timecode connectors.
Technical characteristics
SDI video inputs: 1
SDI video outputs: 2
SDI monitor outputs: 1
SDI rates: 270 Mb, 1.5G, 3G, 6G
HDMI 2.0 video inputs: 1
HDMI 2.0 video outputs: 1
Built in speaker: mono
Audio output: 1 x 6.35 mm headphone jack
Screen: 2.2 LCD
Time code connections: 1 x XLR in, 1 x XLR out
Reference connections: 1 x BNC in, 1 x BNC out, Tri-Sync or Black Burst
SDI audio inputs: 16 channels embedded audio
SDI audio outputs: 16 channels embedded audio
HDMI audio inputs: 8 channels embedded audio
HDMI audio outputs: 8 channels embedded audio
Remote control: 1 x RS-422 in, 1 x RS-422 out
Recorder configuration: via user interface or Blackmagic HyperDeck Ethernet protocol
Ethernet: 1 Gb/s
Computer interface: 1 x USB type C 3.0 up to 5 Gb/s for external drive recording, webcam out, software configuration and updates
Standards
SD video standards: 720 x 486i 59.94 NTSC, 720 x 576i 50 PAL
HD video standards: 1280 x 720p 50, 1280 x 720p 59.94, 1280 x 720p 60, 1920 x 1080i 50, 1920 x 1080i 59.94, 1920 x 1080i 60, 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60, 1920 x 1080psf 23.98, 1920 x 1080psf 24, 1920 x 1080psf 25, 1920 x 1080psf 29.97, 1920 x 1080psf 30
2K DCI video standards: 2048 x 1080p 23.98 DCI, 2048 x 1080p 24 DCI, 2048 x 1080p 25 DCI, 2048 x 1080p 29.97 DCI, 2048 x 1080p 30 DCI
Ultra HD video standards: 3840 x 2160p 23.98, 3840 x 2160p 24, 3840 x 2160p 25, 3840 x 2160p 29.97, 3840 x 2160p 30
4K DCI video standards: 4096 x 2160p 23.98 DCI, 4096 x 2160p 24 DCI, 4096 x 2160p 25 DCI, 4096 x 2160p 29.97 DCI, 4096 x 2160p 30 DCI
SDI metadata support: HD RP188 and closed captioning CEA-708, HDR metadata supported on SDI
Supported HDMI formats: 720 x 486i 59.94 NTSC, 720 x 576i 50 PAL, 1280 x 720p 50, 1280 x 720p 59.94, 1280 x 720p 60, 1920 x 1080i 50, 1920 x 1080i 59.94, 1920 x 1080i 60, 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60, 2048 x 1080p 23.98 DCI, 2048 x 1080p 24 DCI, 2048 x 1080p 25 DCI, 2048 x 1080p 29.97 DCI, 2048 x 1080p 30 DCI, 3840 x 2160p 23.98, 3840 x 2160p 24, 3840 x 2160p 25, 3840 x 2160p 29.97, 3840 x 2160p 30, 4096 x 2160p 23.98 DCI, 4096 x 2160p 24 DCI, 4096 x 2160p 25 DCI, 4096 x 2160p 29.97 DCI, 4096 x 2160p 30 DCI
Audio sampling: 24 bit, 48 kHz sample rate
Video sampling: 4:2:2 YUV
Color precision: 10 bit
Color space: REC 601, REC 709, REC 2020, 33 point 3D LUTS can be applied to SDI monitor out
Multi rate support: auto detection of SD, HD and 6G SDI
Copy protection: HDMI input is unable to capture from copy protected HDMI sources, always confirm copyright ownership before capture or distribution of content
Media
Media: 2 x 2.5 disc slots, 2 x SD card slots, 1 x USB C 3.0 expansion port for external recording of SD, HD, 2K DCI, Ultra HD and 4K DCI
Media type: SATA II or SATA III 2.5 solid state media, UHS I and UHS II SD cards
Media format: can format media to ExFAT Windows or Mac or HFS+ Mac file systems
Supported codecs
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160 x 3840p 30, playback only of ProRes 4444 QuickTime up to 1920 x 1080p 60 with auto routing of fill and key over SDI A and B outputs, DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 1280 x 720p and 1920 x 1080p HD formats up to 60 fps, DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160 x 3840p formats up to 30 fps, H.264 SDI 4:2:2 10 bit, H.264 high 4:2:0 8 bit, H.264 medium 4:2:0 8 bit, H.264 low 4:2:0 8 bit for all formats up to 1920 x 1080p 60.
Control
Built in control panel: 16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 color display
External control: RS-422 deck control, SDI start or stop, time code run, includes Blackmagic HyperDeck Ethernet protocol, supports remote FTP file upload
Software
Software included: Blackmagic OS, Blackmagic HyperDeck Setup, internal software upgrade, loaded at system start or via Blackmagic HyperDeck Setup using USB port
Operating systems
Mac 13.0 Ventura, Mac 14.0 Sonoma or later
Windows 10, 64 bit
Displays
Built in 2.2 LCD for video, audio and time code monitoring and menu settings. LED bezel indicator lights around SSD media slots and LED indicator lights above the SD media slots
Power requirements
Power supply: 1 x internal 100 - 240 VAC 50/60 Hz
External power: 1 x 4 pin XLR 12 VDC in for external power supply or battery use
