Blackmagic Design Micro Converter BiDirect SDI to HDMI 3G wPSU Video Signal Converters
  • -5%

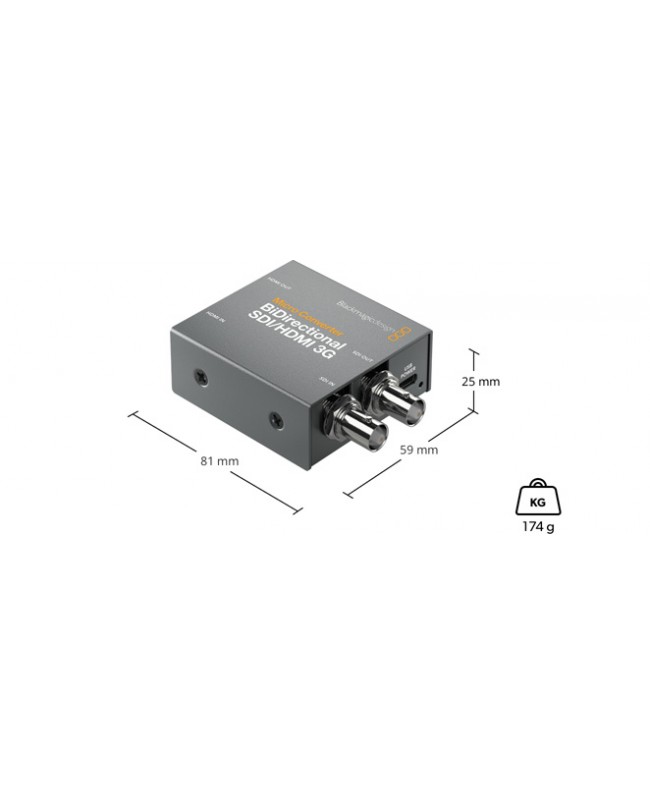

Blackmagic Design Micro Converter BiDirect SDI to HDMI 3G wPSU

€103.00
€98.00 -5%
Tax included
Lowest price within the last 30 days: €98.00

Designed for professional monitoring, with 17 point 3D LUT for calibrating monitors with the 3D LUT available on the SDI loop out! Supports video and DCI rates including 1080p24, 1080p47 and 1080p48. Includes AC power supply with international socket adaptors.

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 29/04/2025? Order within 3 hours and 6 minutes

GFP

We will plant 1 tree and protect part of a tropical rainforest for every order placed on our website.

See our impact in real-time
Compare

wishlist

Blackmagic Design Micro Converter BiDirect SDI to HDMI 3G wPSU



Get the world’s smallest bidirectional broadcast quality converter! Convert SDI to HDMI and at the same time HDMI to SDI, even in different formats! Plus it supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers!

Connections

  • SDI Video Inputs 1 x SD, HD or 3G-SDI.
  • SDI Video Outputs Automatically matches the HDMI video input.
  • HDMI Video Inputs HDMI Type A in.
  • HDMI Outputs HDMI Type A out.
  • Multi Rate Support Auto detection of SD or HD.
  • Updates, Configurations and Power USB Type‑C.
  • Reclocking Yes

Standards

  • SDI Video Standards 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  • 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
  • 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
  • 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI SDI Compliance
  • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M  Video Rates
  • SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility.
  • SDI Color Precision 4:2:2
  • SDI Color Space YUV
  • SDI Auto Switching Automatically detects SD, HD and 3G-SDI
  • HDMI Video Standards 525i29.97 NTSC, 625i50 PAL
  • 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  • 1080i50, 1080i59.94, 1080i60
  • HDMI Color Precision 4:2:2
  • HDMI Color Space YUV

Copy Protection

  • HDMI input is unable to capture from copy protected HDMI sources.
  • Always confirm copyright ownership before capture or distribution of content.

Camera Control

  • Bidirectional signal conversion supports Blackmagic Camera Control and Tally.

Settings Control

  • Via MacOS™ and Windows™ software utility connected by USB.

Operating Systems

  • Mac 10.15 Catalina,
  • Mac 11.1 Big Sur or later.
  • Windows 10, 64-bit.
  • Software
  • Internal software upgrade via USB.

Power Requirements

  • Power Consumption 2.5 W
  • Operational Voltage Range 4.4 to 5.25V DC

Environmental Specifications

  • Operating Temperature 0° to 40° C (32° to 104° F)
  • Storage Temperature -20° to 60° C (-4° to 140° F)
  • Relative Humidity 0% to 90% non-condensing

What's Included

  • Micro Converter BiDirectional SDI/HDMI 3G

CONVBDC/SDI/HDM1
