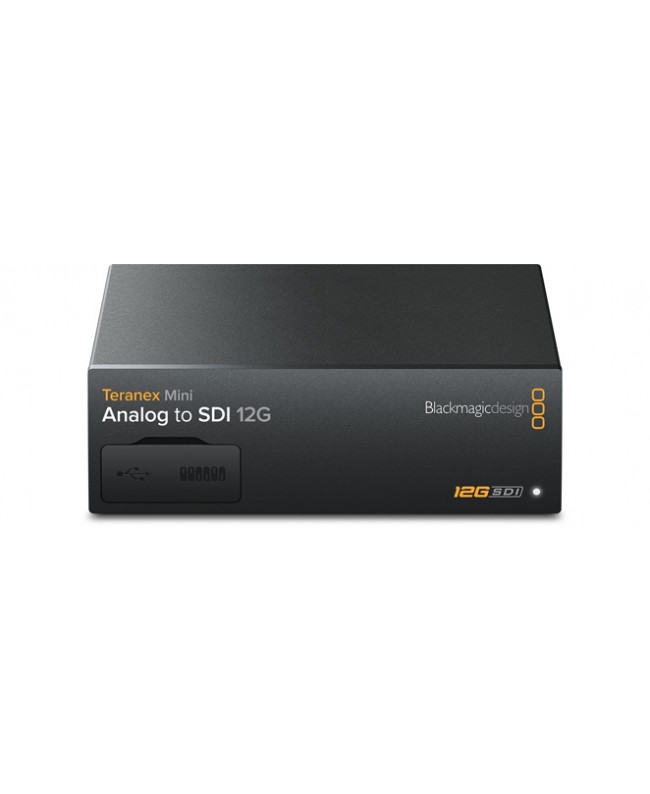

Blackmagic Design Teranex Mini Analog to SDI 12G

Connections

• SDI Video Outputs 2 x 12G-SDI outputs.
• Analog Video Inputs Composite, Y/C or Component.
• Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
• Analog Audio Inputs 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
• Digital Audio Inputs 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
• Multi Rate Support SDI output switchable between HD for composite and S-Video and Ultra HD for component HD.
• Updates and Configuration USB or Ethernet.
• Reclocking Yes

Standards

• SD Video Standards 525i59.94 NTSC, 625i50 PAL
• HD Video Standards
• 720p50, 720p59.94, 720p60
• 1080i50, 1080i59.94, 1080i60
• 1080p25, 1080p29.97, 1080p50, 1080p59.94
• Ultra HD Video Standards 2160p25, 2160p29.97, 2160p50, 2160p59.94
• SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
• SDI Video Rates SDI video connections are switchable between standard definition and high definition.
• SDI Video Sampling 4:2:2 and 4:4:4.
• SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit.
• SDI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
• SDI Color Space REC 601, REC 709
• Analog Video Standards 525i59.94 NTSC, 625i50 PAL
• Analog Color Space REC 601, REC 709
• Analog Color Precision 4:2:2

Software

• Software Control
• Mac™ and Windows™ software upgrade via USB and Ethernet
• Internal Software Upgrade
• Via included updater application.

Operating Systems

• Mac 10.15 Catalina,
• Mac 11.1 Big Sur or later.
• Windows 10, 64-bit.

Settings Control

• Basic Settings Control
• Mini Switches, USB and Ethernet via free software utility
• Optional Front Panel Control
• Front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power Requirements

• Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
• Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet).
• Power Consumption 16 Watts
• Operational Voltage Range 100 - 240V AC

Environmental Specifications

• Operating Temperature 0° to 40°C (32° to 104°F)
• Storage Temperature -20° to 60°C (-4° to 140°F)
• Relative Humidity 0% to 90% non-condensing

What's Included

• Teranex Mini Analog to SDI 12G
• Welcome wallet with QR code for software download
