Blackmagic Design Micro Converter HDMI to SDI 12G wPSU Video Signal Converters
  • -14%

Blackmagic Design Micro Converter HDMI to SDI 12G wPSU

€186.00
€159.00 -14%
Tax included
Lowest price within the last 30 days: €159.00

This model is perfect for connecting Ultra HD HDMI cameras and computers to professional 12G-SDI equipment! Supports level A or level B formats in 3G video formats, plus supports DCI film rates. Includes AC power supply with international socket adaptors.

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 07/05/2025? Order within 3 hours and 7 minutes

Free shipping

GFP

We will plant 1 tree and protect part of a tropical rainforest for every order placed on our website.

See our impact in real-time
Compare

wishlist

Blackmagic Design Micro Converter HDMI to SDI 12G wPSU



The world’s smallest HDMI to 12G-SDI broadcast quality converter! Blackmagic Micro Converter HDMI to SDI 12G is a miniaturized broadcast quality video converter that’s perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 12G-SDI outputs which can be set to level A or B for 3G-SDI signals. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080i, 2160p rates, including 4Kp24/ 47.95/48 DCI. You get a universal power supply with international AC plug adapters, or you can power it over USB from a laptop or a mobile phone charger.

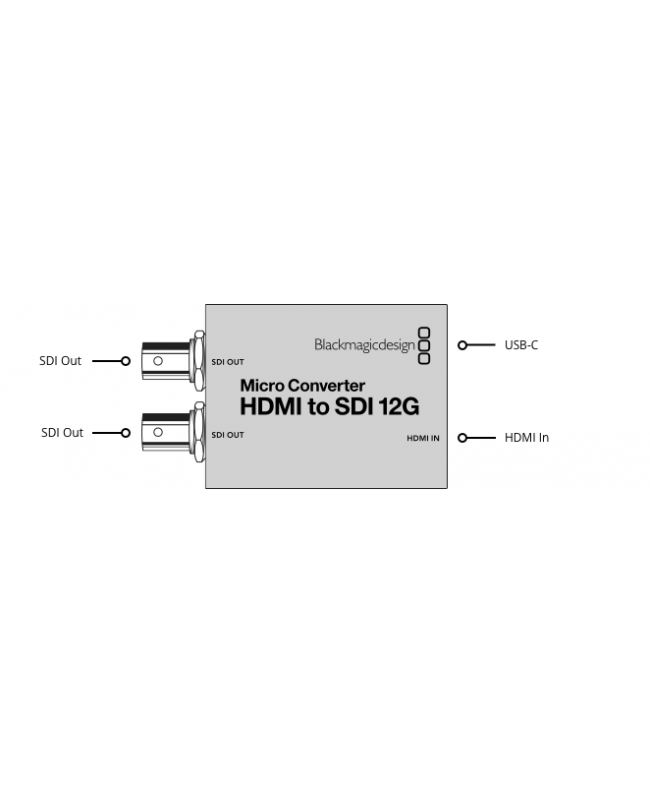

Connections

  • SDI Video Outputs 2
  • Automatically matches the HDMI input.
  • HDMI 2.0 Video Outputs 1 x type A.
  • SDI Rates 270Mb, 1.5G, 3G, 6G, 12G.
  • Multi Rate Support Auto detection of SD, HD, 2K, Ultra HD and 4K.
  • Updates, Configurations and Power USB Type‑C.
  • Reclocking Yes

Standards

  • SD Video Standards 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  • 1080i50, 1080i59.94, 1080i60
  • Ultra HD Video Standards
  • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards
  • 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
  • SDI Compliance
  • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
  • SDI Video Rates
  • SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
  • SDI Color Precision
  • 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
  • SDI Color Space
  • YUV
  • SDI Auto Switching
  • Automatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G‑SDI.
  • HDMI Video Standards
  • 525i59.94 NTSC, 625i50 PAL
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  • 1080i50, 1080i59.94, 1080i60
  • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
  • 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
  • HDMI Color Precision
  • 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
  • HDMI Color Space YUV

Copy Protection

  • HDMI input is unable to capture from copy protected HDMI sources.
  • Always confirm copyright ownership before capture or distribution of content.

Settings Control

  • Via MacOS™ and Windows™ software utility connected by USB.

Operating Systems

  • Mac 10.15 Catalina,
  • Mac 11.1 Big Sur or later.
  • Windows 10, 64-bit.

Software

  • Internal software upgrade via USB.

Power Requirements

  • Power Supply +5V universal power supply included with international socket adapters for most countries
  • Power Consumption 4W max.
  • Operational Voltage Range 4.4V to 5.25V DC

Environmental Specifications

  • Operating Temperature 0° to 40° C (32° to 104° F)
  • Storage Temperature -20° to 60° C (-4° to 140° F)
  • Relative Humidity 0% to 90% non-condensing

What's Included

  • Micro Converter HDMI to SDI 12GwPSU
  • +5V universal power supply with international socket adapters.


CONVCMIC/HS12G/W

Data sheet
