Blackmagic Design Micro Converter SDI to HDMI 12G wPSU Video Signal Converters
  • -40%

Blackmagic Design Micro Converter SDI to HDMI 12G wPSU

€254.00
€154.00 -40%
Tax included
Lowest price within the last 30 days: €154.00

Powerful 12G-SDI converter designed for professional SD, HD and Ultra HD monitoring, with 33 point 3D LUT for calibrating monitors with the 3D LUT available on the SDI loop out! Supports DCI rates. Includes AC power supply with international socket adaptors.

Qty

In Stock

Delivery

Do You want Your order by Tomorrow, Friday, 22/05/2026? Order within 8 hours and 34 minutes

Free shipping
In Store Pick Up

Compare

wishlist

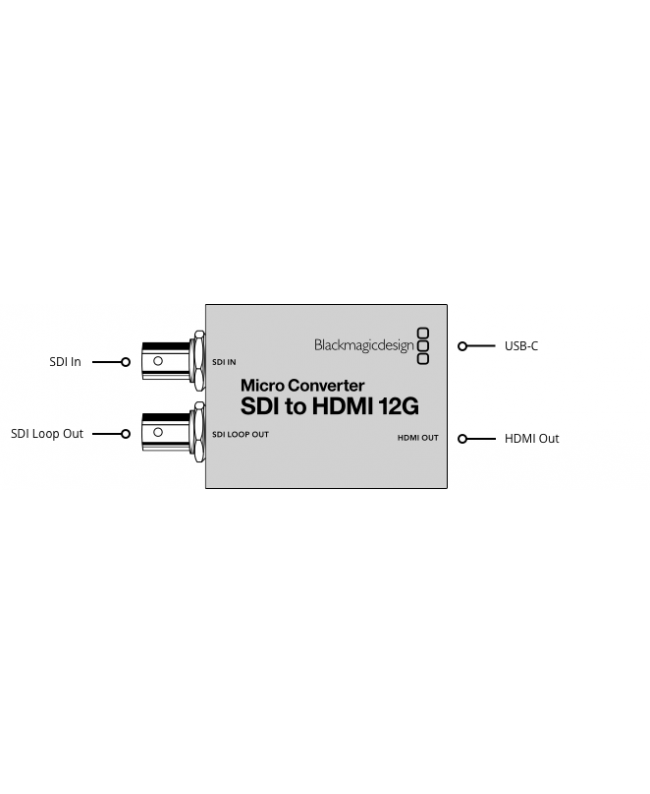

Blackmagic Design Micro Converter SDI to HDMI 12G wPSU



The world’s smallest 12G-SDI to HDMI broadcast quality converter! Blackmagic Micro Converter SDI to HDMI 12G is a miniaturized broadcast quality video converter that’s been specifically designed for professional monitoring. It includes a 33 point 3D LUT for color calibrating any monitor, projector or television. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080PsF, 1080i and 2160p rates, including 4K DCI at 24/47.95/48. You get a universal power supply with international AC plug adapters, or you can power it over USB from a television or a mobile phone charger.

Connections

  • SDI Video Inputs 1
  • SDI Video Outputs 1 x loop out.
  • HDMI 2.0 Video Outputs 1 x type A.
  • SDI Rates 270Mb, 1.5G, 3G, 6G, 12G.
  • Multi Rate Support Auto detection of SD, HD, 2K, Ultra HD and 4K.
  • Updates, Configurations and Power USB Type‑C.

Standards

  • SD Video Standards 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  • 1080PsF25, 1080PsF29.97, 1080PsF30
  • 1080i50, 1080i59.94, 1080i60 2K Video Standards
  • 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
  • 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards
  • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards
  • 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
  • SDI Compliance  SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
  • SDI Video Rates SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
  • SDI Color Precision 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
  • SDI Color Space YUV
  • SDI Auto Switching Automatically detects SD, HD level A or B for 3G‑SDI, 2K DCI, Ultra HD and 4K DCI.
  • HDMI Video Standards
  • 525i59.94 NTSC, 625i50 PAL
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  • 1080i50, 1080i59.94, 1080i60
  • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
  • 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
  • HDMI Color Precision
  • 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
  • HDMI Color Space YUV

Settings Control

  • Via MacOS™ and Windows™ software utility connected by USB.

Operating Systems

  • Mac 10.15 Catalina,
  • Mac 11.1 Big Sur or later.
  • Windows 10, 64-bit.

Software

  • Internal software upgrade via USB.

Power Requirements

  • Power Supply +5V universal power supply included with international socket adapters for most countries.
  • Power Consumption 4W max.
  • Operational Voltage Range 4.4V to 5.25V DC

Environmental Specifications

  • Operating Temperature 0° to 40° C (32° to 104° F)
  • Storage Temperature -20° to 60° C (-4° to 140° F)
  • Relative Humidity 0% to 90% non-condensing

What's Included

  • Micro Converter SDI to HDMI 12G wPSU
  • +5V universal power supply with international socket adapters.

CONVCMIC/SH12G/W

Data sheet
