Blackmagic Design Mini Converter 3G-SDI to fiber converter Video Signal Converters

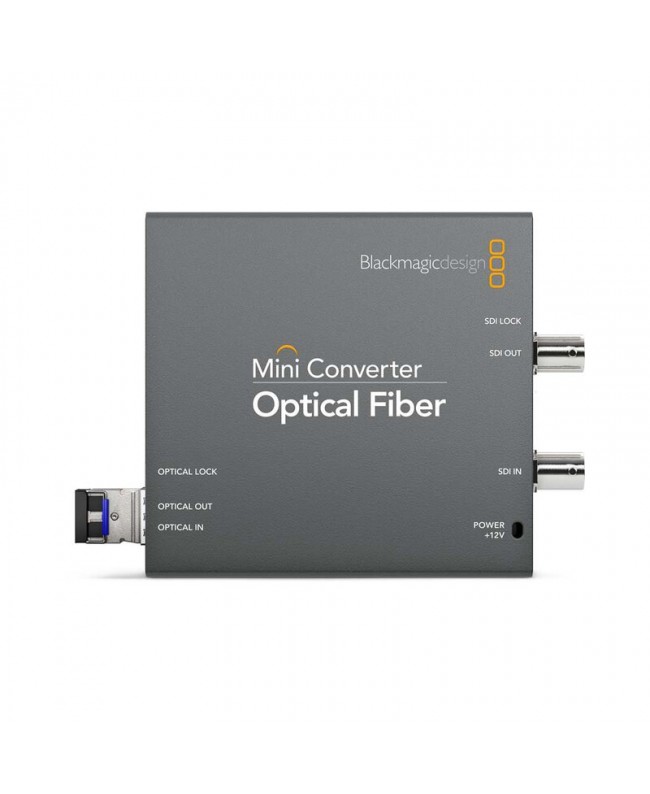

Blackmagic Design Mini Converter 3G-SDI to fiber converter


€224.00
Tax included

3G-SDI to fiber converter, bidirectional


Qty

In Stock

Delivery

Do You want Your order by Wednesday, 21/01/2026? Order within 6 hours and 49 minutes

Free shipping


wishlist

Blackmagic Design Mini Converter 3G-SDI to fiber converter



Optical Fiber Mini Converter, converts 3 G-SDI signals to optical fiber and vice versa at the same time and in both directions, even with different video standards that proceed in each direction. Thanks to the multi-rate 3 G-SDI connections, it is compatible with all SD and HD equipment and formats, with automatic switching between them. Any standard SD, HD and 3 G SFP optical fiber module can be installed, to allow SDI sending even with low-cost optical fiber cables, such as those commonly used for computer networks. Universal power supply included.

  • SDI video inputs: Switchable between SD, HD and 3 G-SDI
  • SDI video outputs: Automatically matches the SD, HD and 3 G-SDI video input on the optical fiber
  • Optical fiber video inputs: 1 X 10 bit SD / HD / 3 G-SDI switchable
  • Optical fiber video outputs: 1 X 10 bit SD / HD / 3 G-SDI switchable
  • Optical fiber audio inputs: 16 Channel embedded
  • Optical fiber audio outputs: 16 Channel embedded
  • Multi rate support: Auto detection of HD or standard definition SDI inputs
  • Reclocking: Yes
  • SDI video standards: 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC
  • HD video standards: 720P 50, 720p 59.94, 720p 60, 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080i 50, 1080i 59.94, 1080i 60, 2048 x 1080PsF 23.98, 2048 x 1080p 23.98, 2048 x 1080PsF 24, 2048 x 1080p 24, 2048 x 1080PsF 25, 2048 x 1080p 25
  • SDI compliance: SMPTE 259 M, SMPTE 292 M, SMPTE 296 M, SMPTE 424 M-B, ITU-R BT.656, ITU-R BT.601 and SMPTE 297 M for optical fiber SDI
  • SDI video rates: SDI video connections are switchable between standard definition and high definition
  • SDI video sampling: 4:2:2
  • SDI audio sampling: Television standard sample rate of 48 kHz and 24-bit
  • SDI color precision: 4:2:2
  • SDI color space: YUV
  • SDI auto switching: Automatically detects SD, HD or 3 G-SDI
  • ASI support: Yes
  • Operating systems: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later, Windows 8.1 or Windows 10
  • Power consumption: 3.84 W
  • Operational voltage range: 12 VDC
  • Operating temperature: 0 To 40 °C
  • Storage temperature: -20 To 45 °C
  • Relative humidity: 0 To 90% non-condensing

CONVMOF

Data sheet
