Blackmagic Design Mini Converter UpDownCross HD Video Signal Converters
  • New

Blackmagic Design Mini Converter UpDownCross HD

€195.00
Tax included

Up, down and cross converter from SD / HD to SD / HD video format

Qty

In Stock

Delivery

Do You want Your order by Thursday, 12/02/2026? Order within 9 hours and 0 minutes

Free shipping

Compare

wishlist

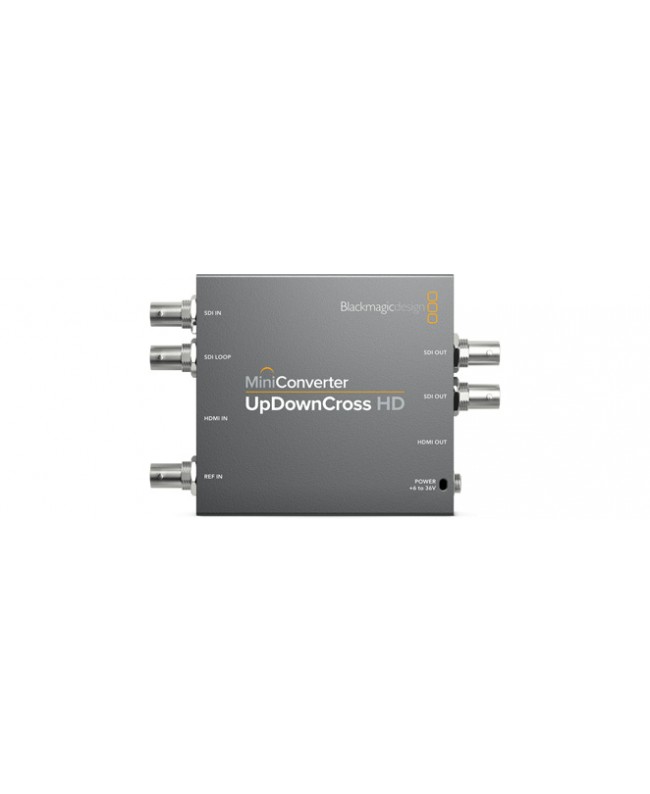

Blackmagic Design Mini Converter UpDownCross HD







Mini Converter UpDownCross HD is a device for converting any SD or HD video format to any other SD or HD video format, compatible with all formats up to 1080p60. It features both SDI and HDMI inputs and outputs, plus a reference input for built-in re-sync, high-quality Teranex conversion algorithms, automatic audio delay for perfect AV sync, international power, and much more.

  • Technical characteristics: Connections
  • SDI video inputs: 1 X SD, HD o 3 G-SDI e 1 x external reference input
  • HDMI video input: 1 X HDMI type A connector
  • SDI video outputs: 1 X loop out e 2 x outputs
  • HDMI video output: HDMI type A out, output supports EDID of the monitor
  • SDI rates: 270 Mb, 1.5 G, 3 G
  • Reference input: Black Burst e Tri-Sync per SD e HD
  • Multi rate support: Auto detection of HD or standard definition SDI inputs
  • Updates and configuration: USB
  • Reclocking: Yes
  • SD video standards: 525I 59.94 NTSC, 625i 50 PAL
  • HD video standards: 720P 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080Psf 23.98, 1080Psf 24, 1080Psf 25, 1080Psf 29.97, 1080Psf 30, 1080i 50, 1080i 59.94, 1080i 60
  • HDMI input video standards: 720P 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080i 50, 1080i 59.94, 1080i 60
  • SDI compliance: SMPTE 259 M, SMPTE 292 M, SMPTE 296 M, SMPTE 372 M, SMPTE 424 M level B, SMPTE 425 M level B, ITU-R BT.656 and ITU-R BT.601
  • SDI video rates: SDI video inputs are automatically detected between standard definition, high definition and level B 3 G-SDI
  • SDI metadata support: Time Code e closed captioning
  • SDI video sampling: 4:2:2
  • SDI audio sampling: Television standard sample rate of 48 kHz and 24 bit
  • SDI color precision: 4:2:2
  • SDI color space: YUV
  • SDI auto switching: Automatically detects SD, HD or 3 G-SDI
  • Video conversion: Convert any SD and HD input to 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080i 50, 1080i 59.94, 1080i 60
  • Computer scaling: Scale DVI resolutions 640 x 480p 60, 800 x 600p 60, 1024 x 768p 60 to 525i 59.94, 625i 50, 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080i 50, 1080i 59.94, 1080i 60
  • Internal software upgrade: Via included updater application
  • Mac: MacOS 10.15 Catalina, macOS 11.1 Big Sur or later
  • Windows: Windows 10, 64 bit
  • Settings control: Mini switches
  • Power supply: +12 V universal power supply with international socket adapters for most countries
  • Power consumption: 5 W
  • Operational voltage range: 6 To 36 VDC
  • Operating temperature: 0 To 40 °C
  • Storage temperature: -20 To 45 °C
  • Relative humidity: 0 To 90% non-condensing
  • Dimensions: 135 X 24 x 92 mm
  • Weight: 0.247 kg
  • Mini Converter UpDownCross HD: 12 V universal power supply with international socket adapters

CONVMUDCSTD/HD
