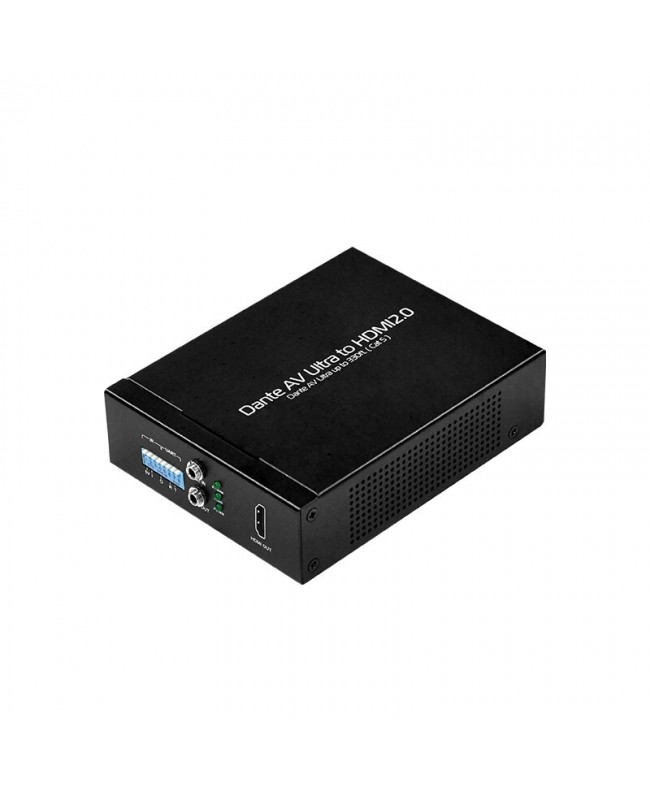

EGO Display AVMaster-4KUltra-D

4K decoder that converts / decodes video and audio signals transmitted via the Dante AV Ultra protocol to HDMI 2.0. Dante AV Ultra integrates the industry standard Dante Audio into AV-over-IP products, allowing users to route audio and video independently wherever they are needed.

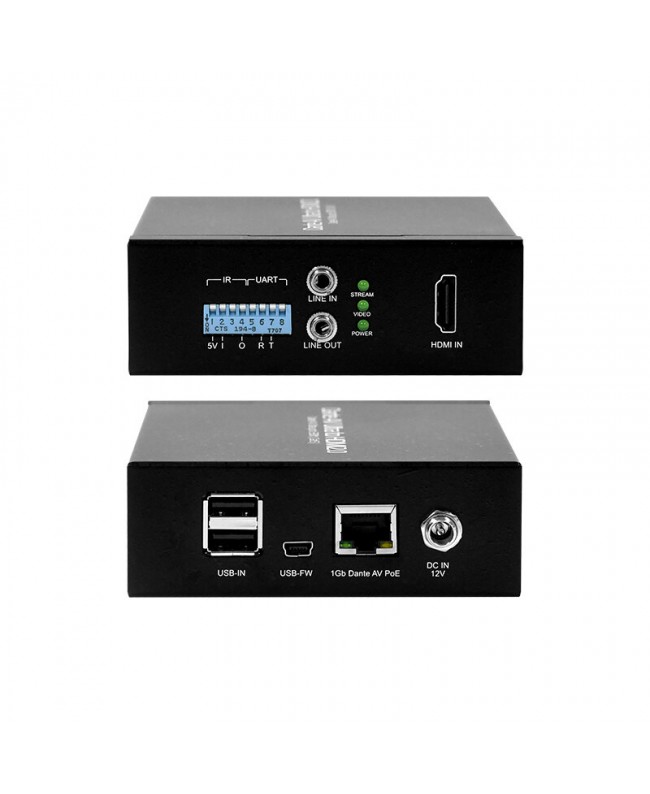

Equipped with an RJ-45 port for Dante AV Ultra, this decoder supports high-definition video up to 4K 60 4:4:4 with a very low latency of only 8 ms and lossless compression and audio streams of up to 8 channels, 24 bit, 32 - 192 kHz. Also present are input and output for analog L/R audio on 3.5 mm mini-jack. Ultra-precise video and audio synchronization is managed by Dante Controller software, making it ideal for permanent video / audio installations, concerts and sporting events, large exhibition halls and schools.

All products in the Dante AV Ultra series are compatible with the same SDK (Software Development Kit); developers can use the same set of tools and software libraries to program and integrate the decoder, regardless of the processor architecture used (X86 or ARM). API integration via DANTE DIRECTOR software.

Instead of connecting a keyboard and mouse to the device or controlling it via RS232 / 485, the EGO Display solution provides a web-based user interface to control the entire system. However, there are 2 USB ports and a third for firmware updates.

Power is supplied via an external 12 VDC 2 A power supply, but also supports PoE.
