Blackmagic Design Micro Converter SDI to HDMI 12G Video Signal Converters
  • New

Blackmagic Design Micro Converter SDI to HDMI 12G

€152.00
Tax included

SDI to HDMI converter up to 2160p 60

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 24/06/2026? Order within 5 hours and 6 minutes

Free shipping

Compare

wishlist

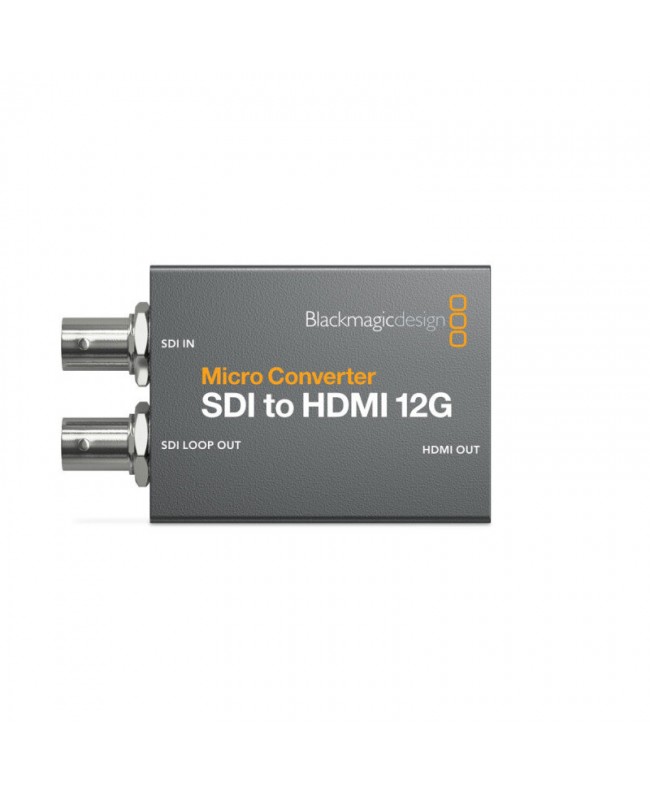

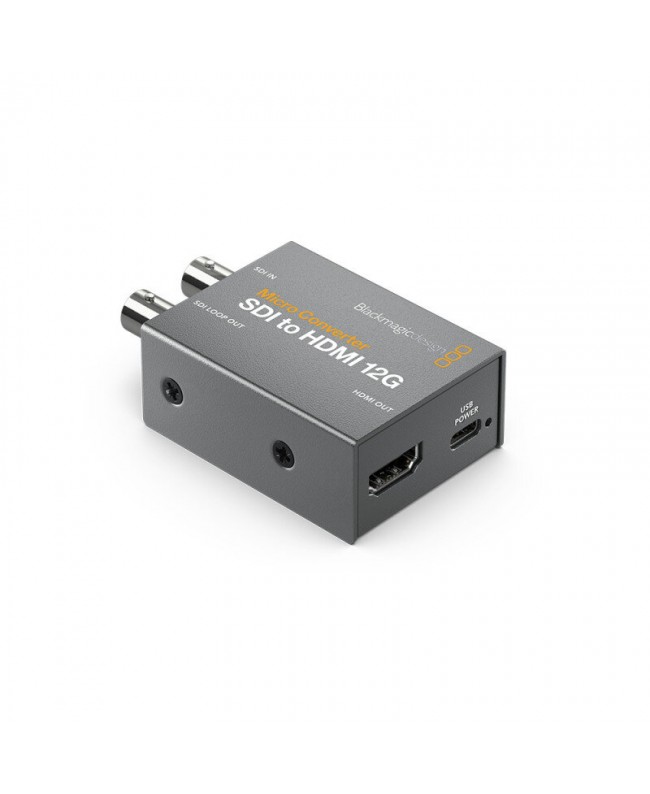

Blackmagic Design Micro Converter SDI to HDMI 12G



12G SDI to HDMI converter up to 2160p 60.

With a miniaturized yet broadcast-quality design, it and #039;s designed for professional video monitoring. It includes a 33-point 3D LUT for color calibrating monitors, projectors, and televisions. It features a standard HDMI connection and two professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080Ps. F, 1080i, and 2160p formats, including 4K DCI at 24 / 47.95 / 48.

  • Power it via USB or phone charger!
  • Technical characteristics

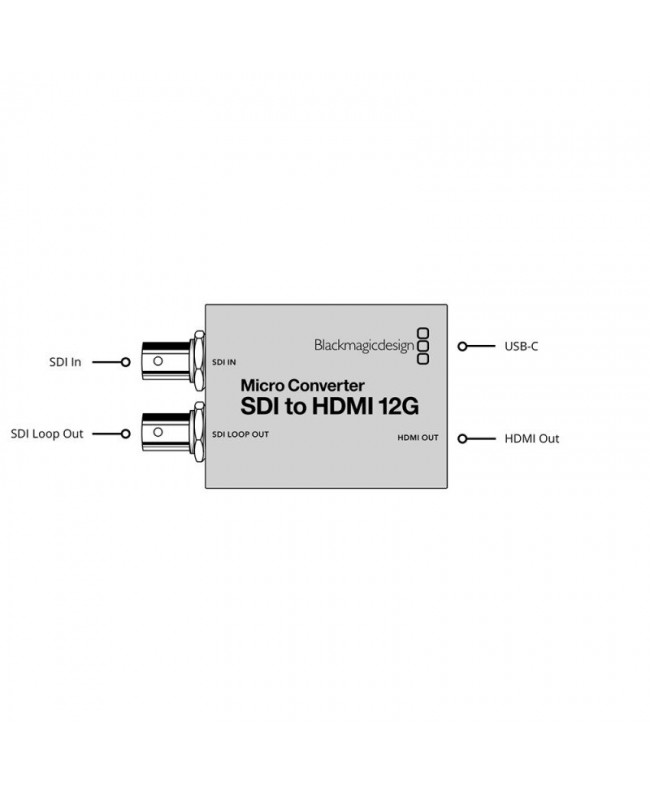

  • Connections
  • SDI video inputs: 1
  • SDI video outputs: 1 x loop out
  • HDMI output: HDMI 2.0 type A out
  • SDI rates: 270Mb, 1.5G, 3G, 6G, 12G
  • Multi rate support: auto detection of SD, HD, 2K, Ultra HD and 4K
  • Updates, configurations and power: USB type-C
  • Standards
  • SDI video standards: 525i 59.94 NTSC, 625i 50 PAL
  • HD video standards: 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 25, 1080PsF 29.97, 1080PsF 30, 1080i 50, 1080i 59.94, 1080i 60
  • 2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI
  • Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
  • 4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI and 4Kp 60 DCI
  • SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
  • SDI video rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI
  • SDI color precision: 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color
  • SDI color space: YUV
  • SDI auto switching: automatically detects SD, HD level A or B for 3G-SDI, 2K DCI, Ultra HD and 4K DCI
  • HDMI video standards: 525i 59.94 NTSC, 625i 50 PAL, 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60, 1080i 50, 1080i 59.94, 1080i 60, 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60, 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI and 4Kp 60 DCI
  • HDMI color precision: 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color
  • HDMI color space: YUV
  • Settings control
  • Via MacOS and Windows software utility connected by USB
  • Operating systems
  • Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit
  • Software
  • Internal software upgrade via USB
  • Power requirements
  • Power consumption: 4 W max.
  • Operational voltage range: 4.4 to 5.25 VDC
  • Environmental specifications
  • Operating temperature: 0° to 40° C
  • Storage temperature: -20° to 60° C
  • Relative humidity: 0% to 90% non-condensing
  • Physical specifications
  • Dimensione: 78 x 45.8 x 24.8 mm
  • Weight: 150 g

BLM-CONVCMIC/SH12G
