Blackmagic Design ATEM Camera Converter Video Signal Converters
  • New

Blackmagic Design ATEM Camera Converter

€656.00
Tax included

Optical fiber converter with Talkback, Tally and MIC inputs, internal battery

Qty

In Stock

Delivery

Do You want Your order by Friday, 03/07/2026? Order within 5 hours and 25 minutes

Free shipping

Compare

wishlist

Blackmagic Design ATEM Camera Converter



ATEM Camera Converter converts SDI or HDMI camera signals to optical fiber, allowing for up to 45 km of optical fiber connections with built-in Talkback, Tally, audio, and program return: the switcher and #039;s program feed can be sent back via optical fiber for camera monitoring.

  • This converter gives you everything you need for live production cameras, all in one!
  • Technical characteristics
  • Connections
  • SDI video input: 1 x 10 bit SD/HD switchable
  • SDI video output: 1 x 10 bit SD/HD switchable
  • HDMI video input: 1 x HDMI type A connector
  • HDMI video output: 1 x HDMI type A connector
  • Talkback audio: 1 x 3.5 mm stereo connector for talkback microphone. 1 x 3.5 mm stereo connector for stereo headphones, compatible with iPhone headsets
  • Analog audio: 2 x balanced 1/4 TRS connectors, stereo microphone level IN, replaces audio from SDI in or HDMI in when connected
  • Optical fiber video input: 1 x single mode SD / HD switchable with LC connector
  • Optical fiber video output: 1 x single mode SD / HD switchable with LC connector
  • Optical fiber audio input: 1 x single mode camera audio input with LC connector, channels 1 and 2 are camera audio, channels 15 and 16 are intercom audio
  • Optical fiber audio output: 1 x single mode camera audio output with LC connector, channels 1 and 2 are camera audio, channels 15 and 16 are intercom audio
  • Computer interface: 1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control
  • Standards
  • SDI format support: 525i 59.94 NTSC, 625i 50 PAL, 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
  • 2K format support: 2K DCI 24p, 2K DCI 25p
  • HDMI format support: 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080i 50 / 59.94 / 60
  • SDI compliance: SMPTE 259M, SMPTE 292M
  • Audio sampling: television standard sample rate of 48 kHz, 24 bit A/D conversion
  • Video sampling: 4:2:2
  • Color precision: 10 bit
  • Color space: REC 601, REC 709
  • Multiple rate support: SDI and HDMI are switchable between standard definition and high definition
  • Software
  • Software included: converter utility
  • Operating systems
  • Mac: macOS 10.11 El Capitan, macOS 10.12 Sierra or later
  • Windows: Windows 8.1, Windows 10
  • Power requirements
  • Power supply: 12 V power supply included with international socket adaptors for all countries
  • Environmental specifications
  • Operating temperature: 0 to 40 °C
  • Storage temperature: -20 to 45 °C
  • Relative humidity: 0 to 90% non-condensing
  • Physical specifications

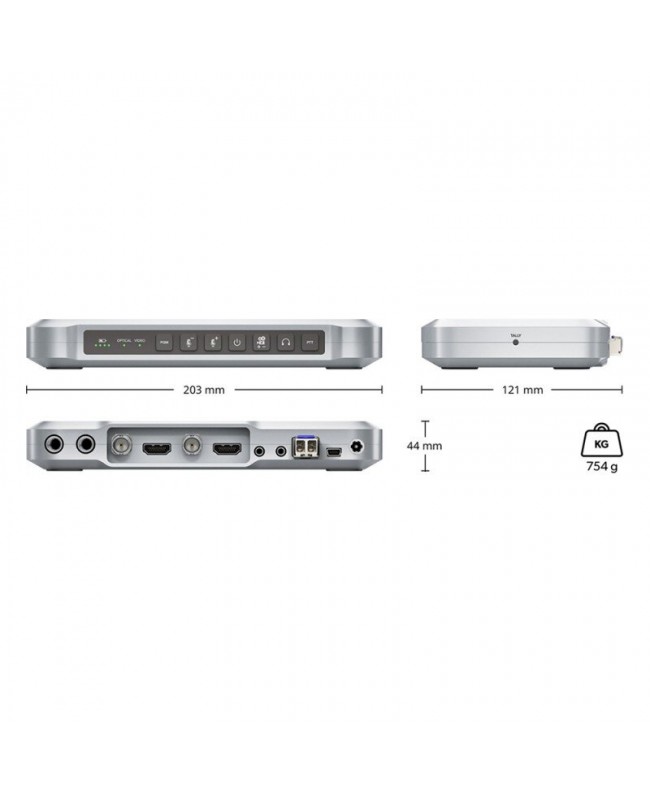

  • Dimensions: 20.3 x 4.4 x 12.1 cm
  • Weight: 0.754 kg
  • What's included
  • ATEM Camera Converter
  • Welcome wallet with QR code for software download

BLM-SWRCONV
