Datavideo DAC-60 Video Signal Converters
  • -26%
  • New

Datavideo DAC-60


€677.00
€501.00 -26%
Tax included
Lowest price within the last 30 days: €501.00

SDI to VGA Converter


Out of Stock

Free shipping


wishlist

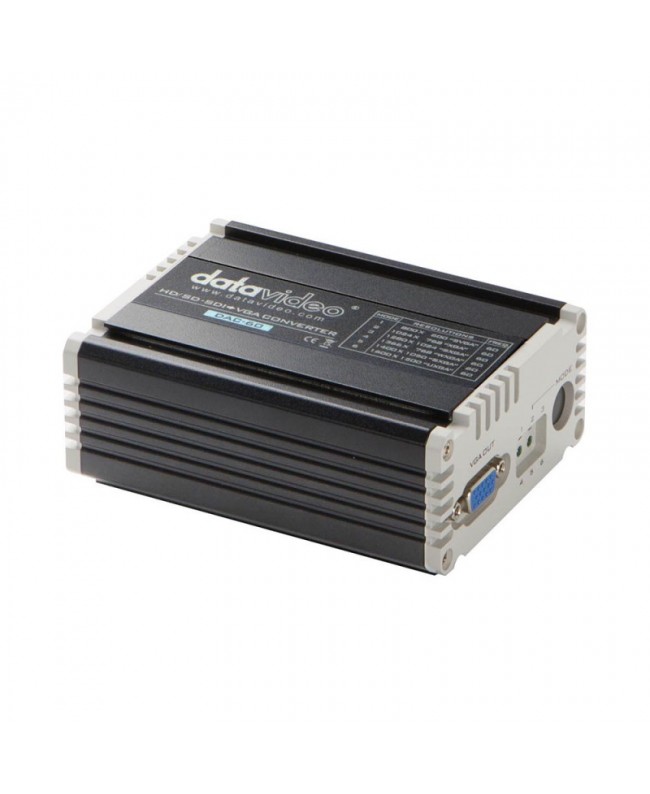

Datavideo DAC-60



Wide range conversion for great compatibility: the DAC-60 supports 3G/HD/SD-SDI to VGA conversion, suits projector and LCD screen display really well.

SDI loop through is unaffected by the adjustments of resolution setting to the VGA signal, users can connect the original video signal to other terminal device.

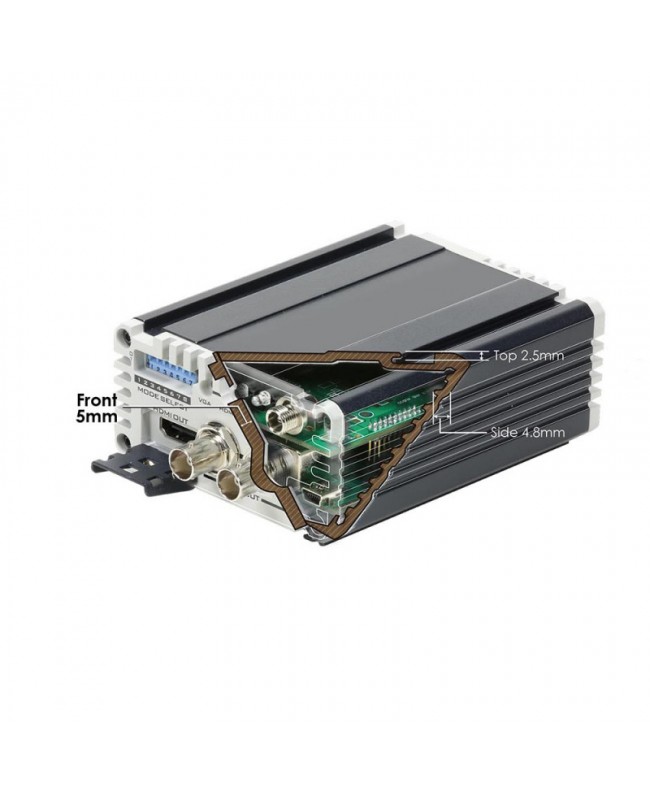

Aluminum Alloy and Heavy Duty Design, super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

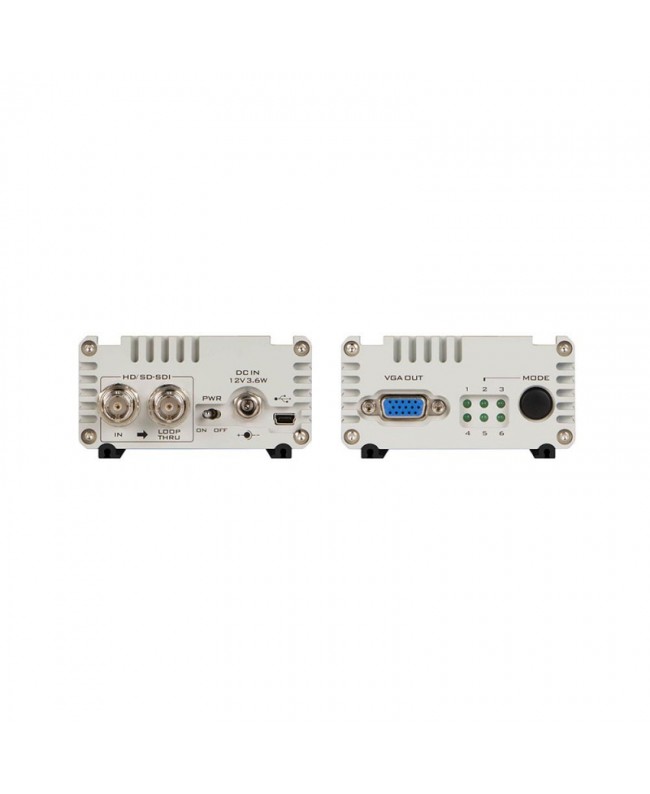

  • Conversion: 3G/HD/SD-SDI to VGA
  • Video Inputs: 1x 3G/HD/SD-SDI
  • Loop Through: Yes
  • Video Outputs: 1x VGA
  • Supported Video Input Formats: 1080p (23.98/24/25/29.97/30/50/59.94/60 Hz),
  • 1080I (50/59.94/60 Hz), 720p (50/59.94/60 Hz),
  • 576I (PAL), 480i (NTSC)
  • Output Resolutions: 1920x1200 (60 Hz), 1920 x 1080(60 Hz), 1600x1200(60 Hz), 1400x1050(60 Hz), 1366x768(60 Hz), 1280x1024(60 Hz), 1280x800 (60 Hz), 1024x768 (60 Hz), 800x600 (60 Hz)
  • Equalizer: Yes
  • Reclock: Yes
  • SDI Cable Drive: Yes
  • Dimension (L x W x H): 112 x 85 x 45 mm
  • Weight: 0.4 kg
  • Operating Temp. Range: 0~40 °C
  • Power: DC 12 V, 3.6W
  • What's in the Box: 1 x DAC-60 product
  • 1 X AD Switch DC 12 V
  • 1 X Thank You Card
