Datavideo DAC-70 Video Signal Converters
  • -26%
  • New

Datavideo DAC-70

€974.00
€725.00 -26%
Tax included
Lowest price within the last 30 days: €725.00

Ultra-wide range video scaler, VGA / HDMI / SDI to HDMI / SDI, multi-format up / down / cross

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 24/06/2026? Order within 3 hours and 42 minutes

Free shipping

Compare

wishlist

Datavideo DAC-70



The DAC-70 supports a multitude of video resolutions ranging from SD to Full HD. If you need to connect two otherwise incompatible video devices together, the and #34;Swiss Army knife and #34; of converters has you covered.

Keep the embedded audio in the stream, or replace the audio using the RCA inputs. Adjustable brightness, contrast, hue, and saturation settings. Use the DAC Center Utility software to adjust the video output. Simply connect a PC computer to the DAC-70 via USB.

Built-in distribution amplifier: the DAC-70 always scales, converts, and outputs video to 3 ports (2 x SDI and 1 x HDMI).

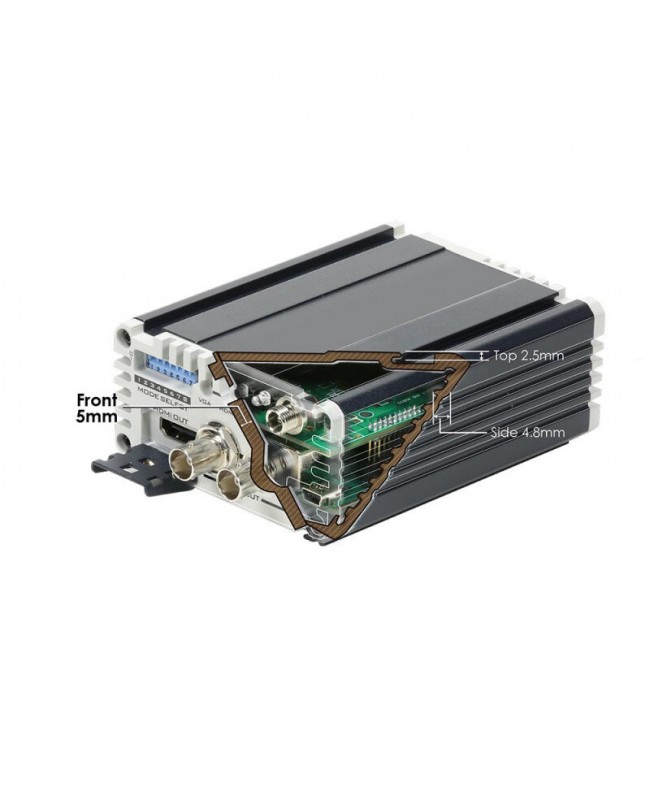

The body is made of aluminum alloy according to a and #34;heavy duty and #34; design, super robust and durable. Low heat dissipation, ideal for long-lasting operation in a normal ventilated environment.

  • Ultra wide range scaler for excellent compatibility.
  • Conversion: VGA / HDMI / SDI to HDMI / SDI
  • Multi-format up / down / cross

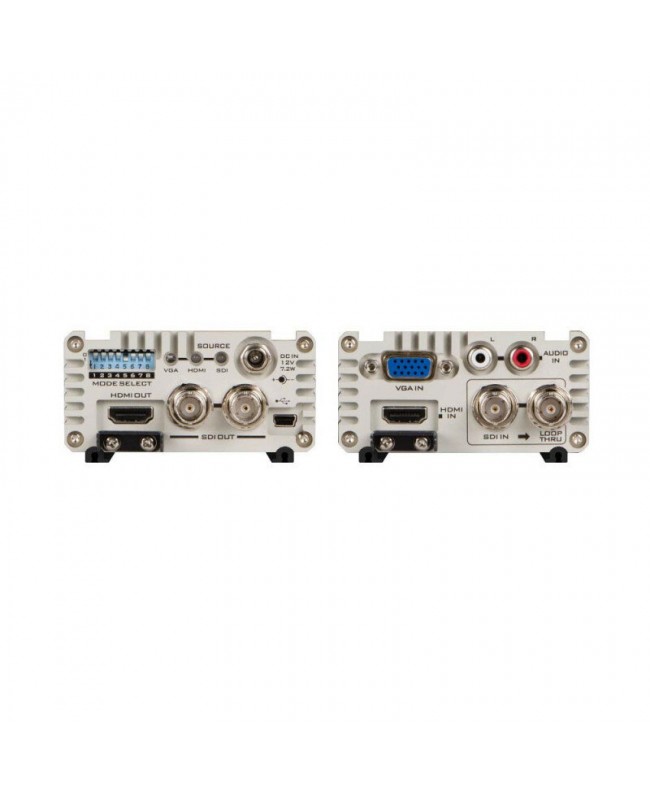

  • Video inputs: 1 x VGA, 1 x HDMI,
  • 1 X 3G / HD / SD-SDI (support Level A and Level B)
  • Loop through: yes
  • Video outputs: 2 x 3G / HD / SD-SDI with embedded audio (support Level A and Level B)
  • 1 X HDMI
  • Audio inputs: 2 x RCA (stereo pair), 2 x SDI / HDMI audio embedded
  • Audio outputs: SDI embedded audio up to 8 CH, 48 kHz, PCM audio
  • HDMI embedded audio up to 8 CH, 48 kHz, PCM audio
  • Supported video input formats: 1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz),
  • 1080Psf (23.98 / 24 / 25 / 29.97 / 30 Hz), 1080i (50 / 59.94 / 60 Hz), 720p (50 / 59.94 / 60 Hz),
  • 625I, 576p, 576i, 525i, 480p, 480i, 1920 x 1080 (60 Hz), 1280 x 720 (60 Hz), 1600 x 1200 (60 Hz), 1400 x 1050 (60 Hz), 1366 x 768 (60 Hz), 1280 x 1024 (60 Hz), 1024 x 768 (60 Hz), 800 x 600 (60 Hz)
  • Output resolutions: 1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz), 1080i (50 / 59.94 / 60 Hz), 720p (50 / 59.94 / 60 Hz), 625i, 525i
  • Equalizer: yes
  • Reclock: yes
  • SDI cable drive: yes
  • Operating temp. range: 0 - 40 °C
  • Power: 12 VDC, 6W
  • Dimension (L x W x H): 112 x 85 x 45 mm
  • Weight: 0.4 kg
  • What's in the box: 1 x DAC-70
  • 1 X AD Switch 12 VDC
  • 1 X DIP switch pin 8 label
  • 1 X thank you card
