Datavideo DAC-8PA Video Signal Converters
  • -26%
  • New

Datavideo DAC-8PA

€389.00
€288.00 -26%
Tax included
Lowest price within the last 30 days: €288.00

SDI to HDMI Converter

Out of Stock

Free shipping

Compare

wishlist

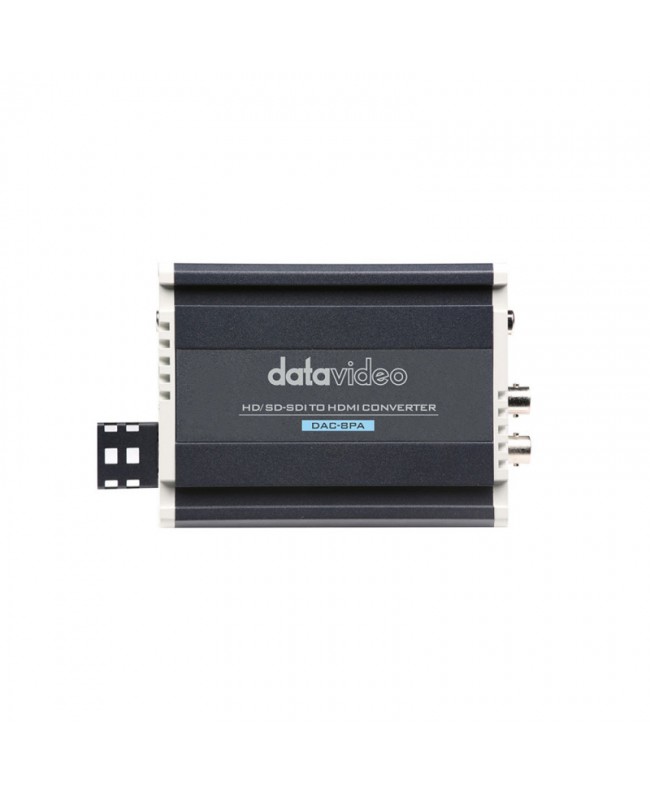

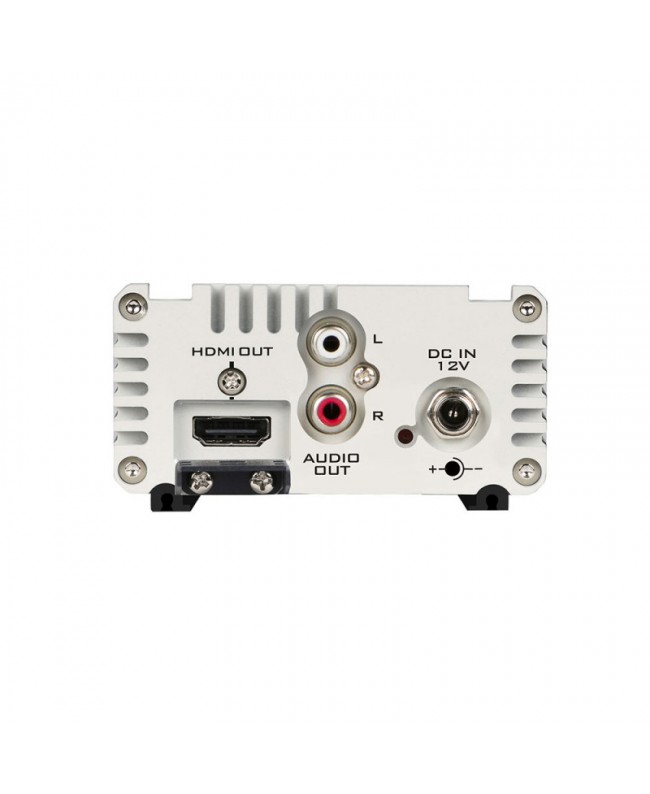

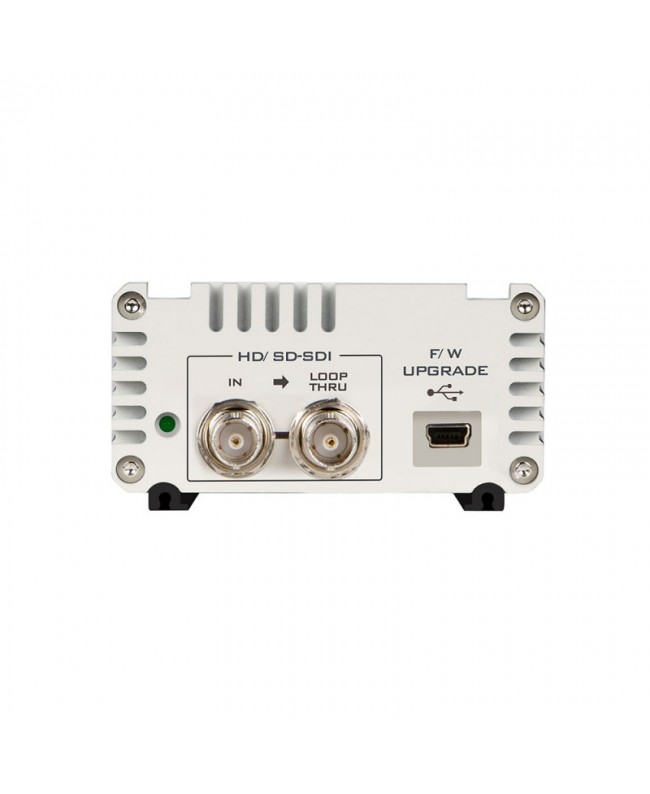

Datavideo DAC-8PA



A wide range to use in broadcast and professional AV applications. Convert SDI to HDMI with audio de-embedding options. The DAC-8PA allows you to convert an SDI signal (up to 1080p60) to HDMI. It includes the option to de-embed audio from a stereo RCA connection, or can be used in both HDMI output and analog audio output.

Support 1080p 50/60 signal. Automatic input signal detection and HDMI support for high color (Deep Color).

Support stereo audio output: One SDI loop-through output and one HDMI output.

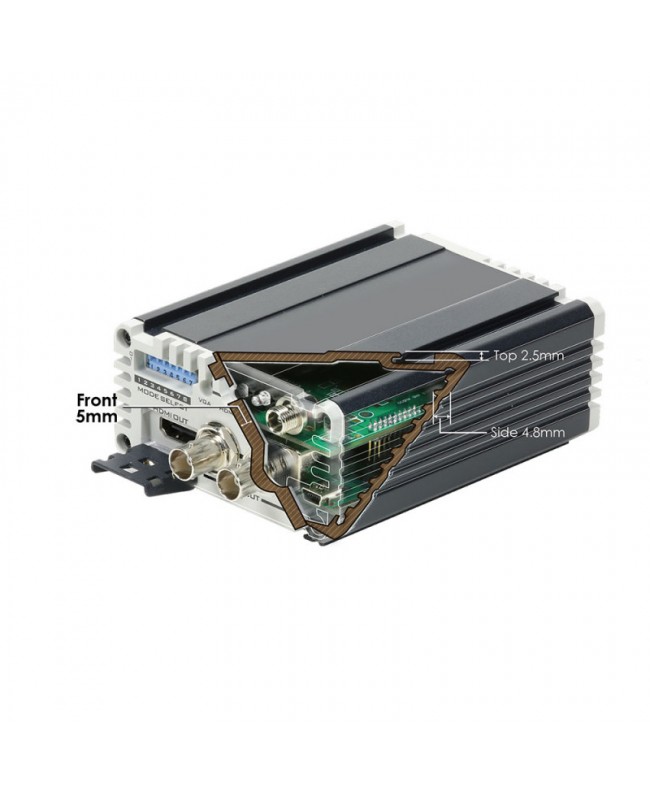

Aluminum Alloy and Heavy Duty Design, super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

  • Conversion: 3G/ HD/SD-SDI to HDMI
  • Video Inputs: 1x 3G/HD/SD-SDI
  • Loop Through: 1
  • Video Outputs: 1x HDMI
  • With embedded Audio
  • Audio Inputs: 2x SDI Audio embedded
  • Audio Outputs: 2x RCA (Stereo Pair)
  • 2X HDMI Audio embedded
  • Supported Video Input Formats: 1080p (23.98/24/25/29.97/30/50/59.94/60 Hz),
  • 1080I (50/59.94/60 Hz),
  • 720P (50/59.94/60 Hz),
  • 625I 50 (PAL), 525i 59.94 (NTSC)
  • Output Resolutions: Automatically matches the SD, HD and 3G SDI video input
  • Equalizer: Yes
  • Reclock: Yes
  • SDI Cable Drive: Yes
  • Dimension (L x W x H): 112 x 85 x 45 mm
  • Weight: 0.4 kg
  • Operating Temp. Range: 0~40 °C
  • Power: DC 12 V, 4W
  • What's in the Box: 1 x DAC-8PA product
  • 1 X AD Switch DC 12 V
  • 1 X Thank You Card

DTV-2000-2282

Specific References
