Datavideo DAC-90



De-Embed Audio from SDI Signal. Auto detects video format, support up to 1080P 50/60. Allows users to de-embed 16 analogue audio signals (4 at a time) from SDI video signal.

SMPTE and EBU Audio level switchable and Control via DIP Switches.

Loop through SDI output: 4 x Analogue Mini XLR Audio outputs.

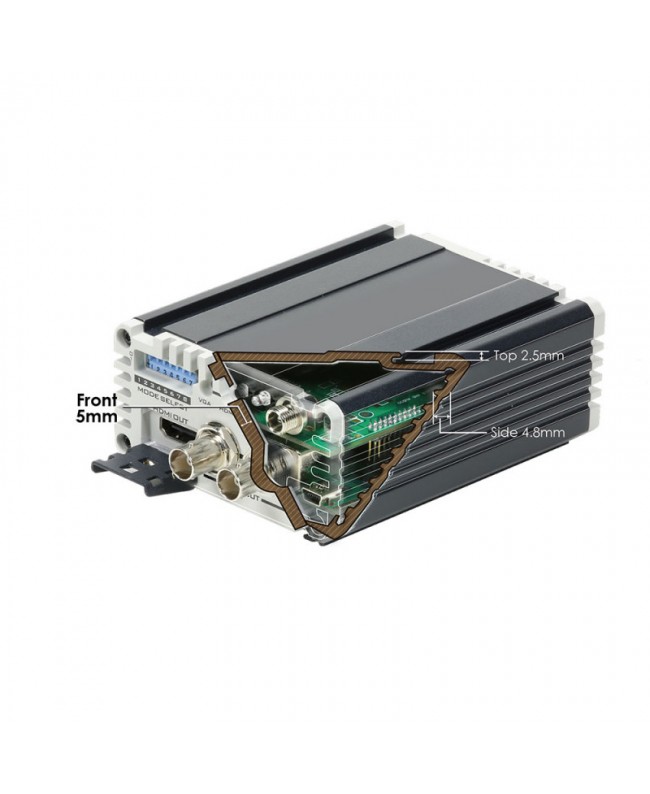

Aluminum Alloy and Heavy Duty Design, super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

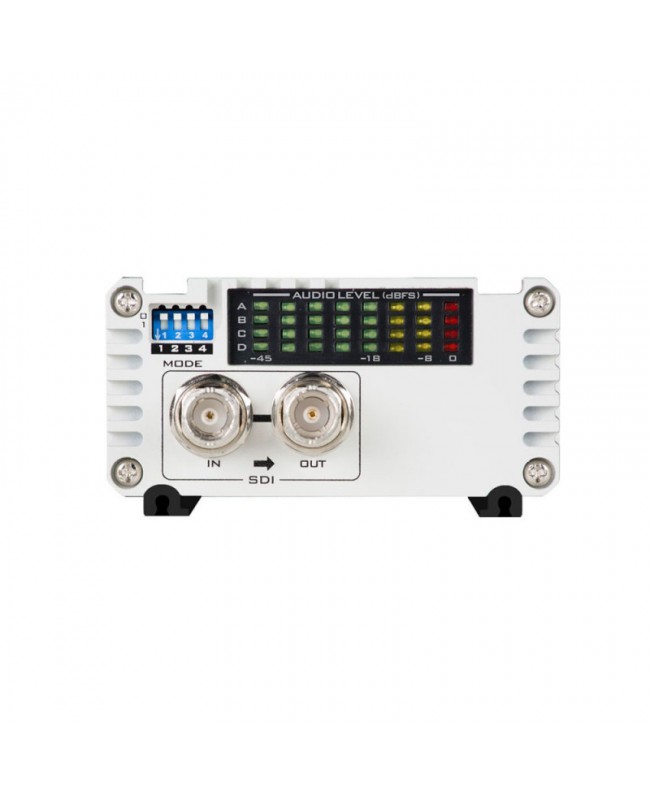

  • SDI Video Input: 3G/HD/SD-SDI x 1
  • SDI Video Output: 3G/HD/SD-SDI x 1 (Re-clocked Loop through)

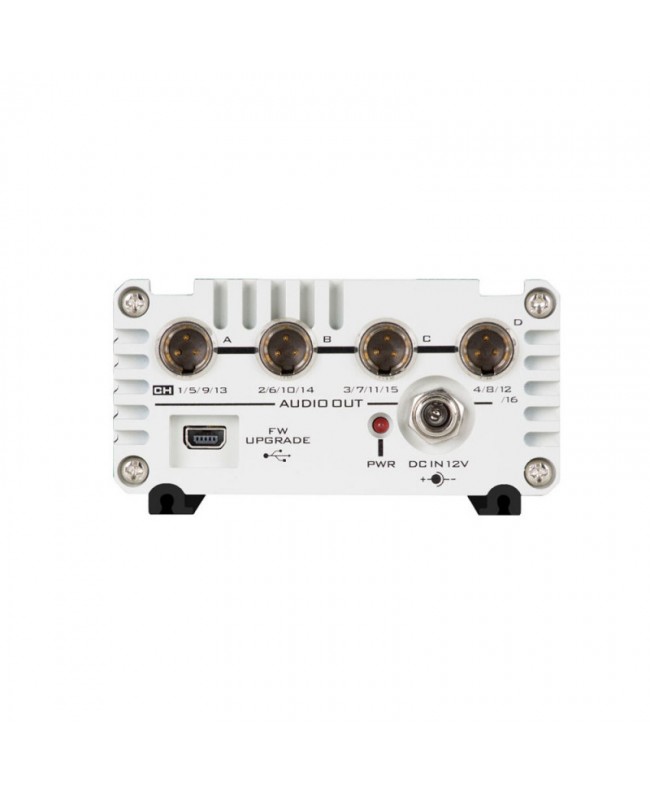

  • Analog Audio Output: Mini XLR (Balanced) x 4
  • Indicator: Power LED x 1 Audio Level LED: 4 rows
  • Updates and Configuration: Mini USB x 1
  • Audio Format Selection: SMPTE, EBU
  • Dimension (L x W x H): 112 x 85 x 45 mm
  • Weight: 0.4 kg
  • Operating Temp. Range: 0~40 °C
  • Power: DC 12 V, 0.5A
  • What's in the Box: 1 x DAC-90 product
  • 1 X AD Switch DC 12 V
  • 2 X Mini XLR to male XLR cable
  • 1 X Thank You Card
