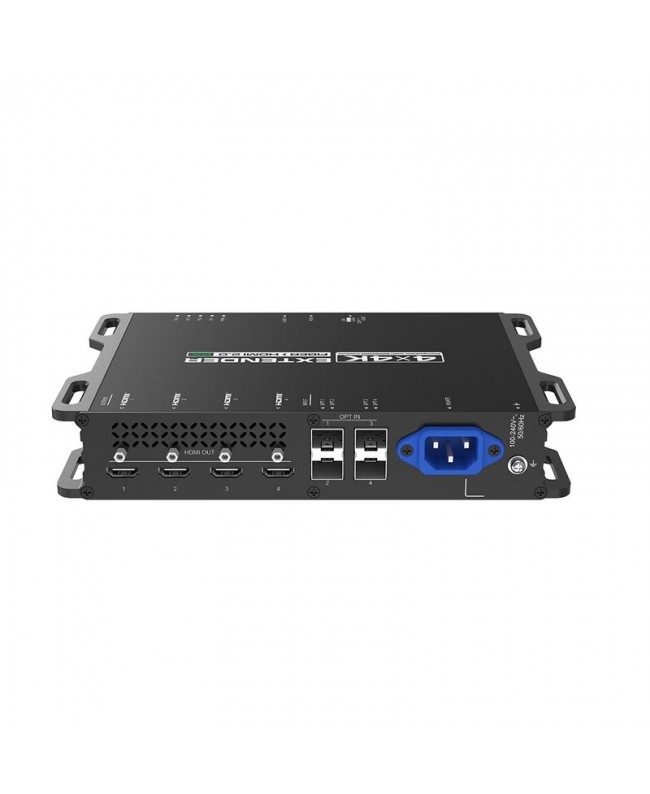

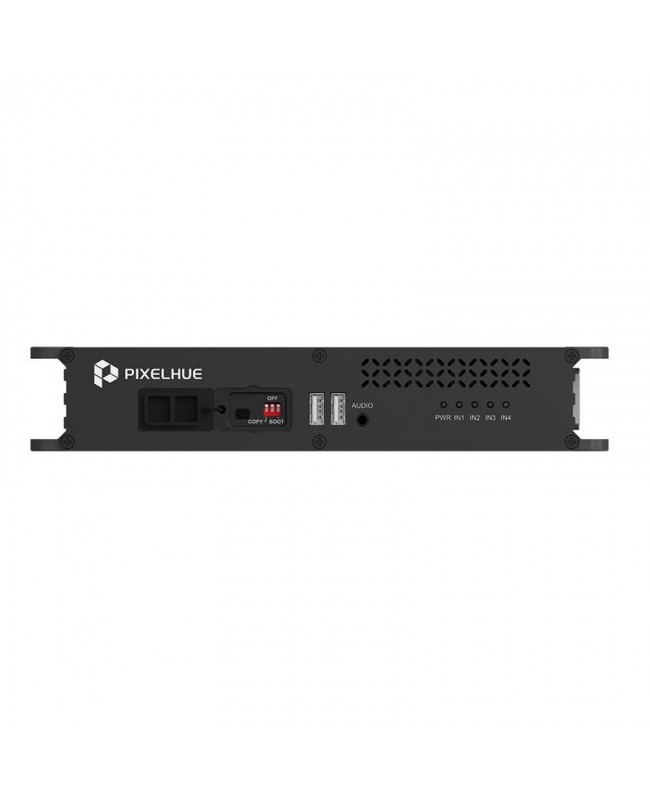

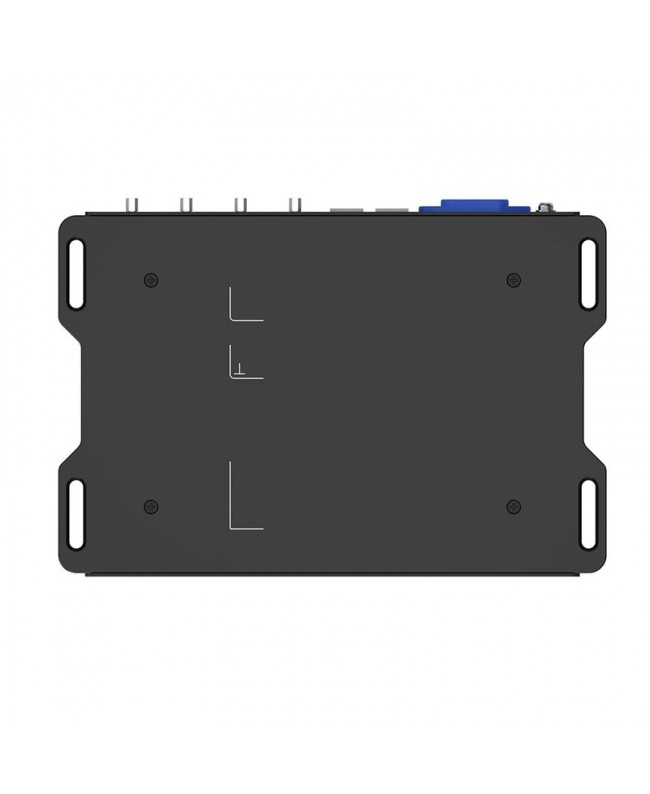

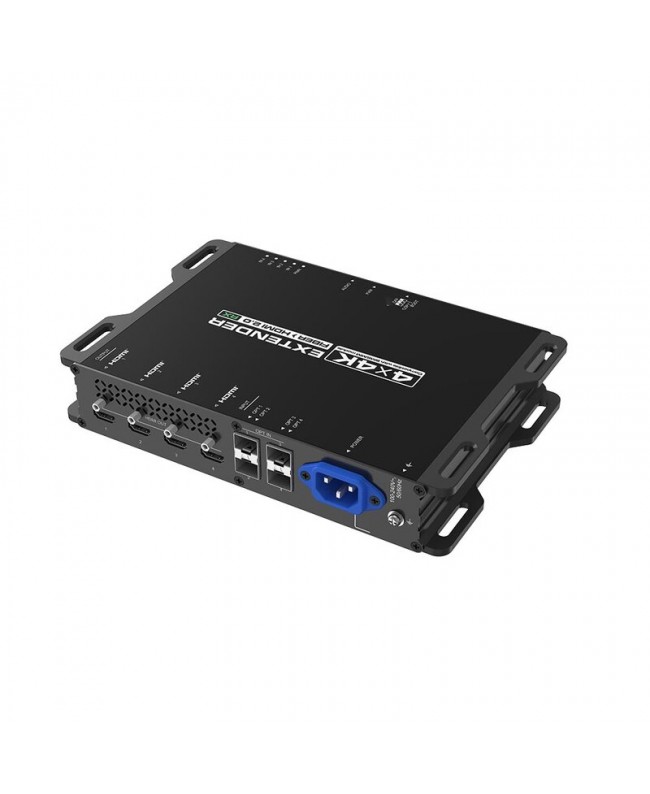

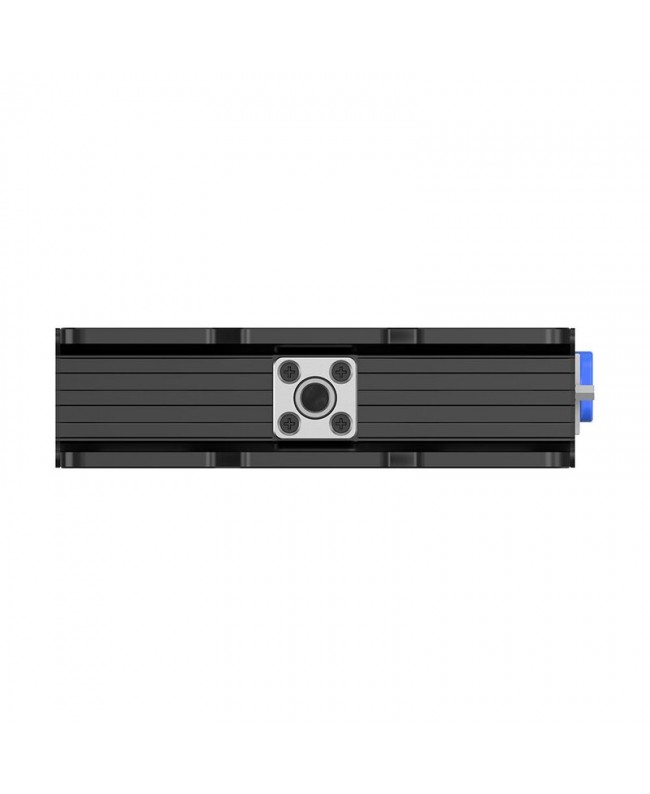

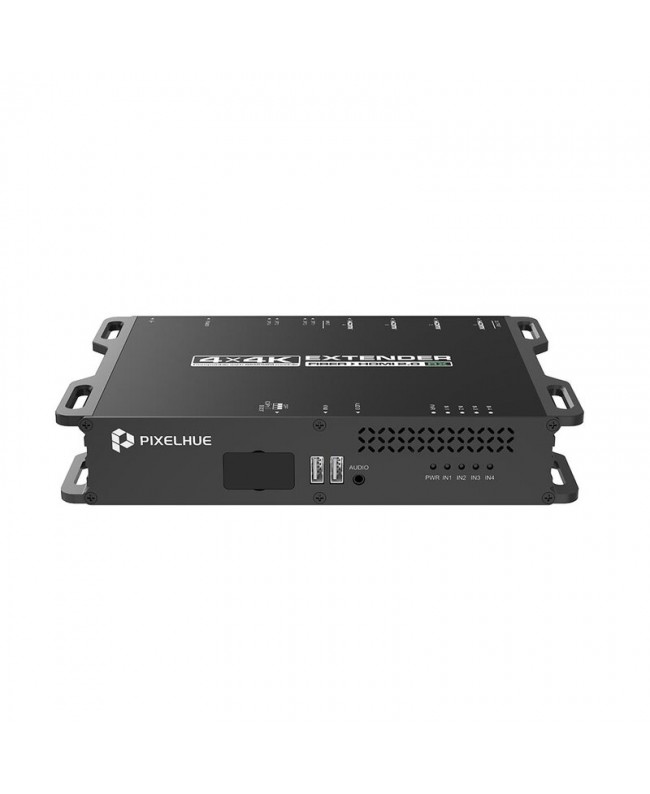

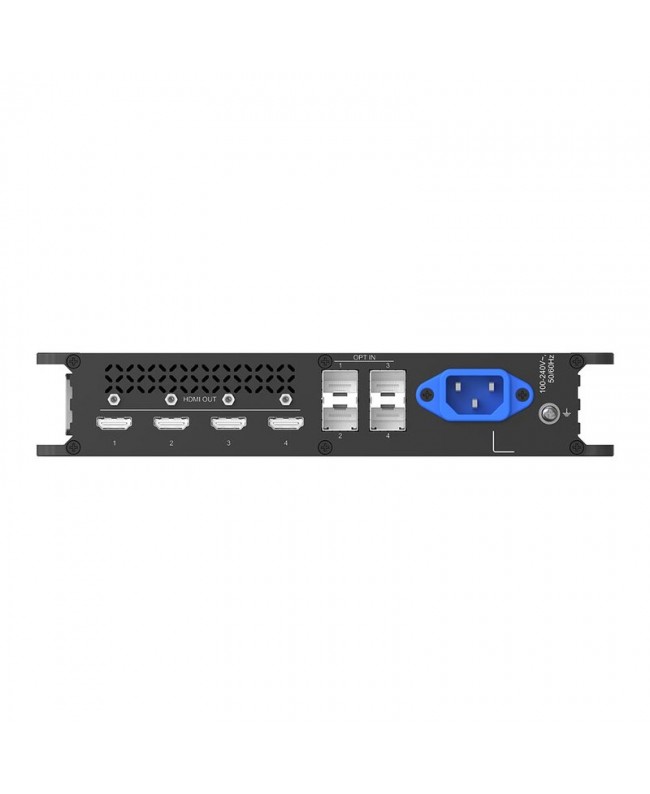

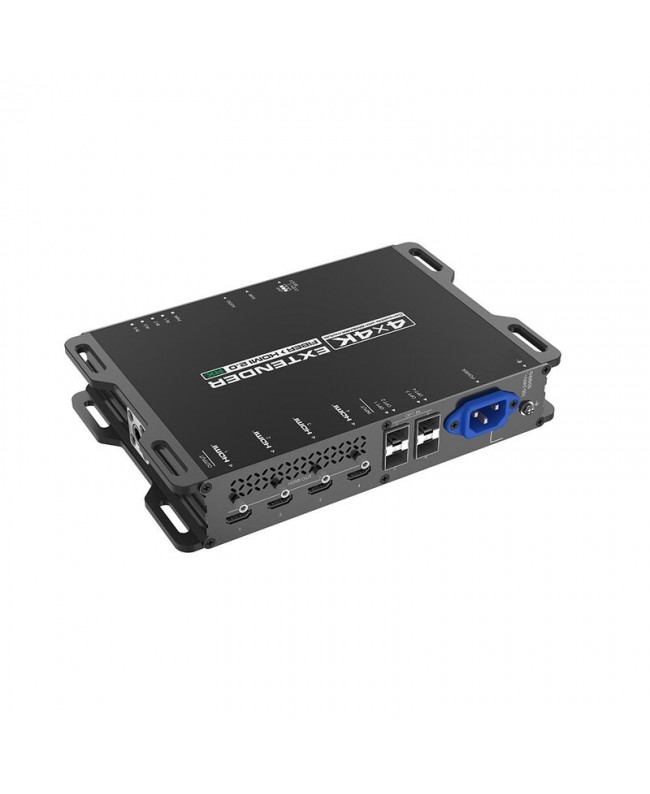

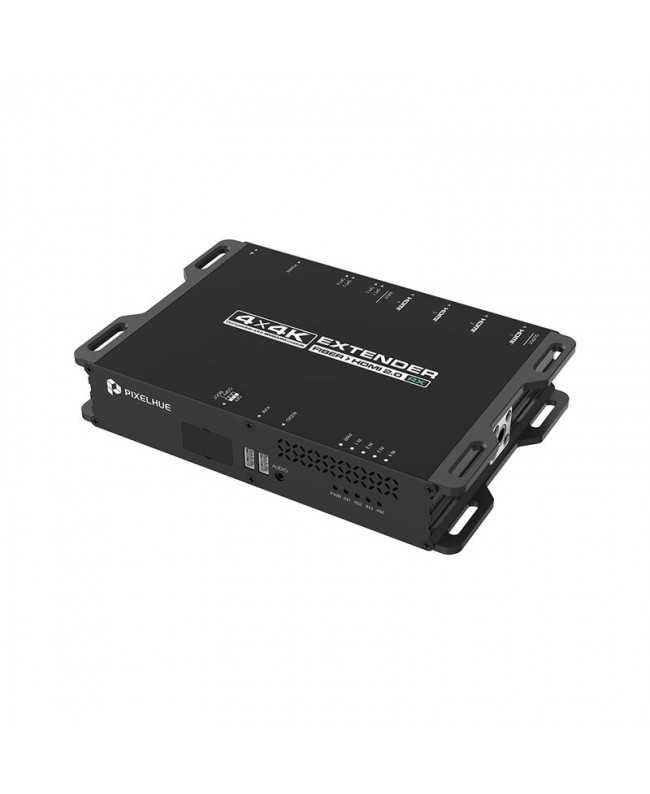

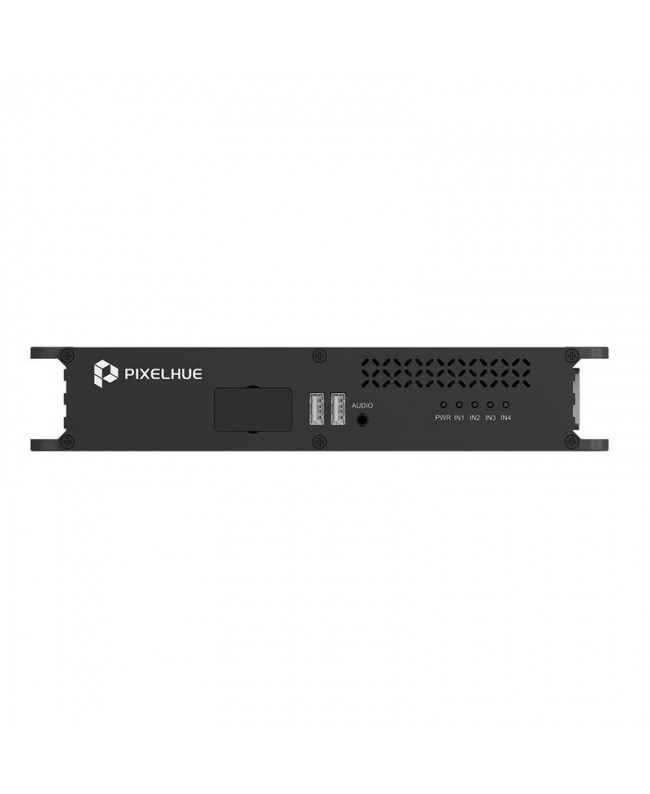

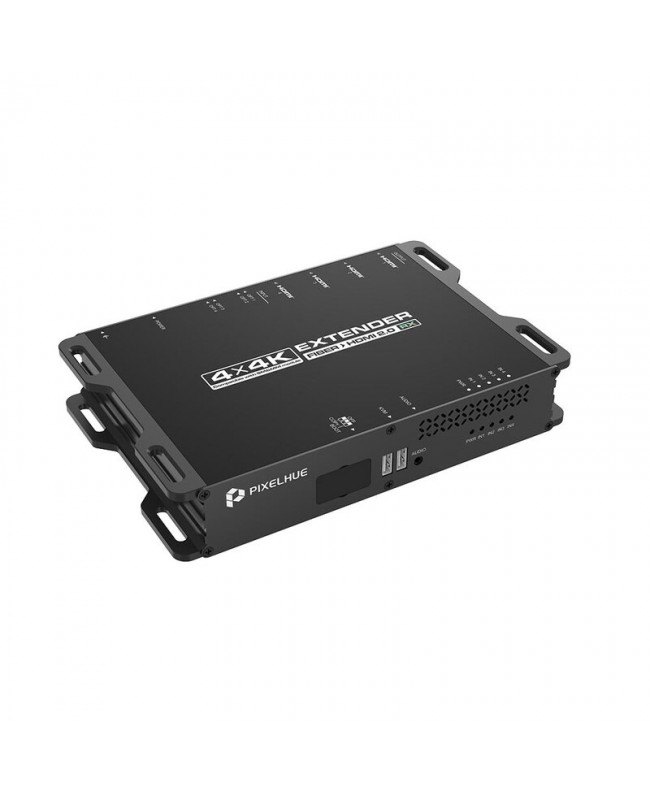

PIXELHUE EP4R-M

EP4R fiber extender is a fiber optic receiver that uses advanced technology to receive audio and video signals over long distances without loss of quality, overcoming the limitations of length and signal degradation. Fiber optic transmission / reception, in fact, is resistant to electromagnetic interference, ensuring stable signal transmission even in difficult electromagnetic environments.

The EP4R receiver can operate in standalone mode, for example, combined with a Pixelhue presentation switcher. Alternatively, it can be used in pairs with the EP4T transmitter or integrated with all Novastar devices equipped with fiber optic inputs and outputs.

Architectural installations: consider the facade of a building illuminated by a pair of video projectors. In this scenario, two uncompressed 4K video signals need to be sent to the projectors, with the source located a long distance from the destination. Fiber transmission guarantees quality and reliability

University campuses: When a pair of uncompressed 4K signals needs to be transferred from one point on campus to another, EP4 extenders are an ideal solution for overcoming the limitations of traditional connections

Live events and video control rooms: In situations where the control room is located far from the stage, fiber allows the signal to be sent directly to the stage monitors or other devices, maintaining maximum quality and stability.

Thanks to 8 / 10-bit lossless compression, it guarantees optimal video quality, offering clear and detailed images. The compact design and Plug and amp; Play installation simplify configuration, allowing easy and immediate extension of signals

The receiver includes 4 EOLP-8596-02-I multi-mode modules, with a maximum reception distance of 300 m.

• This product series has a wide range of typical applications:
• Main features
• Supports 8-bit / 10-bit lossless Ultra-HD reception:
• 8-Bit 4:4:4, max. 4096 x 2160 and #64; 60 Hz
• 10-Bit 4:4:4, max. 4096 x 2160 and #64; 30Hz
• Clear signal indicators for easy monitoring of device status
• EDID passthrough for compatibility with various devices
• Support for input copy
• 3D and HDR passthrough
• Supports multi-platform PC host remote control via KVM roaming
• Supports OPT input source mosaic when working with a presentation switcher
• HDCP encrypted video reception
• Dual USB ports to connect a keyboard or mouse for remote control
• User benefits
• No loss of details when receiving video signal, high quality ultra-high definition
• Strong anti-interference ability
• Zero latency video reception
• Easy operation, Plug and amp; Play
• 24/7 Operation
• Application areas
• Broadcast
• Live events
• Conference rooms
• University campuses
• Monitoring centers
• Digital Signage
