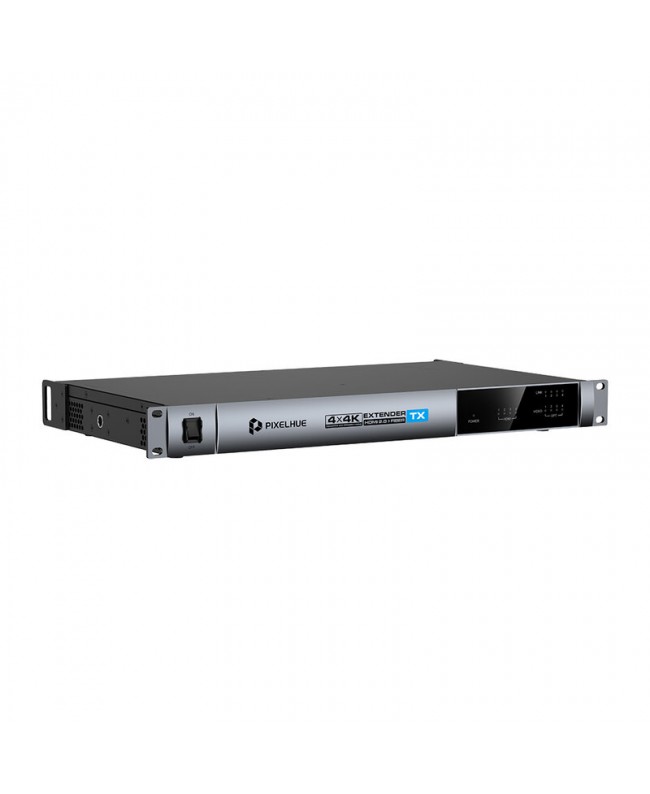

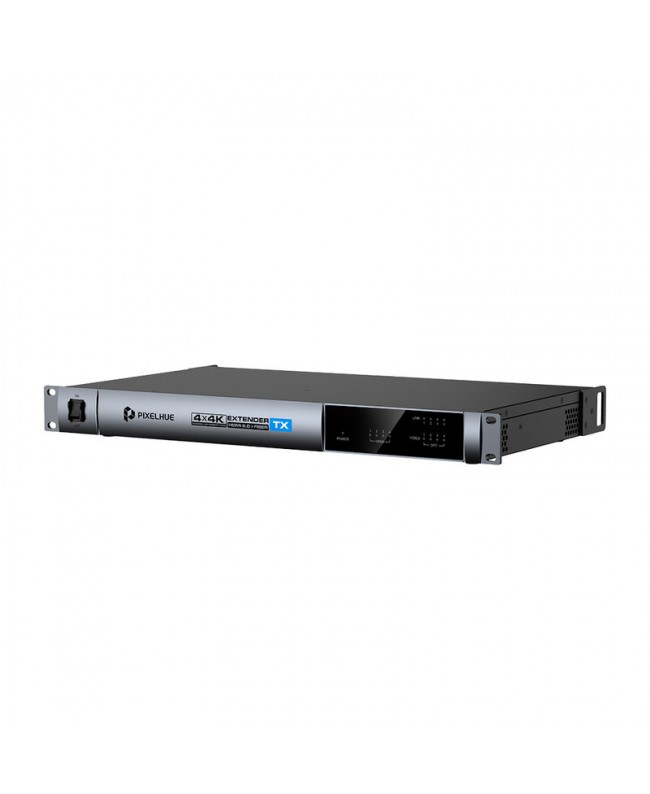

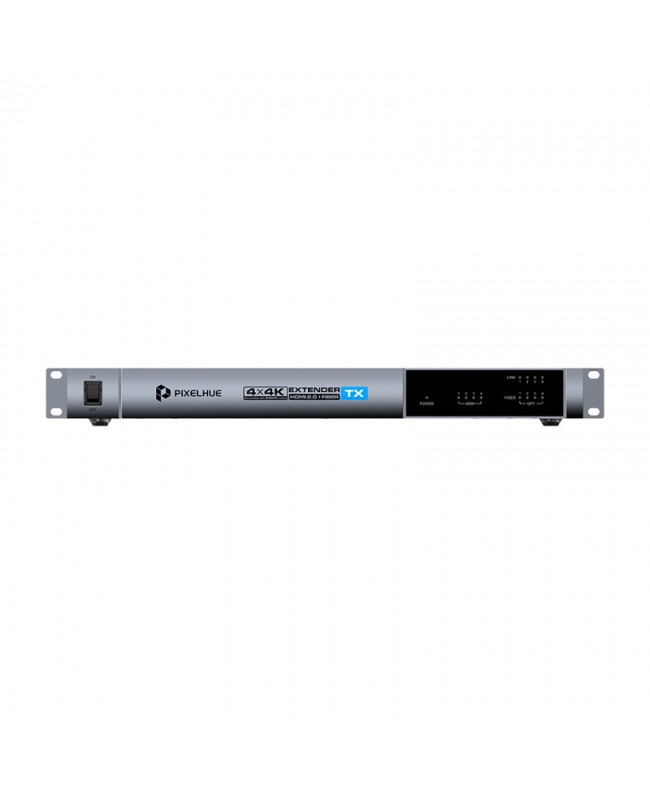

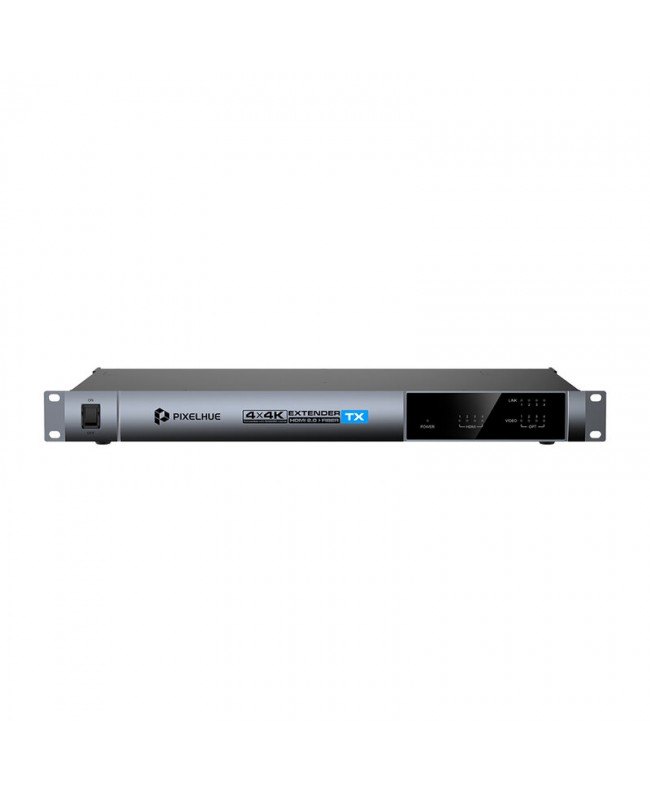

PIXELHUE EP4T PRO-M (EU)

The EP4T Pro-M is a fiber optic transmitter designed to ensure long-distance AV distribution with maximum stability. It works in conjunction with its counterpart, the EP4R Pro-M, or in standalone TX mode with a Nova. Star LED processor.

It uses multi-mode fiber optic technology and integrates 10G modules to ensure reliable transmission up to 300 meters, eliminating the limitations of traditional cabling while maintaining impeccable video quality. Thanks to lossless compression, the device handles signals up to 4096 x 2160 and #64; 60 Hz with color depth up to 12-bit and full support for RGB and YCb. Cr, HDR, EDID, 3D, and HDCP 2.2, delivering crisp, artifact-free images even in critical applications.

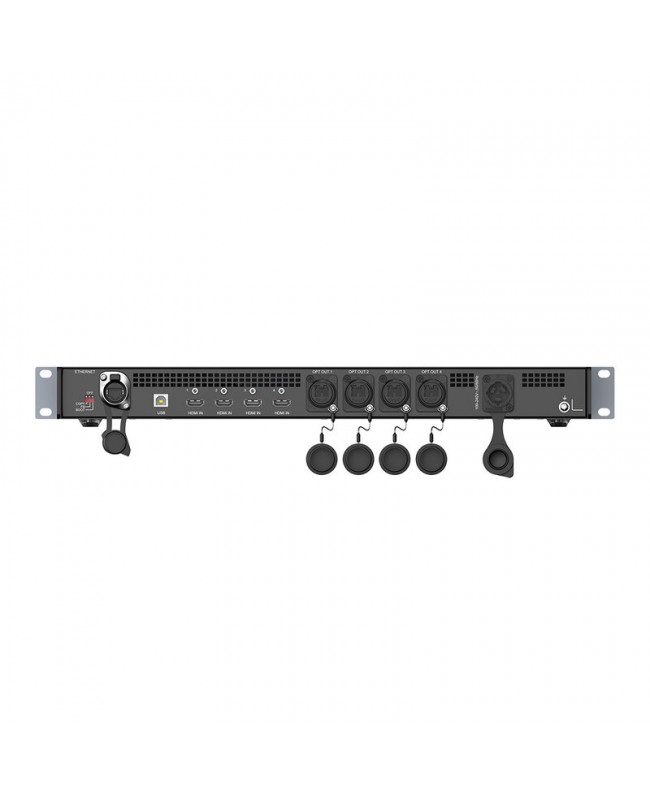

The four HDMI 2.0 ports accept independent signals and can be duplicated using the source copy function, while the four optical outputs can operate in direct, copy, or mosaic mode depending on the configuration. The device also supports KVM with remote control of multi-platform systems via USB and can route the Ethernet signal to the receiver via a dedicated DIP switch, functioning as a true network bridge.

Installation is quick and easy, completely Plug and amp; Play, with clear LED indicators for power, HDMI, optical link, and video status.

• Main features
• Long-distance fiber optic transmission
• Neutrik ether. CON for firmware upgrades
• Built-in ether. CON and optical. CON, plus power. CON connectors for professional-grade connectivity
• Built-in audio input support
• EDID and 3D passthrough
• HDR support
• Zero-latency video transmission
• KVM
• Ethernet signal passthrough via DIP switches
• Clear signal indicators for easy device status monitoring
• Simple plug-and-play operation
• HDCP-encrypted video transmission
• 24/7 Operation
• User benefits
• Lossless Ultra-HD transmission
• Full compatibility with HDMI signals: RGB and YCb. Cr 4:4:4, 4:2:2, 4:2:0, up to 12-bit, progressive, and interlaced
• Native redundancy on HDMI inputs
• Input source copy function
• Reliability ensured by integrated optical modules
• Zero-latency video transmission
• 24/7 Operation
• Areas of use
• Conference rooms
• LED walls
• Broadcast and video production
• Video control rooms
• Live events
• Professional video surveillance systems
• Control rooms and monitoring centers
