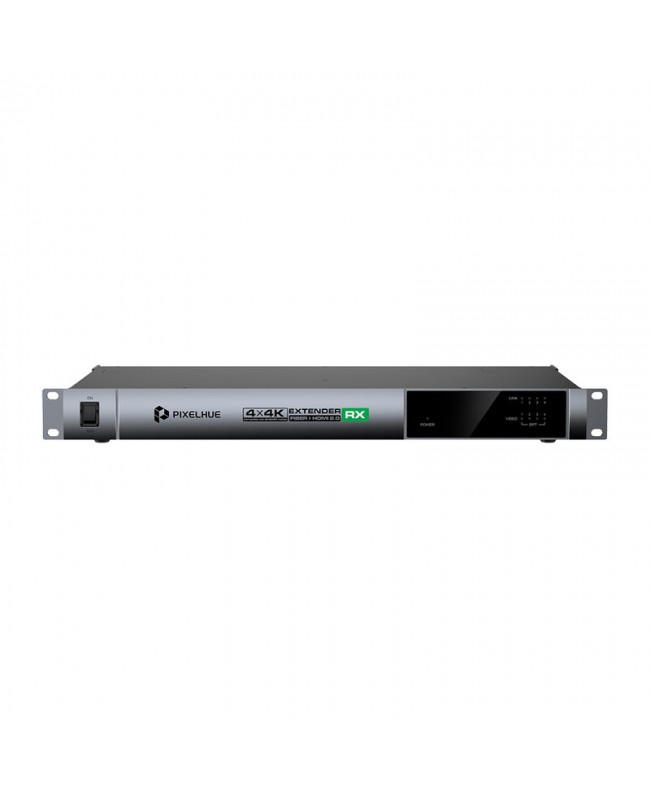

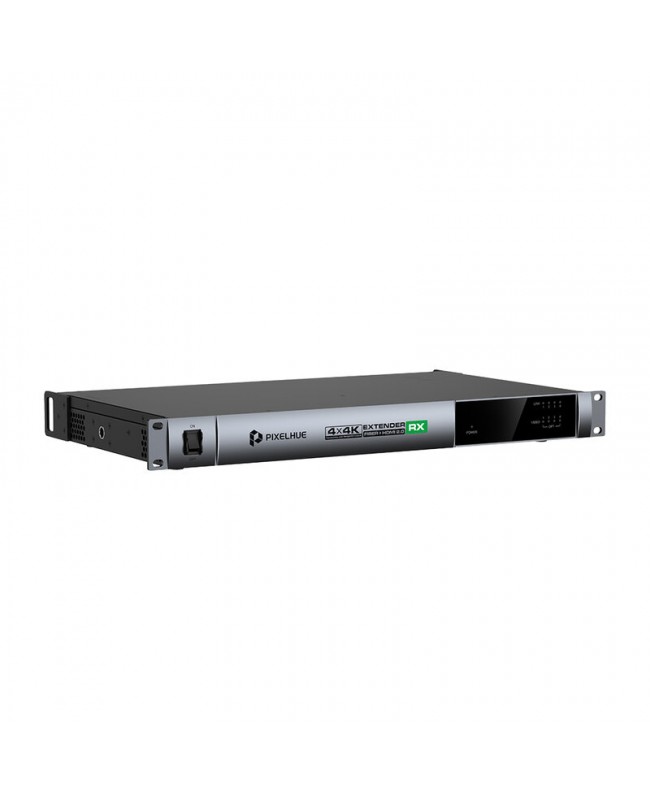

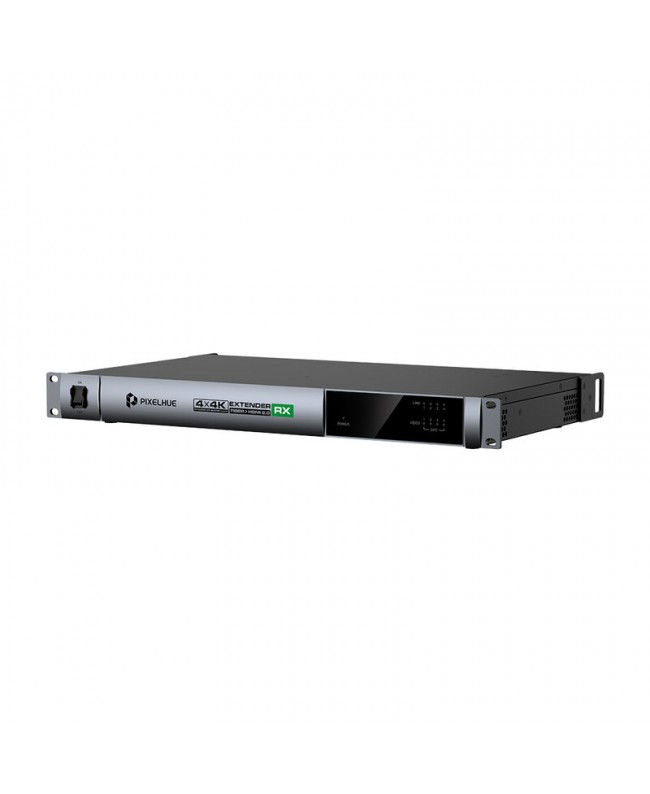

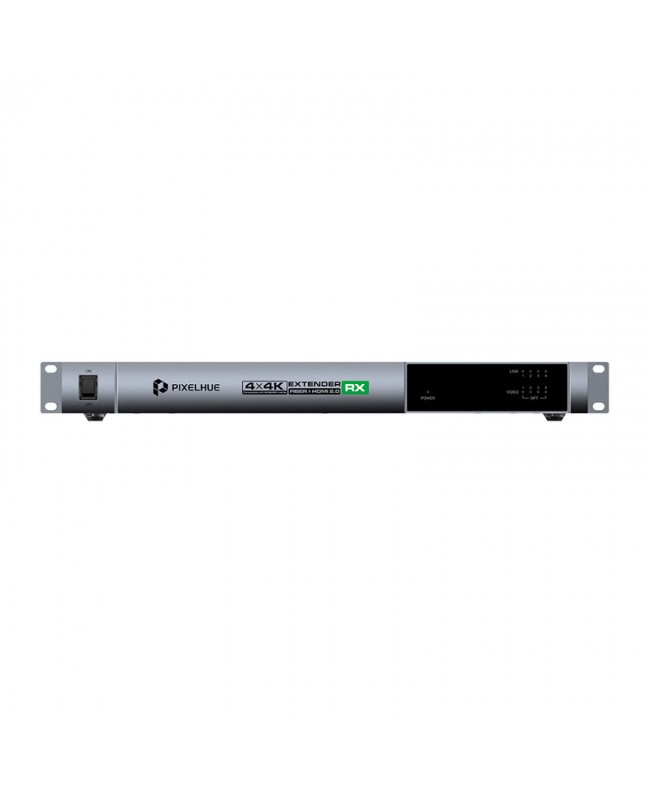

PIXELHUE EP4R PRO-S (EU)

The EP4R Pro-S is a fiber optic receiver designed to ensure stable and reliable AV distribution over long distances. It works in tandem with the EP4T Pro-S transmitter, or can operate in standalone RX mode, receiving the signal from, for example, a Pixelhue Presentation Switcher and then sending it to a video projector, video wall splicer, video controller, etc.

It uses single-mode fiber optic technology, integrating 10G optical modules to ensure stable reception up to 10 km, overcoming the limitations of traditional cabling while maintaining impeccable video quality. Thanks to lossless compression, it handles signals up to 4096 x 2160 and #64; 60 Hz, with color depth up to 12-bit and full support for RGB and YCb. Cr, HDR, EDID, 3D, and HDCP 2.2, ensuring sharp, artifact-free images even in critical applications.

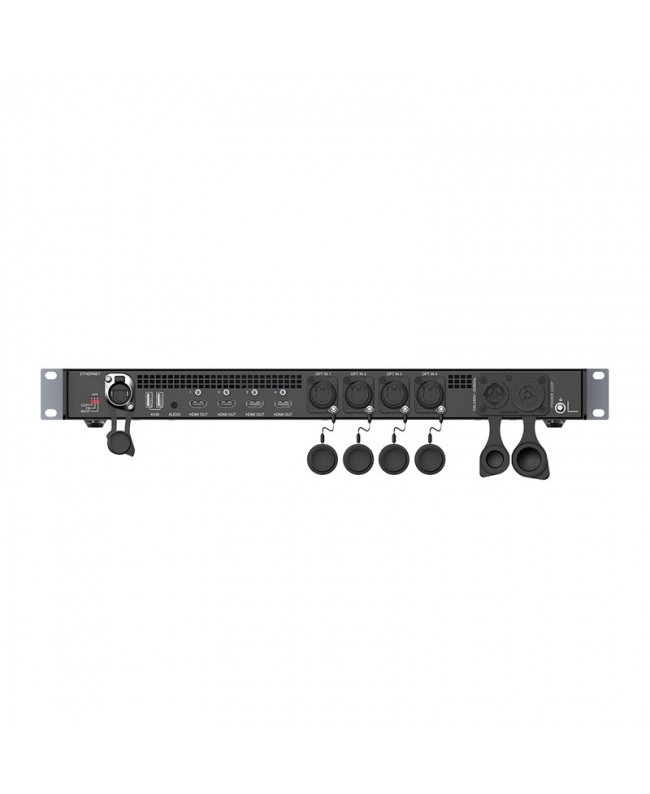

The four HDMI 2.0 ports provide independent outputs and can duplicate signals using the source copy function. The four single-mode optical ports accept signals in direct, copy, or mosaic mode, depending on the system configuration. The device also supports KVM for remote control of multi-platform systems via USB, and can receive Ethernet signals from the transmitter via a dedicated DIP switch, functioning as a true network bridge.

Installation is quick and easy, completely plug-and-play, with clear LED indicators for power, optical link, and video signal status, facilitating real-time monitoring.

• Main features
• Long-distance reception over single-mode fiber optics
• Neutrik ether. CON for firmware upgrades
• Built-in ether. CON and optical. CON, plus power. CON connectors for professional-grade connectivity
• Integrated audio output support
• EDID and 3D passthrough
• HDR support
• Zero-latency video processing
• Ethernet signal passthrough via DIP switches
• Clear signal indicators for easy device status monitoring
• Easy plug-and-play operation
• HDCP
• User benefits
• Lossless Ultra HD reception
• Full compatibility with HDMI signals: RGB and YCb. Cr 4:4:4, 4:2:2, 4:2:0 up to 12-bit
• Native redundancy on optical inputs (OPT 1-2 and OPT 3-4)
• Input source copy function
• Reliability guaranteed by optical modules Integrated single-mode (up to 10 km)
• KVM support for remote control of multi-platform systems via USB
• 24/7 Continuous operation
• Areas of use
• Conference rooms
• LED walls
• Broadcast and video production
• Video control rooms
• Live events
• Professional video surveillance systems
• Control rooms and monitoring centers
