PIXELHUE EP4T PRO-S（EU） Video Signal Extenders
  • -26%
  • New

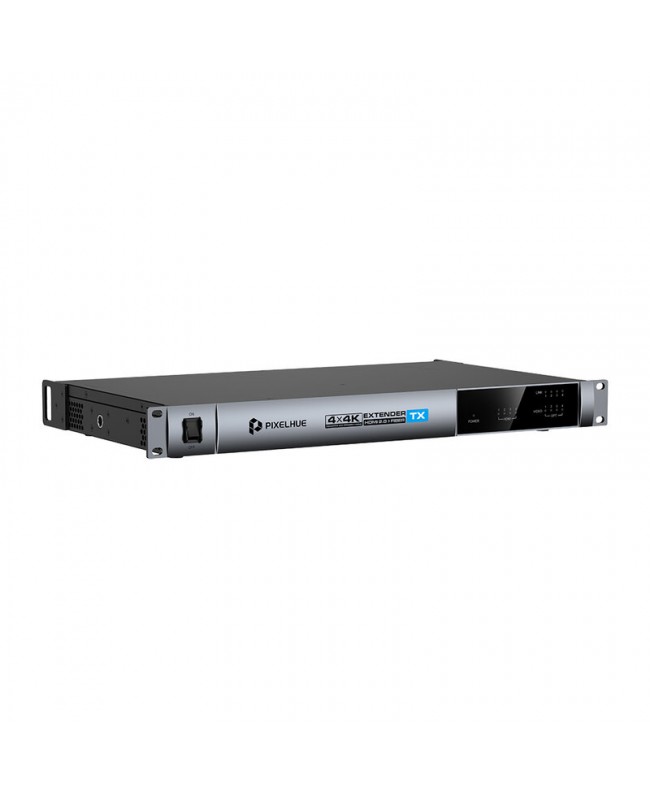

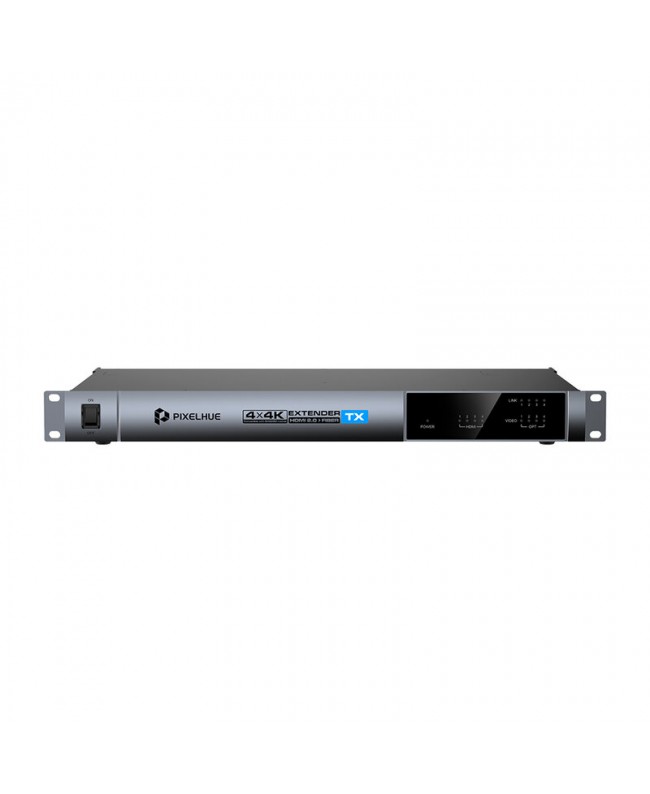

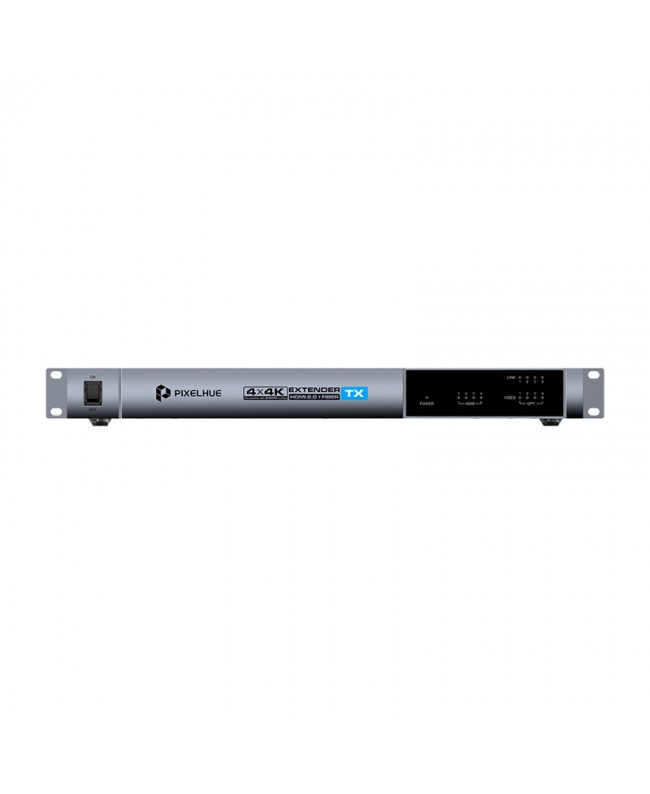

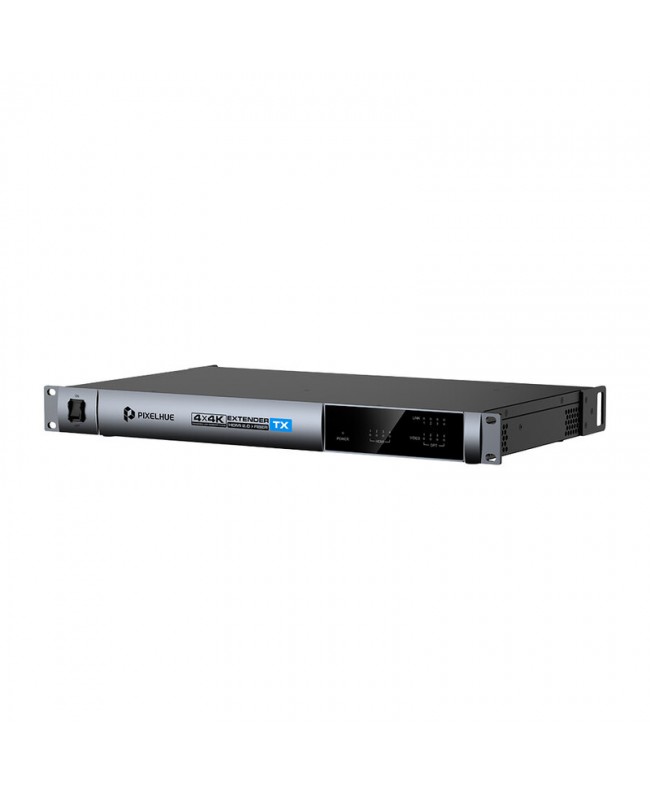

PIXELHUE EP4T PRO-S（EU）

€2,787.00
€2,072.00 -26%
Tax included
Lowest price within the last 30 days: €2,072.00

4 X 4K fiber transmitter, zero-latency, 4096 x 2160 @ 60 Hz video over single-mode fiber up to 10 km, 4 x HDMI 2.0 inputs, Neutrik connectivity, HDR / HDCP support and KVM / Ethernet passthrough, 24/7 operation

Out of Stock

Free shipping

Compare

wishlist

PIXELHUE EP4T PRO-S（EU）



The EP4T Pro-S is a fiber optic transmitter designed to ensure long-distance AV distribution with maximum stability. It works in conjunction with its counterpart, the EP4R Pro-S, or in standalone TX mode with a Nova. Star LED processor.

It uses single-mode fiber optic technology and integrates 10G modules to ensure reliable transmission up to 10 km, eliminating the limitations of traditional cabling while maintaining impeccable video quality. Thanks to lossless compression, the device handles signals up to 4096 x 2160 and #64; 60 Hz with color depth up to 12-bit and full support for RGB and YCb. Cr, HDR, EDID, 3D, and HDCP 2.2, delivering crisp, artifact-free images even in critical applications.

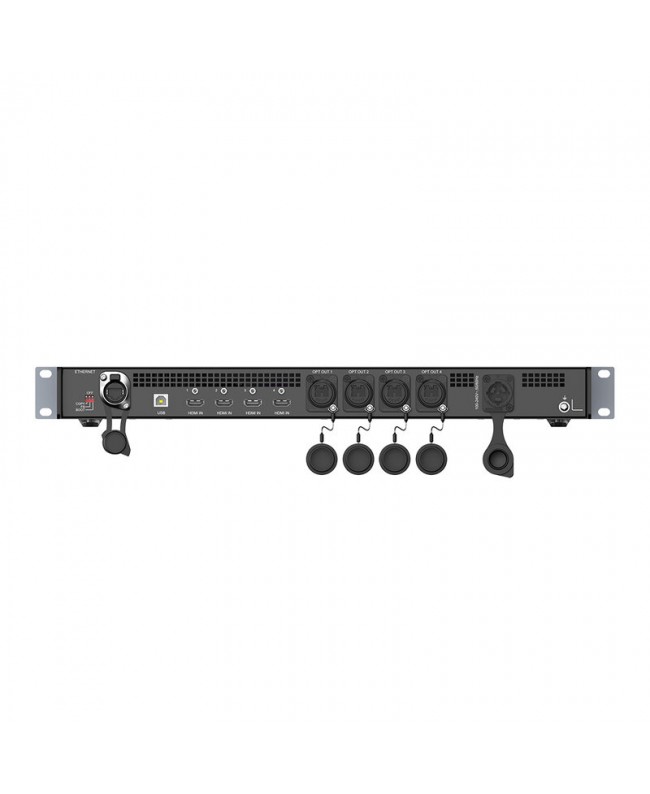

The four HDMI 2.0 ports accept independent signals and can be duplicated using the source copy function, while the four optical outputs can operate in direct, copy, or mosaic mode depending on the configuration. The device also supports KVM with remote control of multi-platform systems via USB, and can pass the Ethernet signal to the receiver via a dedicated DIP switch, functioning as a true network bridge.

Installation is quick and easy, completely Plug and amp; Play, with clear LED indicators for power, HDMI, optical link, and video status.

  • Main features
  • Long-distance transmission over single-mode fiber optics
  • Neutrik ether. CON for firmware upgrades
  • Integrated ether. CON and optical. CON, plus power. CON connectors for professional-grade connectivity
  • Integrated audio input support
  • EDID and 3D passthrough
  • HDR support
  • Zero-latency video transmission
  • KVM
  • Ethernet signal passthrough via DIP switches
  • Clear signal indicators for easy device status monitoring
  • Simple plug-and-play operation
  • HDCP-encrypted video transmission
  • 24/7 Operation
  • User benefits
  • Lossless Ultra-HD transmission
  • Full compatibility with HDMI signals: RGB and YCb. Cr 4:4:4, 4:2:2, 4:2:0, up to 12-bit, progressive, and interlaced
  • Native redundancy on HDMI inputs
  • Input source copy function
  • Reliability ensured by integrated single-mode optical modules up to 10 km
  • Zero-latency video transmission
  • 24/7 Operation
  • Areas of use
  • Conference rooms
  • LED walls
  • Broadcast and video production
  • Video control rooms
  • Live events
  • Professional video surveillance systems
  • Control rooms and monitoring centers
  • Input connector: Bit depth
  • HDMI: 8-bit
  • YCbCr 4:4:4: 8192 x 1080 at 60Hz, 4096 x 2160 at 60 Hz
  • YCbCr 4:2:2: 8192 x 1080 at 60 Hz, 4096 x 2160 at 60Hz
  • YCbCr 4:2:0: 4096 x 2160 at 60 Hz
  • HDMI: 10-bit
  • YCbCr 4:4:4: 4096 x 2160 at 30 Hz
  • YCbCr 4:2:2: 4096 x 2160 at 60 Hz
  • YCbCr 4:2:0: 4096 x 2160 at 60 Hz
  • HDMI: 12-bit
  • YCbCr 4:2:0: 4096 x 2160 at 60 Hz
  • Power: 100 - 240 VAC 50/60 Hz
  • Max. power consumption: 28 W
  • Temperature: -10 to +55 °C
  • Humidity: 5 to 85% RH, non-condensing
  • Temperature: -10 to +60 °C
  • Humidity: 5% to 95% RH, non-condensing
  • Dimensions: 48.26 x 4.36 x 28 cm
  • Noise level (typical at 25 °C): 31 dB (A)
  • Net weight: 3.6 kg
  • Accessories: 1 x power cable1 x Ethernet cable1 x HDMI cable1 x certificate of approval1x safety manual

PIX-M09050054
