LINDY 500m Fibre Optic DVI-D Single Link Extender Video Signal Extenders

LINDY 500m Fibre Optic DVI-D Single Link Extender

€358.00
Tax included

Fibre Optic DVI-D Single Link Extender

Qty

Out of Stock

Free shipping

GFP

We will plant 1 tree and protect part of a tropical rainforest for every order placed on our website.

See our impact in real-time
Compare

wishlist

LINDY 500m Fibre Optic DVI-D Single Link Extender



  • Extends DVI-D signals at distances of up to 500m using dual fibre optic cables (not included)
  • Compatible with DVI-D 2.0 specifications including HDTV and HD-Ready displays
  • Supports HDTV resolutions up to 1920 x 1200 @ 60Hz / 1080p @ 60 Hz
  • 6Gbps Total Bandwidth over Dual Duplex or 4x LC Simplex Fibre Optic Cables
  • 2 year warranty

Easy to set up and install the compact Lindy LC Fibre Optic DVI-D Extender is the most cost effective, high quality solution on the market for sending DVI-D signals over incredible distances. Send DVI-D signals without compression or any degradation over standard LC duplex multimode (50/125µm) fibre cable up to 500m (not included).

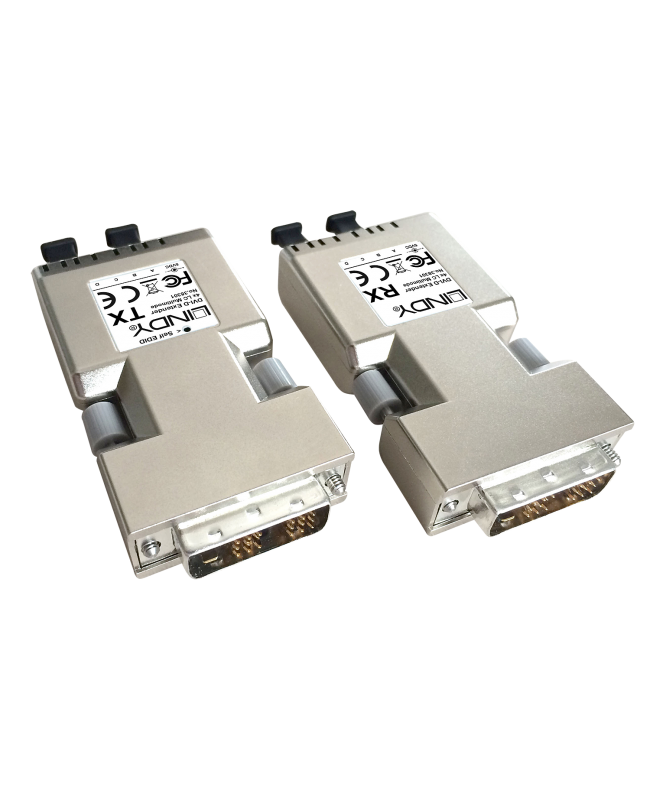

The extender system comprises two modules, a transmitter and a receiver, which are connected directly to both the DVI-D source and display. The modules are then connected together using two, standard 'off the shelf' LC Duplex Fibre cable fibre optic cables (not included).

Package Contents

  • 1 x Transmitter Unit
  • 1 x Receiver Unit
  • 1 x Multi-country PSU for Receiver, 5VDC 1A, with Adapters for US/EUR/UK/AUS
  • Lindy manual

Specifications

  • AV Interface: DVI-D
  • Interface Standard: DVI-D 2.0 (Single Link)
  • Supported Bandwidth: 4.95Gbps
  • Maximum Distance: 500m (1640.4ft)
  • Maximum Resolution: 1920x1200@60Hz
  • HDCP Support: -
  • EDID Pass Through: -
  • Supported Audio: -
  • Separate Audio Ports: -
  • IR Support: -
  • CEC Support
  • Serial Interface: -
  • Transmission Protocol: -
  • Transmission Medium: 2 x LC Duplex (50/125µm)
  • Laser Class (only for Fibre): 1
  • Wavelength (only for Fibre): 850nm
  • Chipset: -
  • Special Features: Self-EDID learning

Connectors

  • Transmitter Input: DVI-D (Male)
  • Transmitter Output: 2 x Duplex LC  (Female)
  • Receiver Input: 2 x Duplex LC (Female)
  • Receiver Ouput: DVI-D (Male)
  • Bidirectonal Ports: -
  • Power: 3.5/1.35mm DC socket

Physical Properties

  • Dimensions WxDxH : 40x70x15mm (1.57x2.76x0.59in) per unit
  • Housing Material: Metal
  • Net Weight: 0.1kg (0.22lb) per unit
  • Operating Temperature : 0°C - 70°C (32°F - 158°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)
  • Humidity: 10 - 75% RH (non-condensing)
  • Power Requirements: 5VDC
  • Colour: Silver

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 185x140x55mm (7.28x5.51x2.17in)
  • Gross Weight: 0.53kg (1.17lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS, REACH

Package Contents

  • Transmitter unit
  • Receiver unit
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy manual

L38301
