Novastar DIS-300 Video Splitters
  • New

Novastar DIS-300

€242.00
Tax included

Signal converter and splitter

Out of Stock

Free shipping

Compare

wishlist

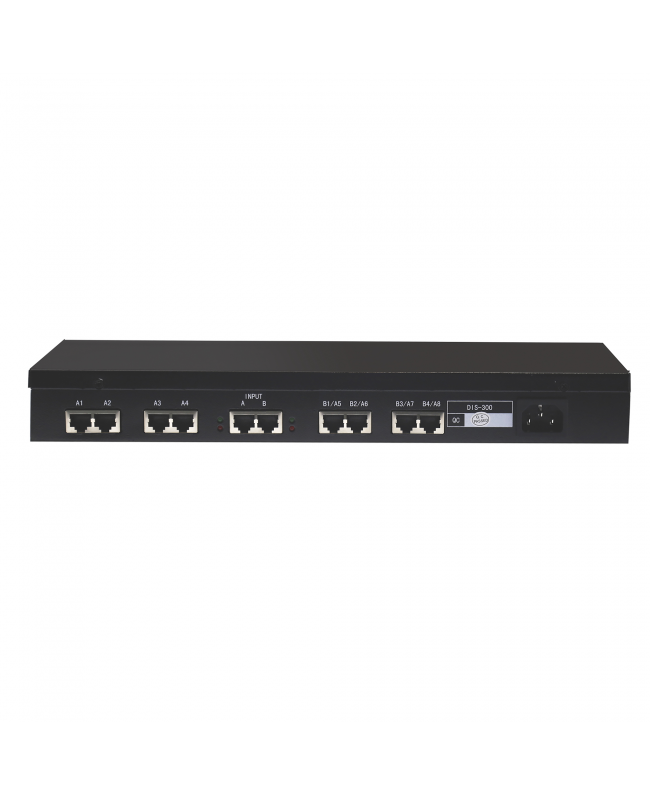

Novastar DIS-300



The Novastar DIS-300 is specialized for multi-screens and super large LED screens. The card possesses two input ports and eight output ports, enabling that one split to eight and two split to four. Functions change automatically. Each RJ45 port can be independently adjusted and supports read back parametres from cabinet.

  • Two split modes: one input mode: Input A to 8x Output / or two input mode: A and B to 2x four outputs
  • Each RJ45 port can be independently adjusted, and supports read back parametres from cabinet

Specifications

Outputs

  • Main outputs: 8

Control and Programming

  • Control System: Novastar
  • Port mapping: Software-based

Connections and Electrical Features

  • Power supply: 100-240 V AC 50/60 Hz
  • Power consumption: 5.7 W
  • Power input connection: IEC
  • Data input connection: RJ45
  • Data output connection: RJ45

Mechanical features

  • Height (excluding handles): 45 mm (1.772″)
  • Width (handles excluded): 356 mm (14.016″)
  • Depth (handles excluded): 171 mm (6.732″)
  • Weight: 1.16 kg (2,557 lb)
  • IP rating: IP20 (indoor use only)
  • Housing: Aluminum
  • Color: Black

Product Features.

  • Cooling: Convection

Thermal Characteristics.

  • Maximum ambient temperature: 75 °C (167 °F)
  • Minimum ambient temperature: -20 °C (-4 °F)
  • Operating humidity: 0-95 %rH

Parts included

  • Cables included: IEC cable

101651

Data sheet
