Datavideo VP-597


€547.00
€406.00 -26%
Tax included
Lowest price within the last 30 days: €406.00

2X6 3G HD/SD-SDI Distribution Amplifier


Out of Stock

Free shipping


wishlist

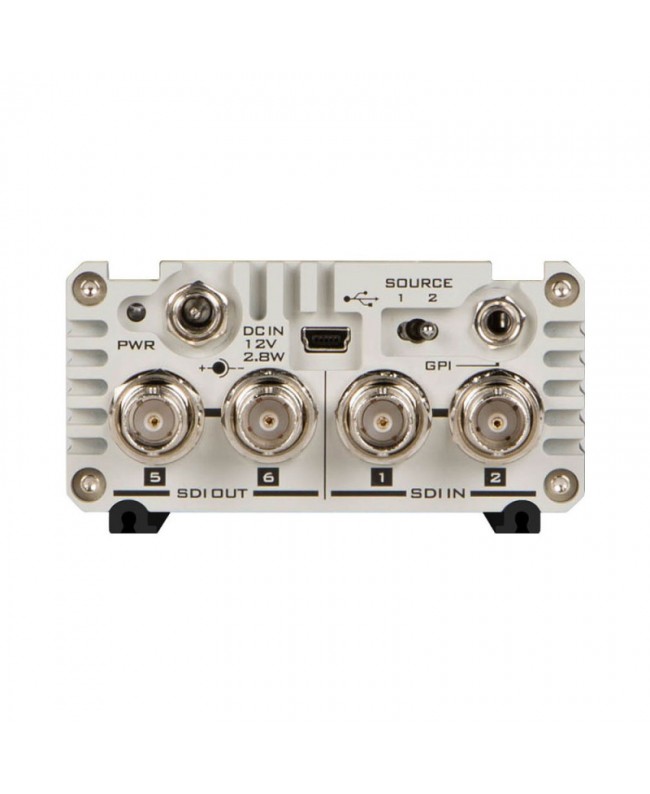

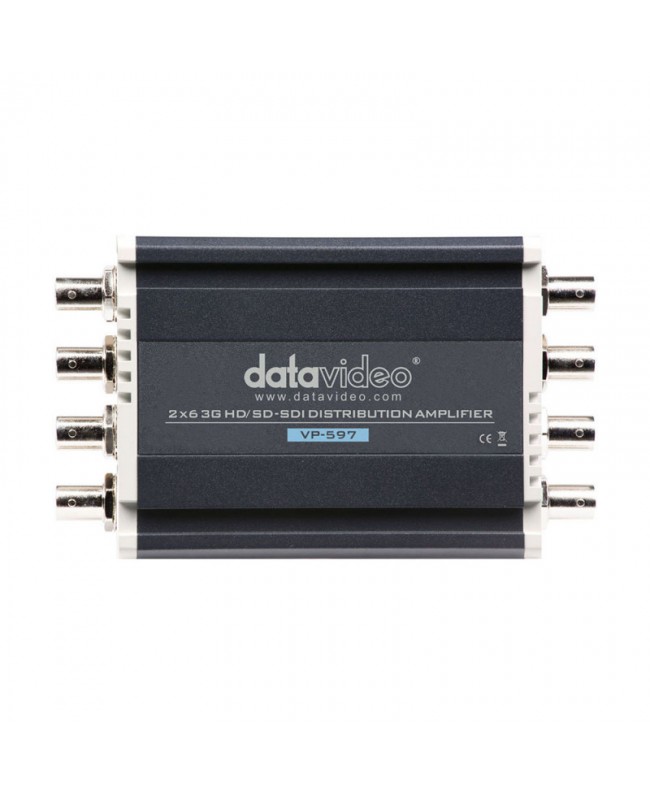

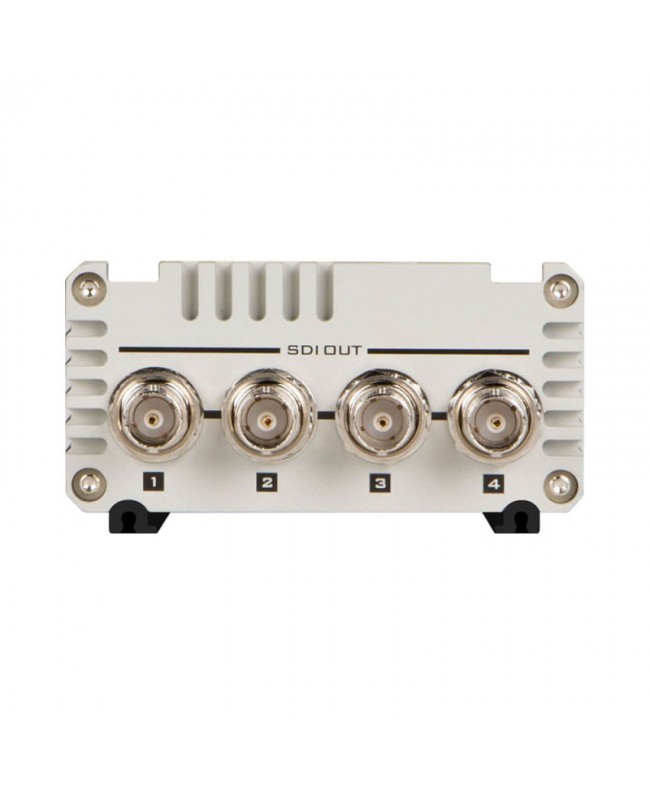

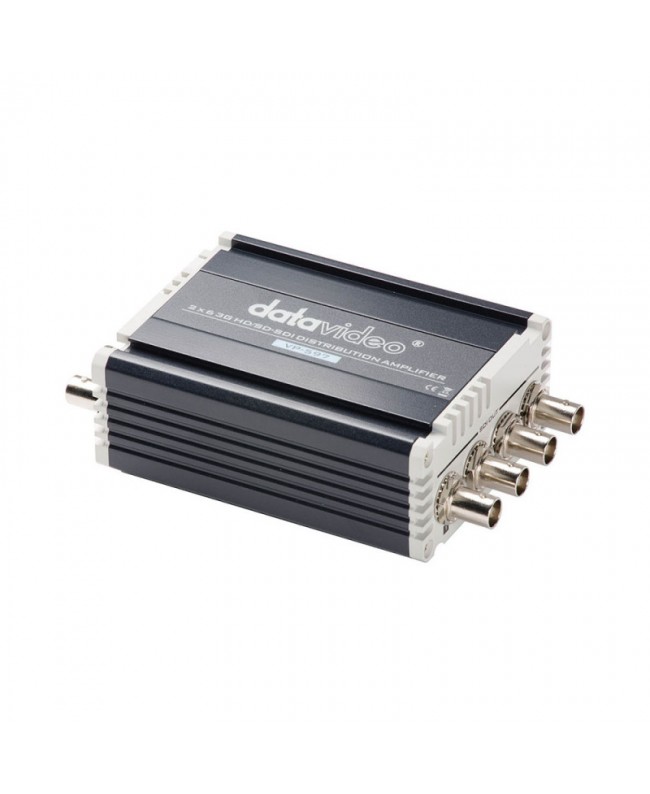

Datavideo VP-597



Distribution amplifier with 2 x 3G/HD/SD-SDI inputs and 6 x 3G/HD/SD-SDI distribution outputs. Supports 3G/HD/SD SDI video with embedded audio and re-clock design for long distance transmission.

Two input video can be controlled by A/B switch or GPI remote for simple A/B source switching to multiple HD displays or it can be used as a backup 3G/HD/SD SDI input sources switcher for live events.

  • Video Input/Output: Input: 2 x BNC
  • Output: 6 x BNC
  • Video Format: 1080p 60/59.94/50/29.97/23.98
  • 1080I 60/59.94/50
  • 720P 60/59.94/50
  • 525I, 625i
  • Audio Format: Support SDI embedded audio
  • Up to 8 channels, 48 kHz, PCM audio
  • Power: 12 V / 2.8W
  • Dimension (L x W x H): 127 x 85 x 45 mm
  • Weight: 0.5 kg
  • Operating Temp. Range: 0~40 °C
  • What's in the Box: 1 x VP-597 product
  • 1 X AD Switch 12 V 500mA
  • 1 X 3.5Φ GPI Cable Stereo
  • 1 X Thank You Card
