DMT VT403 - 3G SDI Distributor 1x4


€132.00
€118.00 -12%
Tax included
Lowest price within the last 30 days: €118.00

1 In, 4 out


Qty

In Stock

Delivery

Do You want Your order by Thursday, 30/07/2026? Order within 11 hours and 52 minutes

Free shipping


wishlist

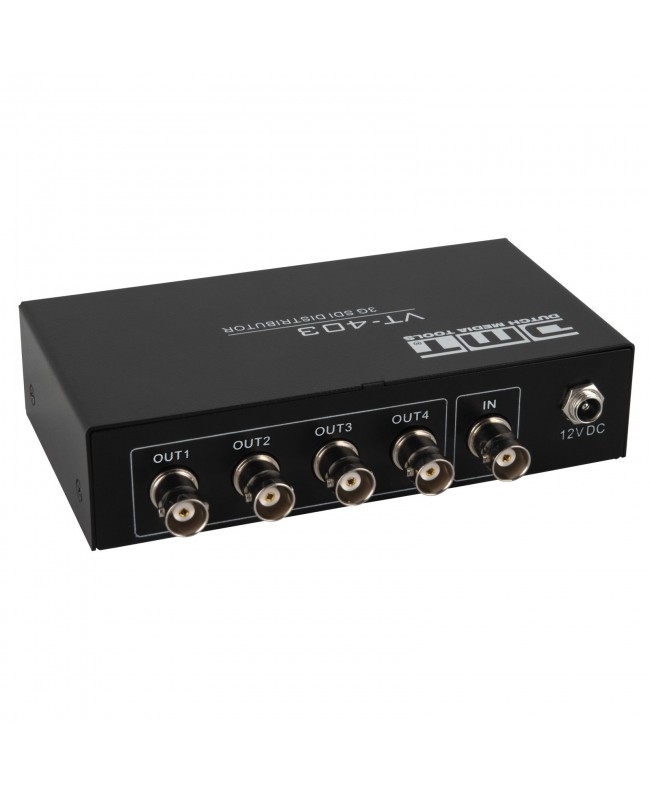

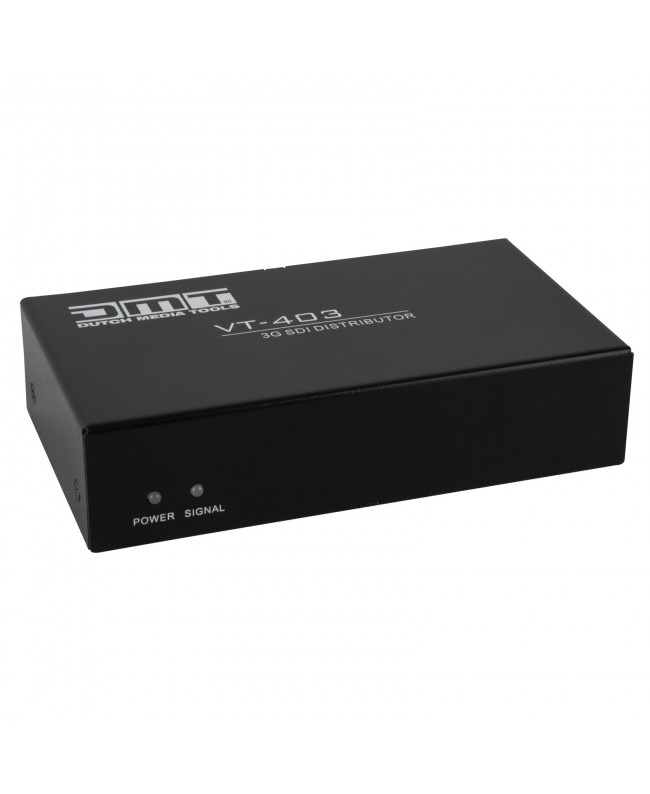

DMT VT403 - 3G SDI Distributor 1x4



The DMT VT-series is a new, comprehensive range of video tools, suitable for various applications. Due to the user-friendly design, all models are easy to operate and integrate in almost any video configuration. Exhibitions, events, conferences, or fixed installation projects, the DMT VT-Series offers you the right video tools for the job.

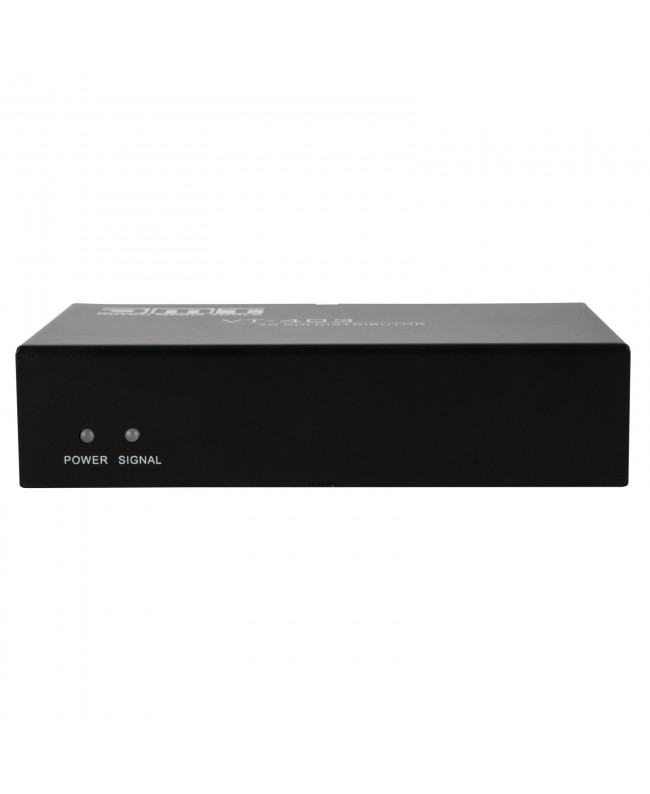

The DMT VT403 is a 3G SDI distributor that supports up to 1920x1080 at 60 Hz. Its compact housing is equipped with one input and four outputs and two LEDs on the front indicate the power and signal status. For a secure connection, the included power adaptor has a lockable DC connector. Two mounting brackets are also included.

  • 3G SDI distributor supports up to 1920x1080 at 60 Hz

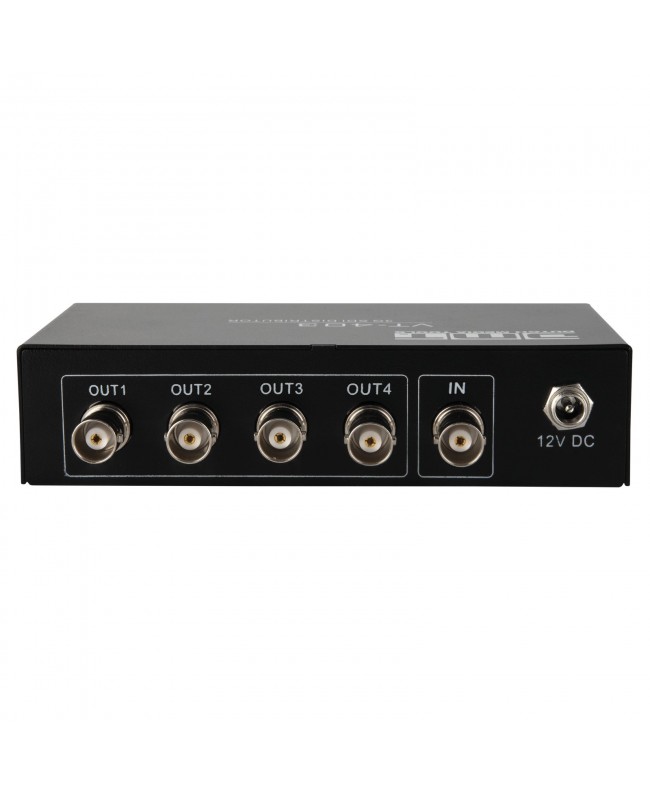

  • 1X Input 4x Output
  • Compact housing
  • PSU with lockable DC connector included
  • 2X mounting bracket included
  • Type of input connector: 3G-SDI
  • 3G-SDI: 1
  • Type of output connector: 3G-SDI (Out)
  • 3G-SDI (Out): 4
  • Maximum Input Resolution: 1920 x 1080
  • Maximum Output Resolution: 1920 x 1080
  • Power Supply: 100-240 V AC 50/60 Hz
  • Output voltage: 12 V DC
  • Power Consumption: 2.5 W
  • Power Connector In: Low Voltage DC plug
  • Data Connector In: BNC
  • Data Connector Out: BNC
  • Adapter type: AC-DC adapter
  • Input voltage: 100-240 V AC, 50/60 Hz
  • Output voltage: 12 V DC
  • Width (Including Handles): 162 mm
  • Width (Without Handles): 132 mm
  • Height (Including Handles): 32 mm
  • Height (Without Handles): 31 mm
  • Depth (Including Handles): 72 mm
  • Weight: 0.32 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Metal
  • Colour: Black
  • Maximum Ambient Temperature: 40 °C
  • Minimum Ambient Temperature: 0 °C

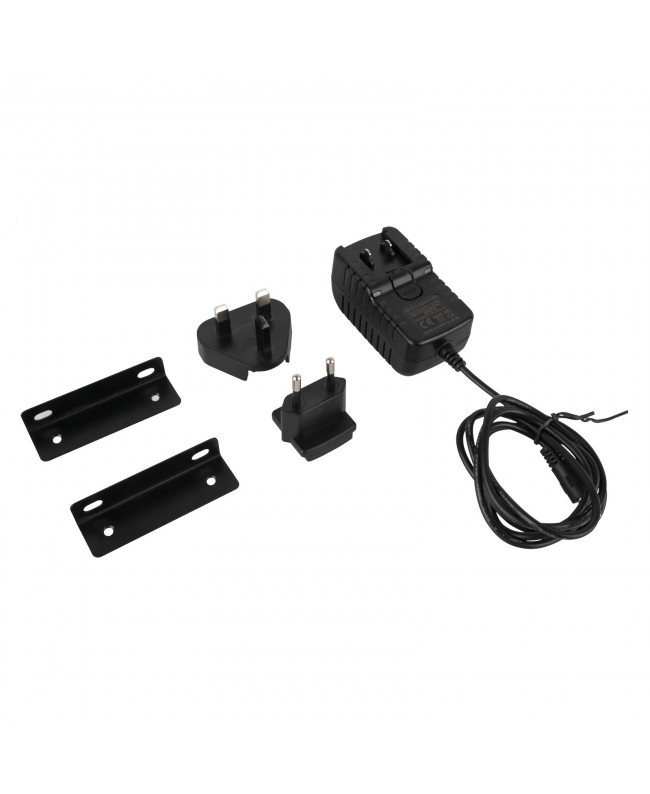

  • Included Accessories: Adapter / Mounting brackets
