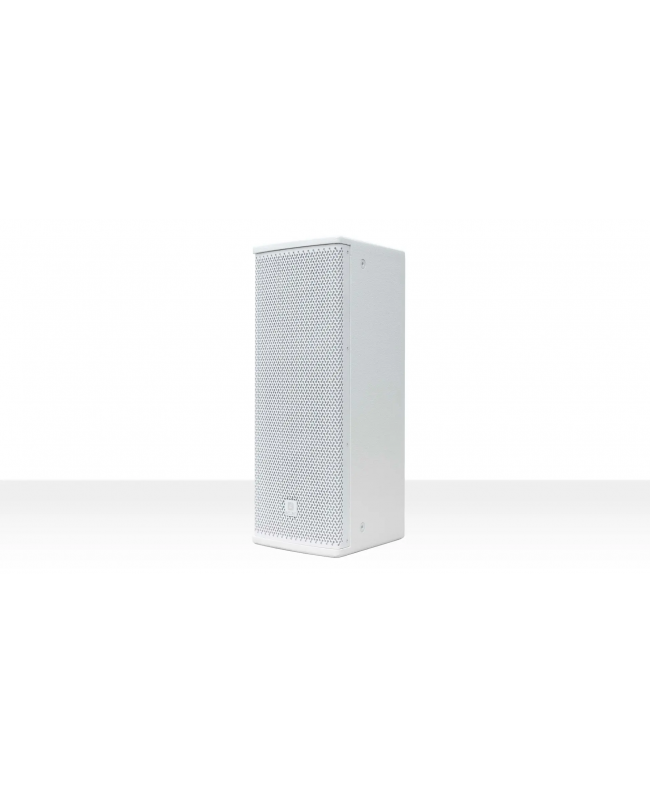

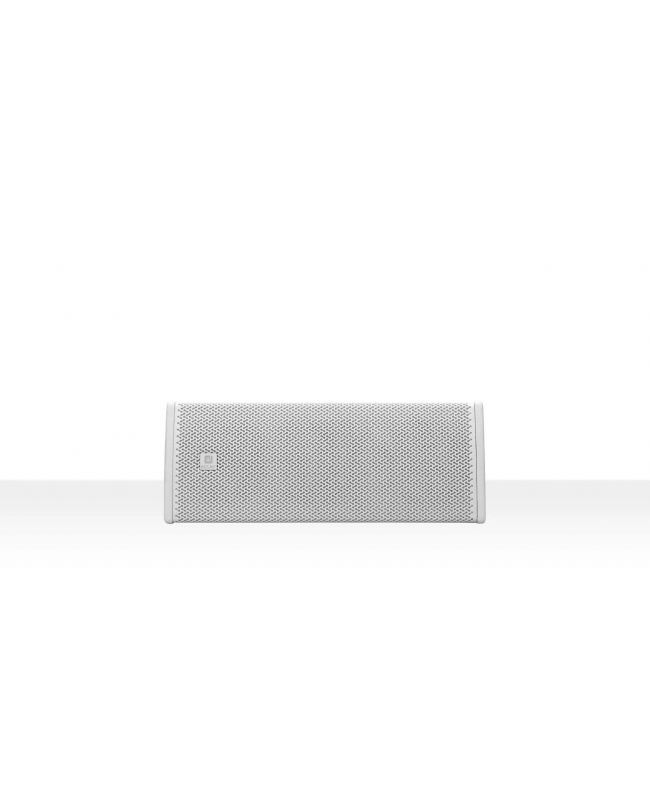

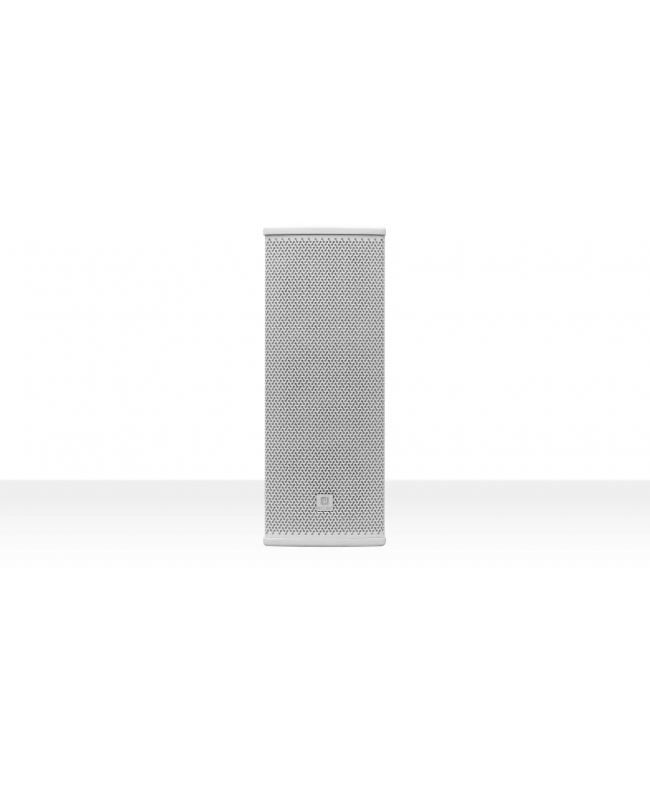

Ecler ARQIS 205iWH Wall Mount Speakers

Ecler ARQIS 205iWH

€379.00
Tax included

2-way acoustic speaker, 5.25” woofer, 140WRMS, made of wood

Out of Stock

Free shipping

Compare

wishlist

Ecler ARQIS 205iWH



ARQIS205i is a 2-way wooden loudspeaker cabinet with a compact format, stylish aesthetics, excellent sound quality and long-term reliability, featuring 140 WRMS @ 8Ω, 2 x 5" woofer and 1" HF Compression Driver. Its "U" shape wall bracket (included) allows for tilt adjustment. ARQISi SERIES has been specifically designed to fulfil permanent installation requirements where a perfect balance between sound performance and architectural/interior's design matching is a must.

Features

  • Full range, 2-way architectural loudspeaker
  • 140 WRMS @ 8 ohm
  • 2 x 5" low frequency woofer
  • 1" high frequency compression driver (rotatable)
  • Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
  • "U" Shape wall bracket included, allowing for tilt adjustment
  • 4x M6 & 12 x M8 cabinet flying points
  • Metal safety sling included, to avoid drops in case of accidentaldetachment from the wall surface
  • Available in black (RAL 9005) and white (RAL 9003) colour
  • EASE files available

Applications

  • Retail
  • Education
  • Corporate
  • Leisure
  • Sports & Wellness
  • Hospitality

Specs

SYSTEM

  • Effective Freq. Range 78 Hz-20 kHz
  • Coverage angle / Dispersion 150°x40° (HxV)
  • Power handling 140 W RMS / 560 W Peak
  • Sensitivity 90 dB (1W/1m)
  • Maximum SPL 111 dB continuous / 117 dB peak
  • Recommended amplifier power 280 W RMS

TRANSDUCERS

  • Ways 2-ways full range
  • Low frequency driver 2 x 5" woofer
  • High frequency driver 1" rotatable compression driver
  • Nominal impedance 8Ω

FILTERS

  • Crossover filter 2,3 kHz
  • Recommended High-Pass protection filter 80 Hz with minimum 12 dB / octave filter

PHYSICAL

  • Connection type 1 x Euroblock & 1 x SPEAKON®
  • Installation options Surface, wall, desktop
  • Environmental IP31
  • Enclosure material MDF
  • Grille material Steel
  • Grille fixing system Screw fixation
  • Pan and tilt wall-mount TBC
  • Flying points 4 x M6 & 12 x M8
  • Operating temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Operating humidity <85% HR
  • Storage temperature
  • Min: -10°C ; 14°F
  • Max: 40°C ; 104°F
  • Storage humidity <90% HR
  • Included accessories U Bracket / 5mm Allen key / 6mm Allen key
  • Finished colour White (RAL 9003) or Black (RAL 9005)
  • Dimensions 480 x 186 x 210 mm / 18.90 x 7.32 x 8.27 in. (WxHxD)
  • Weight 8,4 kg / 18.52 lb
  • Pieces per box 1 piece
  • Shipping dimensions 540 x 265 x 300 mm / 21.26 x 10.43 x 11.81 in. (WxHxD)
  • Shipping weight 9.5 kg / 20.94 lb

CARQIS205IW

Data sheet

Woofer inch
5,5"
Giorni di elaborazione
2
