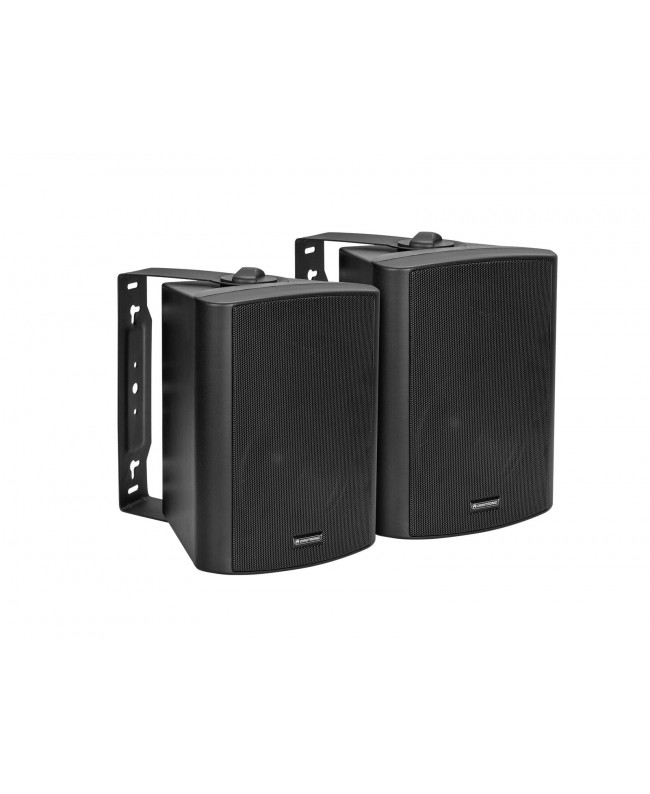

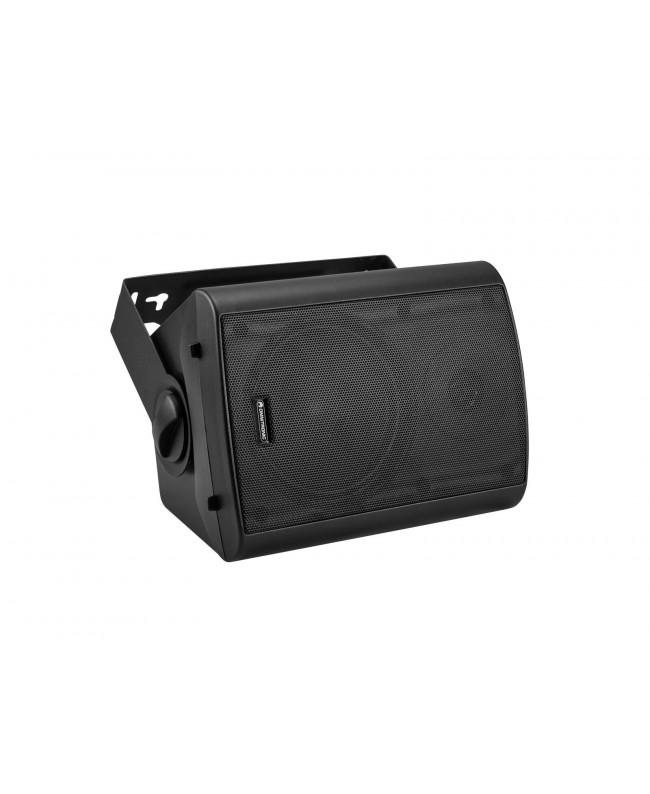

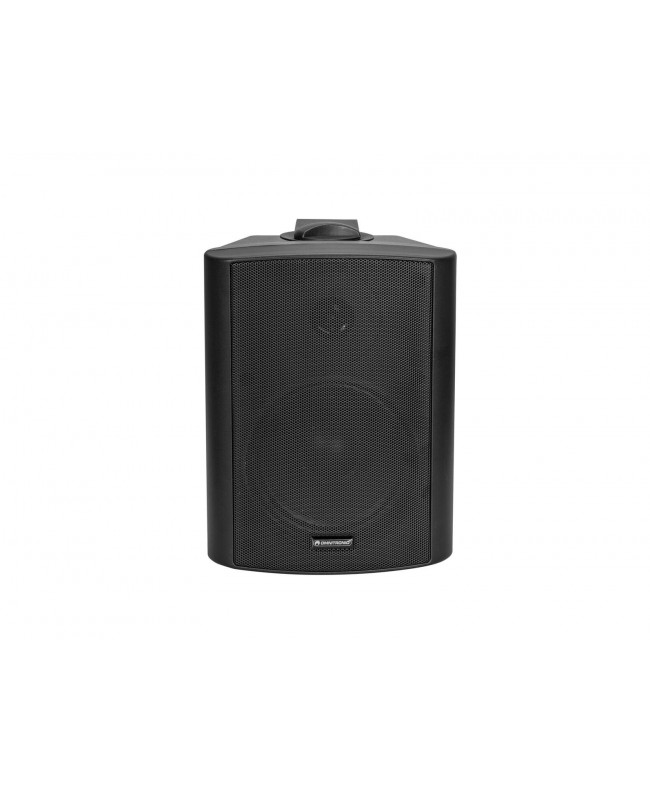

Omnitronic ALP-5A Active Speaker Set black

• Set of 2 consisting of an active and a passive speaker system
• Active speaker system with biamp amplifier anf connection for the passive speaker system
• Speakers with magnetic shielding
• Separate controls for volume, high and low frequencies
• Auto-standby function
• Stereo RCA input and 3.5 mm jack for connection the audio source
• Light-weight ABS plastic cabinet with metal grille
• Black metal grille
• For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms; shop fitting

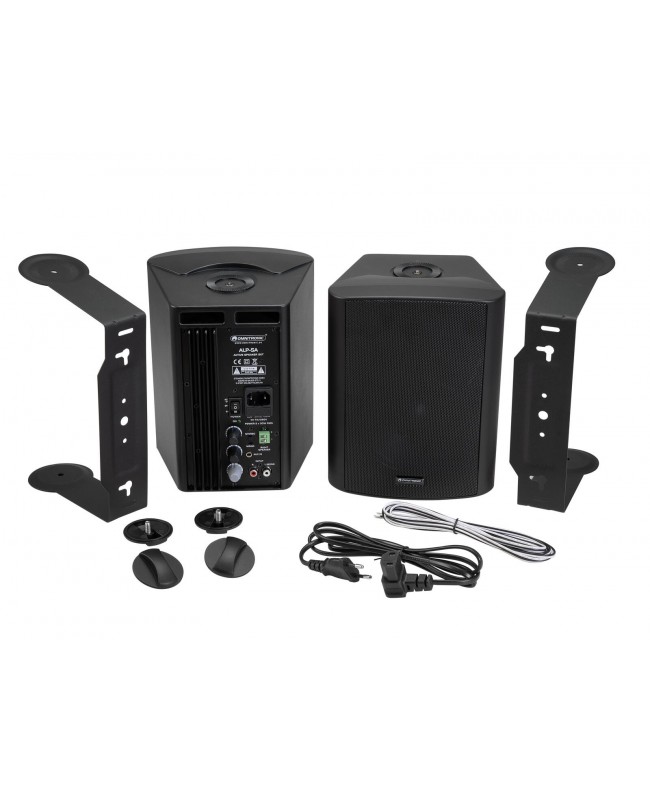

Scope of delivery

• 2 x mounting bracket
• 1 x speaker cable
• 1 x power cord
• 2 x top
• 4 x knurled screw
• 1 x user manual

• Power supply: 230 V AC, 50 Hz
• Power consumption: Max. 135 W
• IP classification: IP20
• Protection class: Protection class II
• Power connection: Mains input via IEC (M) mounting version 2-pin power supply cord with Euro plug
• Cable length: 3 m
• Device fuse: 5 x 20 mm, T 1 A fuse replaceable
• Power: Program: 2x 50W, Rated: 2x 30W RMS
• Frequency range: 100 - 20000 Hz
• Sensitivity: 88 dB (1W/1m)

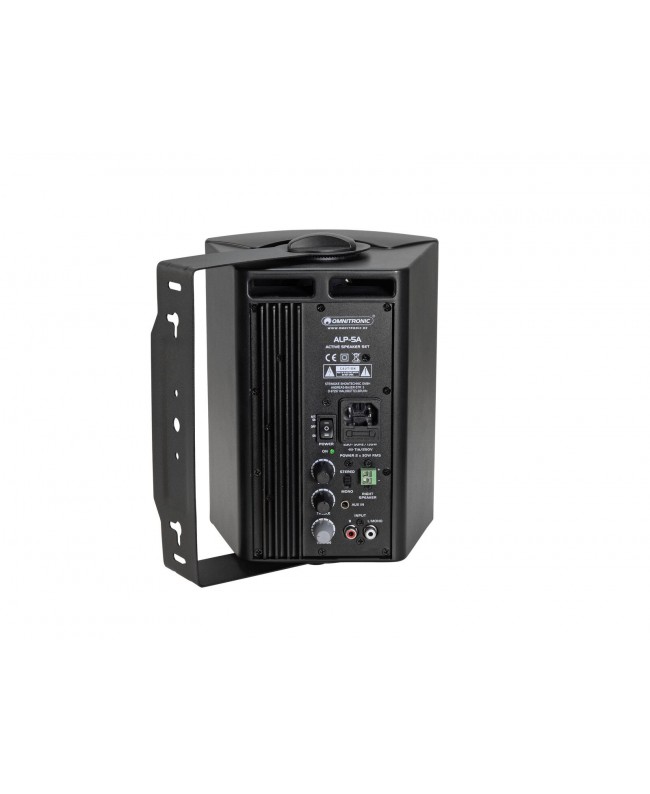

• Control elements: Power switch, stereo/mono switch, level control, tone control
• Status LED: Power
• Connections: Input: line via 1 x stereo RCA, Input: 3.5 mm jack (stereo)
• Equalizer: Master: 1 x 2-band tone control
• Speaker: Woofer 5.25, Tweeter 1
• Color: Black
• Dimensions: Width: 18 cm, Depth: 24 cm, Height: 16 cm
• Weight: 5.85 kg
