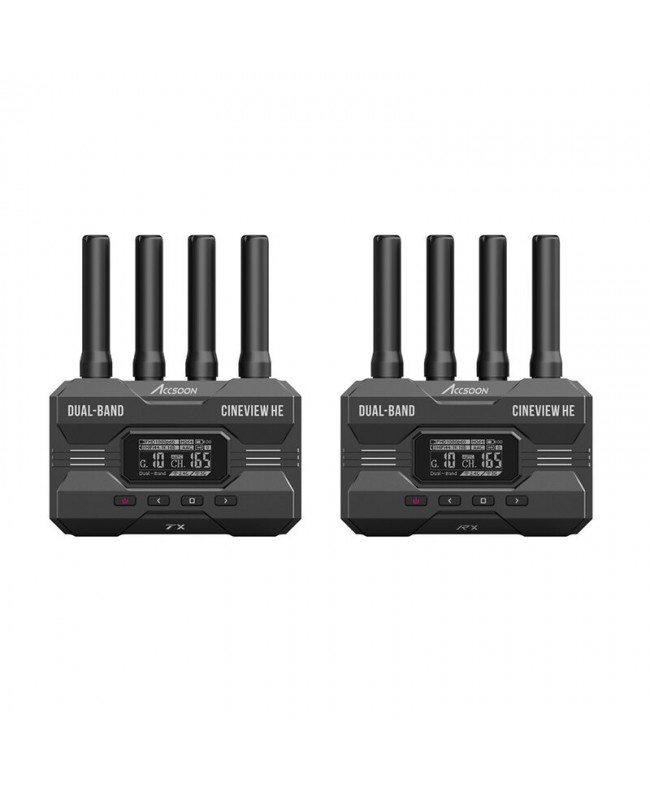

ACCSOON CineView HE (1 Transmitter + 1 Receiver)

Wireless system consisting of a Cine. View HE transmitter and receiver.

N.B. Batteries and power supplies are not included.

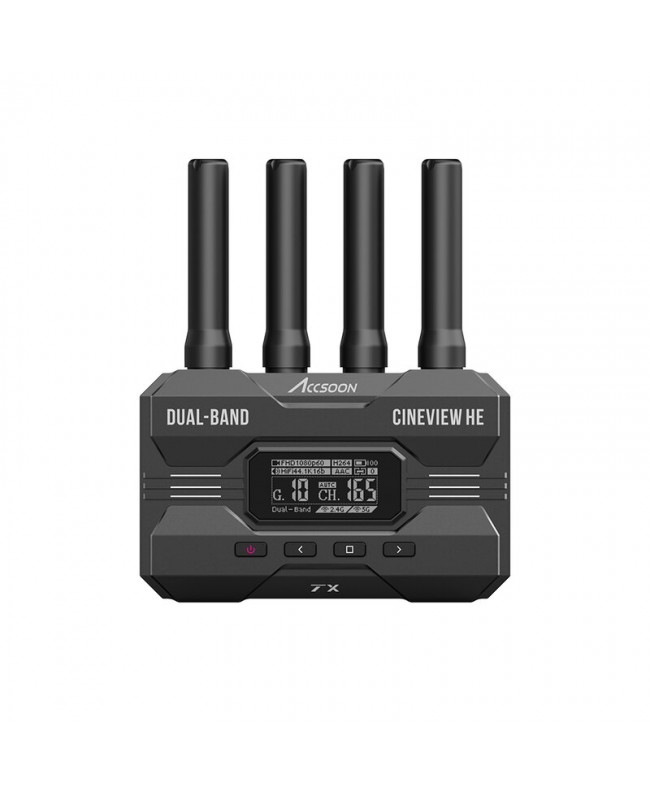

The Cine. View HE transmitter is a cutting-edge device designed to provide high-quality wireless video and audio transmission at 1080p 60 fps for clear and smooth images. It is virtually identical in appearance to the Cine. View SE, and takes on most of its features and some of the Cine. View 2 SDI model.

It uses a patented Dual Band technology that combines the 2.4 and 5 GHz frequency bands, ensuring a stable and reliable connection even in complex environments thanks to the 4 antennas it is equipped with. This transmitter is capable of covering considerable distances, over 350 m as the line of sight, maintaining a latency of less than 60 ms for (almost) real-time transmission.

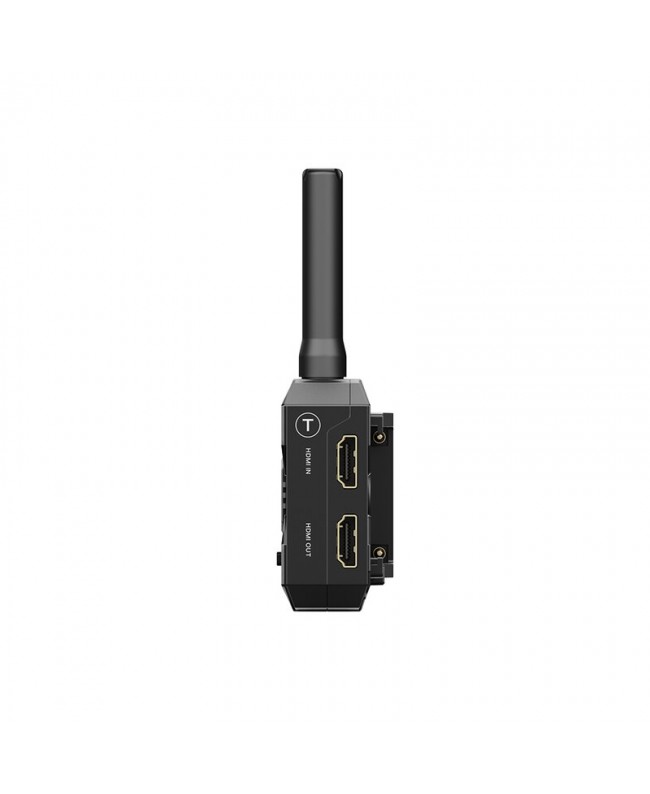

It has an HDMI input, but - unlike the Cine. View SE - no SDI and an HDMI loop output, like the Cine. View 2 SDI, which can be connected to an external monitor. In addition, the HDMI loop output has been updated to have zero latency. It can also be used with up to four devices simultaneously (4 RX / 3 RX and #43; 1 App / 2 RX and #43; 2 App / 1 RX and #43; 3 App / 4 App), including i. OS and Android smartphones and tablets, allowing for great operational flexibility.

Cine. View SE is compact and lightweight, weighing just 200 g without antennas thanks to a solid aerospace-grade aluminum body. It is designed for fanless operation for ultra-quiet operation, ideal for noise-sensitive recording environments. A practical 1.3 and #34; color OLED screen makes monitoring and configuring the device easy.

As for power, it supports several options, including NP-F batteries, DC power and USB-C, offering great flexibility in terms of use in the field. Technical specifications include support for various HDMI video formats and a typical power consumption of 4.5 W, making it energy efficient.

The compact size, the ability to operate in a wide temperature range (-10 to 40 °C) and the availability of a professional monitoring App for i. OS and Android (upgradable) that supports direct live streaming (RTMP), complete the picture of a highly performing and versatile device, ideal for professional video productions that require reliability and quality.

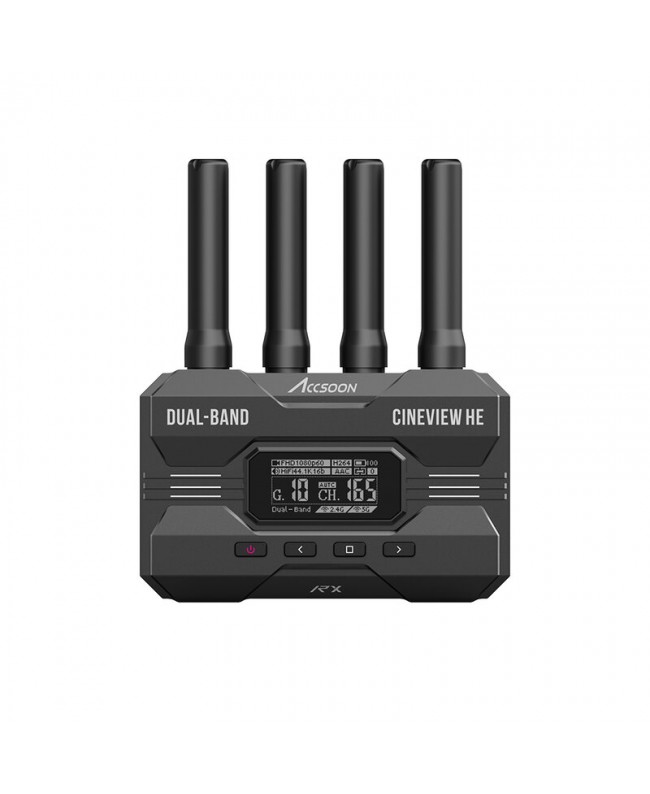

The Cine. View HE receiver is a cutting edge device designed to deliver high quality wireless video and audio reception at 1080p 60 fps for crisp, smooth images. It looks almost identical to the Cine. View SE, and shares most of the features with some of the Cine. View 2 SDI model.

It uses patented Dual Band technology that combines the 2.4 and 5 GHz frequency bands, ensuring a stable and reliable connection even in challenging environments thanks to its 4 antennas.

It features an HDMI output, but unlike the Cine. View SE, no SDI and a UVC (USB Video Class) output. From the receiver to your computer, you can use a USB-C cable to transfer the video to any 3rd party streaming platform on your computer for live streaming, such as OBS and You. Tube, etc. No additional video capture devices are needed, the new UVC functionality is all you need to live stream, anywhere, anytime.

Cine. View SE is compact and lightweight, weighing just 200 g without antennas thanks to a solid aerospace-grade aluminum body. It is designed for fanless operation for maximum silence, ideal for noise-sensitive recording environments. A convenient 1.3 and #34; color OLED screen makes it easy to monitor and configure the device.

As for power, it supports a variety of options, including NP-F batteries, DC power and USB-C, offering great flexibility in terms of use in the field. Technical specifications include support for various HDMI video output formats and a typical power consumption of 4.2 W, making it energy efficient.

The compact size, the ability to operate in a wide temperature range (-10 to 40 °C) and the availability of a professional monitoring App for i. OS and Android (upgradable), complete the picture of a high-performance and versatile device, ideal for professional video productions that require reliability and quality.

• Transmitter
• Receiver
