ACCSOON CineView HE Receiver Wireless AV Transmission
  • -27%
  • New

ACCSOON CineView HE Receiver


€237.00
€174.00 -27%
Tax included
Lowest price within the last 30 days: €174.00

Wireless AV receiver, 1080p 60 fps, less than 60 ms latency, HDMI output only + UVC, Dual Band patented technology


Out of Stock

Free shipping


wishlist

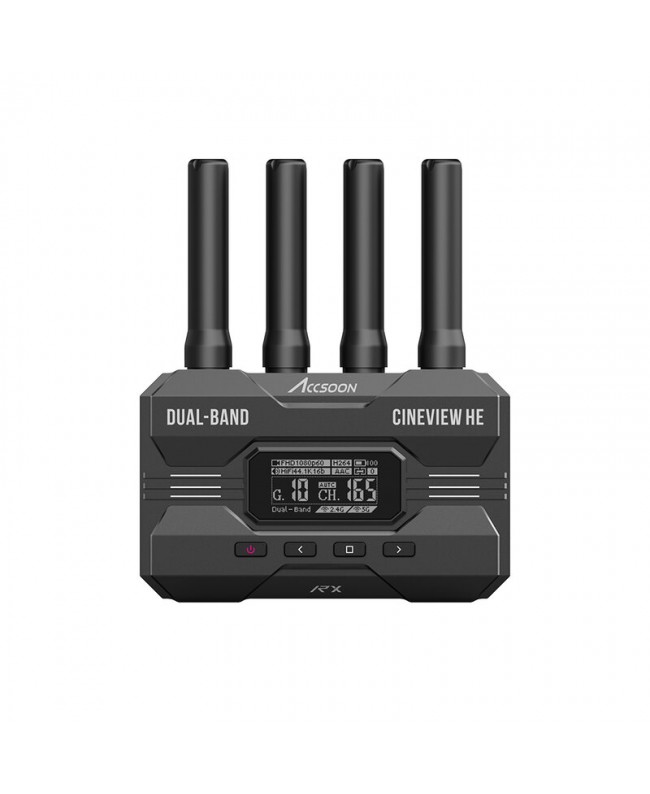

ACCSOON CineView HE Receiver



The Cine. View HE receiver is a cutting edge device designed to deliver high quality wireless video and audio reception at 1080p 60 fps for crisp, smooth images. It looks almost identical to the Cine. View SE, and shares most of the features with some of the Cine. View 2 SDI model.

It uses patented Dual Band technology that combines the 2.4 and 5 GHz frequency bands, ensuring a stable and reliable connection even in challenging environments thanks to its 4 antennas.

It features an HDMI output, but unlike the Cine. View SE, no SDI and a UVC (USB Video Class) output. From the receiver to your computer, you can use a USB-C cable to transfer the video to any 3rd party streaming platform on your computer for live streaming, such as OBS and You. Tube, etc. No additional video capture devices are needed, the new UVC functionality is all you need to live stream, anywhere, anytime.

Cine. View SE is compact and lightweight, weighing just 200g without antennas thanks to a solid aerospace-grade aluminum body. It is designed for fanless operation for maximum silence, ideal for noise-sensitive recording environments. A convenient 1.3 and #34; color OLED screen makes it easy to monitor and configure the device.

As for power, it supports a variety of options, including NP-F batteries, DC power and USB-C, offering great flexibility in terms of use in the field. Technical specifications include support for various HDMI video output formats and a typical power consumption of 4.2W, making it energy efficient.

The compact size, the ability to operate in a wide temperature range (-10 to 40 °C) and the availability of a professional monitoring App for i. OS and Android (upgradable), complete the picture of a high-performance and versatile device, ideal for professional video productions that require reliability and quality.

N.B. Battery and power supply are not included.

  • Technical characteristics
  • Video ouput: HDMI
  • HDMI ouput formats: 1080p at 24 / 25 / 30 / 50 / 60 fps
  • Audio: 44.1 kHz / 48 kHz 16 / 24 bit
  • Latency: 60 ms (camera latency not included)
  • USB-C power input: USB-C 5 VDC 3 A
  • DC port: 5.5 x 2.1 mm, center positive
  • DC voltage: 7.4 - 16.8 V (power supply not included)
  • Display: 1.3 OLED
  • Transmission range: 350 m (no obstacles, no interference)
  • Power consumption: 4.2 W (typical)
  • Operating environment temperature: -10 to 40 ℃
  • Dimensions: 105 x 66 x 32 mm (without antennas)
  • Weight: 200 g (without antennas)

ACS-WIT04-HE-RX
