Eurolite Set QuickDMX 1x transmitter + 4x Receiver
  • -24%
  • New

Eurolite Set QuickDMX 1x transmitter + 4x Receiver

€401.00
€306.00 -24%
Tax included
Lowest price within the last 30 days: €306.00

Wireless DMX transmitter including 4x compact wireless DMX receiver

Qty

In Stock

Delivery

Do You want Your order by Friday, 31/07/2026? Order within 9 hours and 28 minutes

Free shipping

Compare

wishlist

Eurolite Set QuickDMX 1x transmitter + 4x Receiver

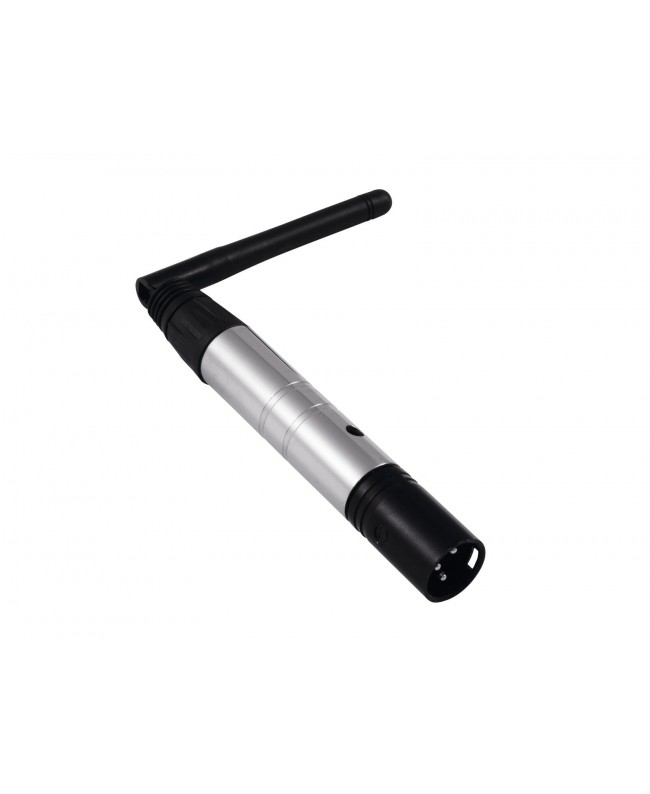

EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

  • User-friendly 3-pin XLR adapter (male) with swivel antenna
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • 1 to 512 QuickDMX receivers can be controlled by each transmitter
  • LED indication for functions
  • Transceiver, to be used as transmitter or receiver
  • Can transmit up to 512 DMX channels
  • Control via QuickDMX; DMX; plug and play
  • Operating range up to 400m
  • Up to 6 transmitters can be operated in parallel without interference

EUROLITE QuickDMX Wireless Receiver

Compact wireless DMX receiver 2.4 GHz

  • User-friendly 3-pin XLR adapter (female) with swivel antenna
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • 1 to 512 QuickDMX receivers can be controlled by each transmitter
  • LED indication for functions
  • Transceiver, to be used as transmitter or receiver
  • Can receive and process up to 512 DMX channels
  • Control via QuickDMX; plug and play
  • Operating range up to 400m
  • Up to 6 transmitters can be operated in parallel without interference


Scope of delivery

1 x EUROLITE QuickDMX Wireless Transmitter

  • 1 x device
  • 1 x user manual
  • 1 x declaration of conformity
  • 1 x external mains adapter
  • 1 x USB cable

4 x EUROLITE QuickDMX Wireless Receiver

  • 1 x device
  • 1 x user manual
  • 1 x declaration of conformity
  • 1 x external mains adapter
  • 1 x USB cable
  • Weight: 0.79 kg
  • Power supply: 100-240 V AC, 50/60 Hz, 5V DC 1000 mA
  • Power connection: Mains input via coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided)
  • DMX channels: Output 512
  • DMX input: 1 x 3-pin XLR (M)
  • Control: QuickDMX; DMX; plug and play
  • Range: Range up to 400m
  • Carrier frequency: 2.4 GHz
  • Parallel mode: Max. 6 transmitter
  • RF power output: 19 dBm
  • Modulation: GFSK
  • Color: Silver
  • Dimensions: Length: 21.2 cm, Diameter: Ø 1.8 cm
  • Weight: 0.15 kg
  • Power supply: 100-240 V AC, 50/60 Hz, 5V DC 1000 mA
  • Power connection: Mains input via coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided)
  • DMX channels: Input 512
  • DMX output: 3-pin XLR (F)
  • Control: QuickDMX; plug and play
  • Range: Range up to 400m
  • Carrier frequency: 2.4 GHz
  • Parallel mode: Max. 6 transmitter
  • RF power output: 19 dBm
  • Modulation: GFSK
  • Color: Silver
  • Dimensions: Length: 21.2 cm, Diameter: Ø 1.8 cm
  • Weight: 0.16 kg

20000646

Data sheet

Color
Silver
Giorni di elaborazione
4

Specific References

On sale
