Eurolite QuickDMX Wireless Transmitter/Receiver
  • -32%
  • New

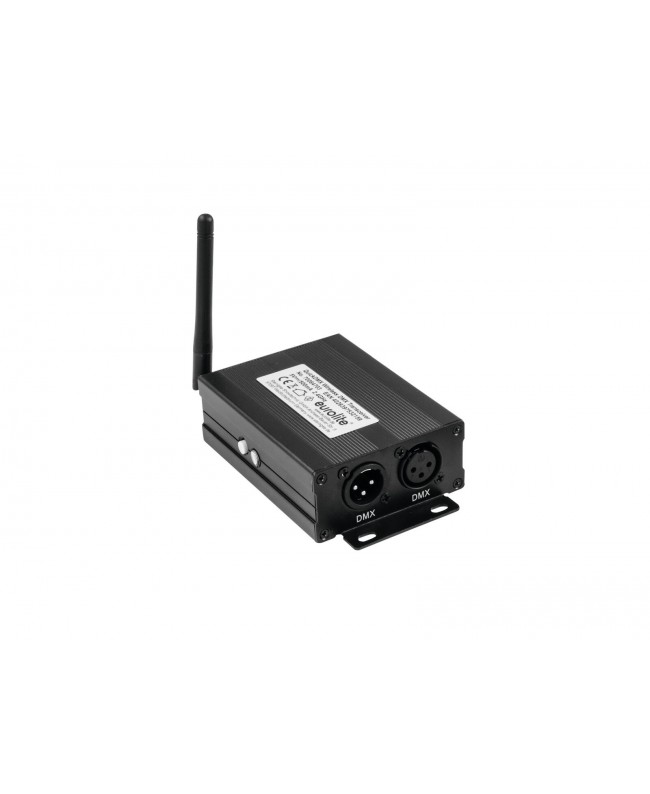

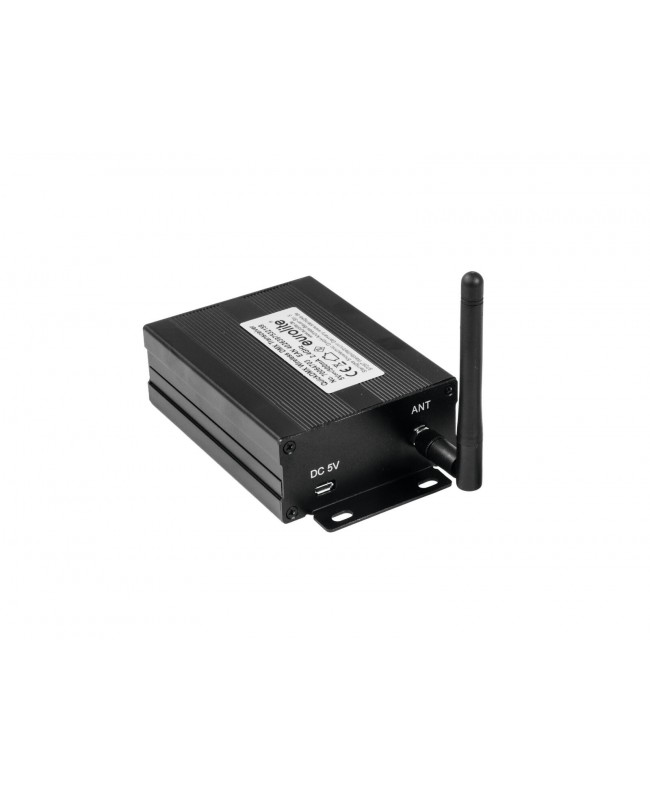

Eurolite QuickDMX Wireless Transmitter/Receiver

€116.00
€79.00 -32%
Tax included
Lowest price within the last 30 days: €79.00

Wireless DMX system 2.4 GHz

Qty

In Stock

Delivery

Do You want Your order by Friday, 31/07/2026? Order within 9 hours and 30 minutes

Compare

wishlist

Eurolite QuickDMX Wireless Transmitter/Receiver



  • Auto-switching transceiver
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • 1 to 512 QuickDMX receivers can be controlled by each transmitter
  • LED indication for functions
  • Can receive and process up to 512 DMX channels
  • Can transmit up to 512 DMX channels
  • Control via DMX; QuickDMX; plug and play
  • Operating range up to 400m
  • Up to 6 transmitters can be operated in parallel without interference
  • Power supply: 100-240 V AC, 50/60 Hz, 5V DC 500 mA
  • Power connection: Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided)
  • DMX channels: Input 512, Output 512
  • DMX input: 1 x 3-pin XLR (M) mounting version
  • DMX output: 1 x 3-pin XLR (F) mounting version
  • Control: DMX; QuickDMX; plug and play
  • Range: Range up to 400m
  • Carrier frequency: 2.4 GHz
  • Parallel mode: Max. 6 transmitter
  • RF power output: 19 dBm
  • Modulation: GFSK
  • Color: Black
  • Dimensions: Width: 21.2 cm, Depth: 10 cm, Height: 7.5 cm
  • Weight: 0.29 kg

Scope of delivery

  • 1 x device
  • 1 x user manual
  • 1 x external mains adapter
  • 1 x USB cable
  • 1 x antenna
  • 1 x declaration of conformity

70064703

Data sheet

Color
Black
