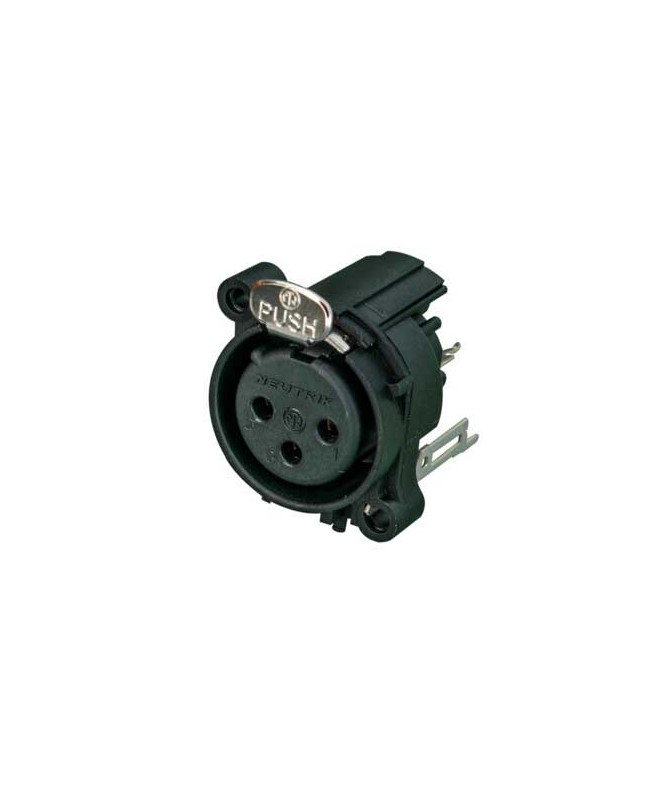

NEUTRIK NC3FAAV2 XLR Chassis Connectors

NEUTRIK NC3FAAV2


€1.80
Tax included

NC3FAAV2


Qty

In Stock

Delivery

Do You want Your order by Friday, 26/06/2026? Order within 1 hours and 29 minutes



wishlist

NEUTRIK NC3FAAV2



3-pin female XLR connector. AA series. Color: black, gold-plated contacts. Vertical mounting on board. Round body made of low-cost plastic. Grounding: separate ground contact connected to connector housing and front panel, no connection to pin 1. Tulip-type contact design with high contact pressure for maximum durability. Front panel cutout and PCB design 100% compatible with A-series. Safety latch fitted. Materials: polyamide housing. Environmental specifications: flammability UL 94 HB, standard IEC 61076-2-103, protection IP 40, temperature range -30 °C to +80 °C.


697177
