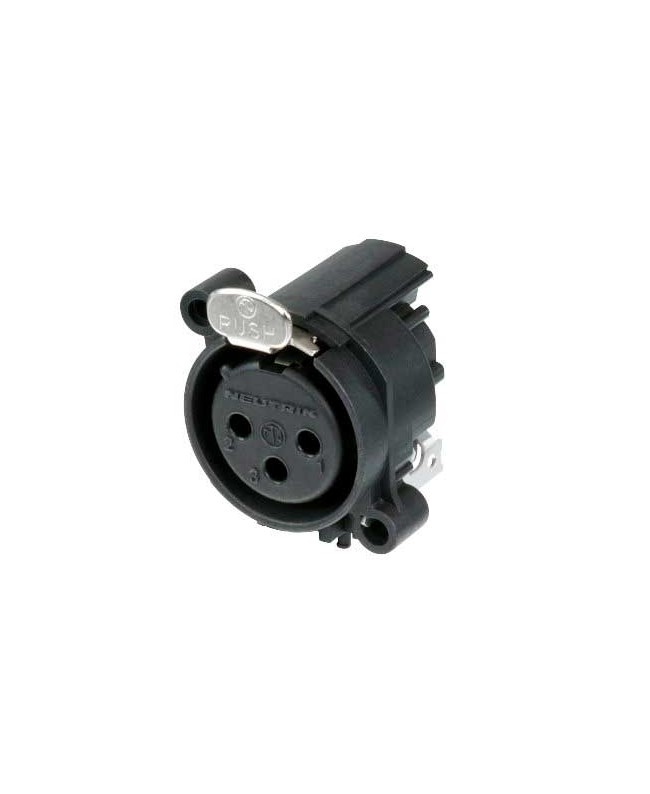

NEUTRIK NC3FAH1

3-pin female XLR connector. Series A. Color: black, gold-plated contacts. Horizontal mounting on board. Round body made of low-cost plastic. Ground: Pin 1 connected directly to front panel and connector housing, no separate ground contact. Smaller XLR sockets, higher packing density (23 mm centers). Tulip contact design with high contact pressure for maximum durability. Front panel cutout and PCB design 100% compatible with Series A. Mounted safety latch. Materials: polyamide housing. Environmental specifications: flammability UL 94 V-0, IEC 61076-2-103 standard, IP 40 protection, temperature range -30 °C to +80 °C.
