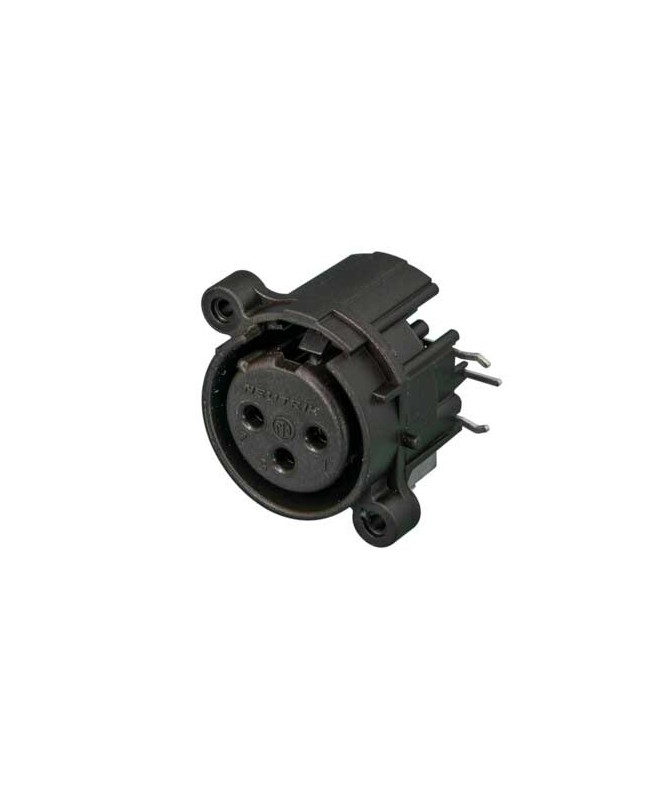

NEUTRIK NC3FAHR1-0

3-pin female XLR connector. Series A. Color: black, gold-plated contacts. Right-hand PCB mounting. Round body made of cheaper plastic. Ground: Pin 1 connected directly to front panel and connector housing, no separate ground contact. Smaller XLR sockets, higher packing density (23 mm centers). Tulip contact design with high contact pressure for maximum durability. Front panel cutout and PCB design 100% compatible with the A-Series. Integrates a retention spring instead of a latch. Materials: polyamide housing. Environmental specifications: flammability UL 94 V-0, IEC 61076-2-103 standard, IP 40 protection, temperature range -30 °C to +80 °C.
