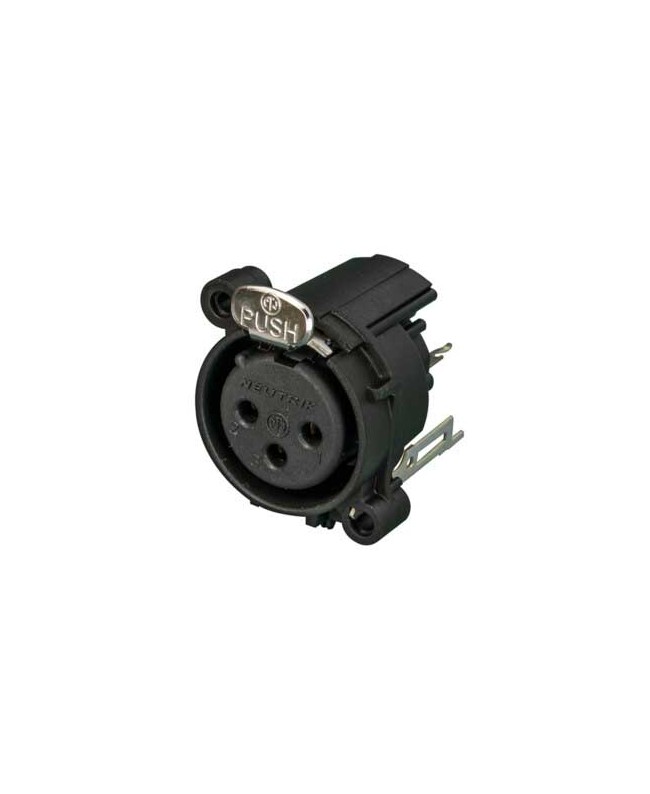

NEUTRIK NC3FAV2

3-pin female XLR connector. Series A. Color: black, gold-plated contacts. Vertical mounting on board. Round body made of low-cost plastic. Grounding: separate ground contact connected to connector housing and front panel, no connection to pin 1. Smaller XLR sockets, higher packing density (23 mm center to center). Tulip contact design with high contact pressure for maximum durability. Front panel cutout and 100% A-series compatible board design. Safety latch fitted. Materials: polyamide housing. Environmental specifications: flammability UL 94 V-0, IEC 61076-2-103 standard, protection IP 40, temperature range -30 °C to +80 °C.
